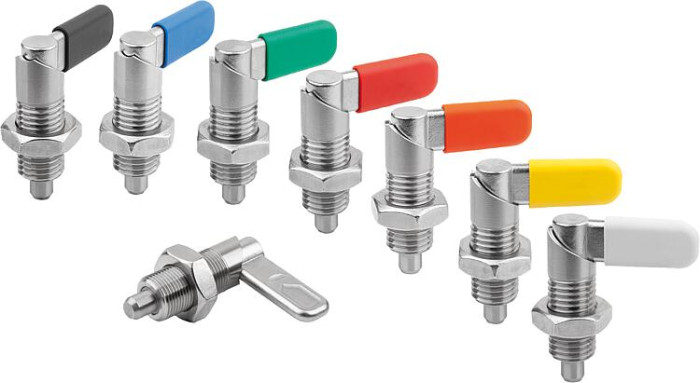

Aretační čepy ovládané páčkou nerezové bez nákružku, hladké
Popis produktu
| Kód: | 03099-11 |
|---|---|
| Výrobce: | norelem |
| Ceny: | jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže. |
| Termín dodání: | běžně cca 7 až 10 dnů od objednání, v závislosti na množství a aktuálních zásobách. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Ke stažení
Datový list 03099–11 Aretační čepy ovládané páčkou nerezové bez nákružku, hladké
Detail zavřít
| Objednací kód | Základní cena bez DPH | Koncová cena s DPH | Objednat | CAD | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03099-11-1040410 | 407,30 Kč | 492,83 Kč | A | – | 4 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1 | 8 | 14 | ||
| 03099-11-1040510 | 407,30 Kč | 492,83 Kč | A | – | 5 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.3 | 8 | 14 | ||
| 03099-11-1040512 | 444,70 Kč | 538,09 Kč | A | – | 5 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.3 | 8 | 15 | ||
| 03099-11-1040610 | 407,30 Kč | 492,83 Kč | A | – | 6 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.8 | 8 | 14 | ||
| 03099-11-1040612 | 444,70 Kč | 538,09 Kč | A | – | 6 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.8 | 8 | 15 | ||
| 03099-11-1040616 | 489,20 Kč | 591,93 Kč | A | – | 6 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 1.8 | 15 | 35 | ||
| 03099-11-1040812 | 444,70 Kč | 538,09 Kč | A | – | 8 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 2.3 | 8 | 15 | ||
| 03099-11-1040816 | 489,20 Kč | 591,93 Kč | A | – | 8 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.3 | 15 | 35 | ||
| 03099-11-1040820 | 580,50 Kč | 702,41 Kč | A | – | 8 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.3 | 20 | 60 | ||
| 03099-11-1041016 | 489,20 Kč | 591,93 Kč | A | – | 10 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.8 | 15 | 35 | ||
| 03099-11-1041020 | 580,50 Kč | 702,41 Kč | A | – | 10 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.8 | 20 | 60 | ||
| 03099-11-1041220 | 580,50 Kč | 702,41 Kč | A | – | 12 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 3 | 20 | 60 | ||
| 03099-11-1050410 | 416,80 Kč | 504,33 Kč | B | – | 4 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1 | 8 | 14 | ||
| 03099-11-1050510 | 416,80 Kč | 504,33 Kč | B | – | 5 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1.3 | 8 | 14 | ||
| 03099-11-1050512 | 459,40 Kč | 555,87 Kč | B | – | 5 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 1.3 | 8 | 15 | ||
| Objednací kód | Základní cena bez DPH | Koncová cena s DPH | Objednat | CAD | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N |
| 03099-11-1050610 | 416,80 Kč | 504,33 Kč | B | – | 6 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1.8 | 8 | 14 | ||
| 03099-11-1050612 | 459,40 Kč | 555,87 Kč | B | – | 6 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 1.8 | 8 | 15 | ||
| 03099-11-1050616 | 516,00 Kč | 624,36 Kč | B | – | 6 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 1.8 | 15 | 35 | ||
| 03099-11-1050812 | 459,40 Kč | 555,87 Kč | B | – | 8 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 2.3 | 8 | 15 | ||
| 03099-11-1050816 | 516,00 Kč | 624,36 Kč | B | – | 8 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 2.3 | 15 | 35 | ||
| 03099-11-1050820 | 641,10 Kč | 775,73 Kč | B | – | 8 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 2.3 | 20 | 60 | ||
| 03099-11-1051016 | 516,00 Kč | 624,36 Kč | B | – | 10 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 2.8 | 15 | 35 | ||
| 03099-11-1051020 | 641,10 Kč | 775,73 Kč | B | – | 10 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 2.8 | 20 | 60 | ||
| 03099-11-1051220 | 641,10 Kč | 775,73 Kč | B | – | 12 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 3 | 20 | 60 | ||

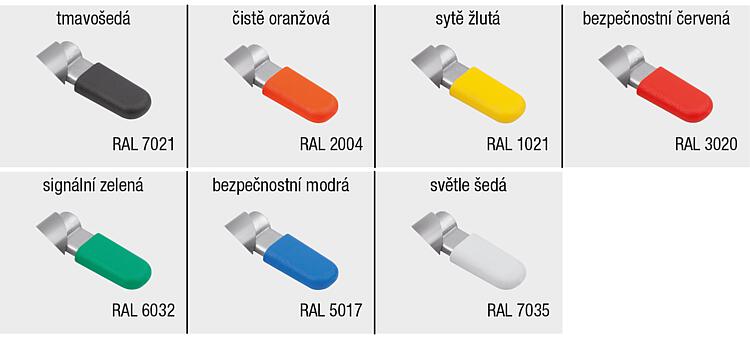

| 03099-11-1060410 | 425,90 Kč | 515,34 Kč | C | tmavošedá RAL 7021 | 4 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1 | 8 | 14 | ||
| 03099-11-1060510 | 425,90 Kč | 515,34 Kč | C | tmavošedá RAL 7021 | 5 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1.3 | 8 | 14 | ||
| 03099-11-1060512 | 462,70 Kč | 559,87 Kč | C | tmavošedá RAL 7021 | 5 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 1.3 | 8 | 15 | ||
| 03099-11-1060610 | 425,90 Kč | 515,34 Kč | C | tmavošedá RAL 7021 | 6 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1.8 | 8 | 14 | ||
| 03099-11-1060612 | 462,70 Kč | 559,87 Kč | C | tmavošedá RAL 7021 | 6 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 1.8 | 8 | 15 | ||
| 03099-11-1060616 | 507,50 Kč | 614,08 Kč | C | tmavošedá RAL 7021 | 6 | M16 | 16 | 62.3 | 41.5 | 32 | 16.6 | 7 | 10 | – | 1.8 | 15 | 35 | ||
| Objednací kód | Základní cena bez DPH | Koncová cena s DPH | Objednat | CAD | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N |
| 03099-11-1060812 | 462,70 Kč | 559,87 Kč | C | tmavošedá RAL 7021 | 8 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 2.3 | 8 | 15 | ||
| 03099-11-1060816 | 507,50 Kč | 614,08 Kč | C | tmavošedá RAL 7021 | 8 | M16 | 16 | 62.3 | 41.5 | 32 | 16.6 | 7 | 10 | – | 2.3 | 15 | 35 | ||
| 03099-11-1060820 | 599,00 Kč | 724,79 Kč | C | tmavošedá RAL 7021 | 8 | M20 | 20 | 72.3 | 51.3 | 35 | 20.5 | 8.5 | 12 | – | 2.3 | 20 | 60 | ||
| 03099-11-1061016 | 507,50 Kč | 614,08 Kč | C | tmavošedá RAL 7021 | 10 | M16 | 16 | 62.3 | 41.5 | 32 | 16.6 | 7 | 10 | – | 2.8 | 15 | 35 | ||
| 03099-11-1061020 | 599,00 Kč | 724,79 Kč | C | tmavošedá RAL 7021 | 10 | M20 | 20 | 72.3 | 51.3 | 35 | 20.5 | 8.5 | 12 | – | 2.8 | 20 | 60 | ||
| 03099-11-1061220 | 599,00 Kč | 724,79 Kč | C | tmavošedá RAL 7021 | 12 | M20 | 20 | 72.3 | 51.3 | 35 | 20.5 | 8.5 | 12 | – | 3 | 20 | 60 | ||
| 03099-11-1070410 | 435,40 Kč | 526,83 Kč | D | tmavošedá RAL 7021 | 4 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | 17 | 1 | 8 | 14 | ||
| 03099-11-1070510 | 435,40 Kč | 526,83 Kč | D | tmavošedá RAL 7021 | 5 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | 17 | 1.3 | 8 | 14 | ||
| 03099-11-1070512 | 478,00 Kč | 578,38 Kč | D | tmavošedá RAL 7021 | 5 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | 19 | 1.3 | 8 | 15 | ||
| 03099-11-1070610 | 435,40 Kč | 526,83 Kč | D | tmavošedá RAL 7021 | 6 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | 17 | 1.8 | 8 | 14 | ||
| 03099-11-1070612 | 478,00 Kč | 578,38 Kč | D | tmavošedá RAL 7021 | 6 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | 19 | 1.8 | 8 | 15 | ||
| 03099-11-1070616 | 534,30 Kč | 646,50 Kč | D | tmavošedá RAL 7021 | 6 | M16 | 16 | 62.3 | 41.5 | 32 | 16.6 | 7 | 10 | 24 | 1.8 | 15 | 35 | ||
| 03099-11-1070812 | 478,00 Kč | 578,38 Kč | D | tmavošedá RAL 7021 | 8 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | 19 | 2.3 | 8 | 15 | ||
| 03099-11-1070816 | 534,30 Kč | 646,50 Kč | D | tmavošedá RAL 7021 | 8 | M16 | 16 | 62.3 | 41.5 | 32 | 16.6 | 7 | 10 | 24 | 2.3 | 15 | 35 | ||
| 03099-11-1070820 | 659,70 Kč | 798,24 Kč | D | tmavošedá RAL 7021 | 8 | M20 | 20 | 72.3 | 51.3 | 35 | 20.5 | 8.5 | 12 | 30 | 2.3 | 20 | 60 | ||
| Objednací kód | Základní cena bez DPH | Koncová cena s DPH | Objednat | CAD | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N |
| 03099-11-1071016 | 534,30 Kč | 646,50 Kč | D | tmavošedá RAL 7021 | 10 | M16 | 16 | 62.3 | 41.5 | 32 | 16.6 | 7 | 10 | 24 | 2.8 | 15 | 35 | ||
| 03099-11-1071020 | 659,70 Kč | 798,24 Kč | D | tmavošedá RAL 7021 | 10 | M20 | 20 | 72.3 | 51.3 | 35 | 20.5 | 8.5 | 12 | 30 | 2.8 | 20 | 60 | ||
| 03099-11-1071220 | 659,70 Kč | 798,24 Kč | D | tmavošedá RAL 7021 | 12 | M20 | 20 | 72.3 | 51.3 | 35 | 20.5 | 8.5 | 12 | 30 | 3 | 20 | 60 | ||
| 03099-11-10404101 | 407,30 Kč | 492,83 Kč | A | – | 4 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1 | 8 | 14 | ||
| 03099-11-10405101 | 407,30 Kč | 492,83 Kč | A | – | 5 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.3 | 8 | 14 | ||
| 03099-11-10405121 | 444,70 Kč | 538,09 Kč | A | – | 5 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.3 | 8 | 15 | ||
| 03099-11-10406101 | 407,30 Kč | 492,83 Kč | A | – | 6 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.8 | 8 | 14 | ||
| 03099-11-10406121 | 444,70 Kč | 538,09 Kč | A | – | 6 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.8 | 8 | 15 | ||
| 03099-11-10406161 | 489,20 Kč | 591,93 Kč | A | – | 6 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 1.8 | 15 | 35 | ||
| 03099-11-10408121 | 444,70 Kč | 538,09 Kč | A | – | 8 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 2.3 | 8 | 15 | ||
| 03099-11-10408161 | 489,20 Kč | 591,93 Kč | A | – | 8 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.3 | 15 | 35 | ||
| 03099-11-10408201 | 580,50 Kč | 702,41 Kč | A | – | 8 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.3 | 20 | 60 | ||
| 03099-11-10410161 | 489,20 Kč | 591,93 Kč | A | – | 10 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.8 | 15 | 35 | ||
| 03099-11-10410201 | 580,50 Kč | 702,41 Kč | A | – | 10 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.8 | 20 | 60 | ||
| 03099-11-10412201 | 580,50 Kč | 702,41 Kč | A | – | 12 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 3 | 20 | 60 | ||
| Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku. | |||||||||||||||||||
