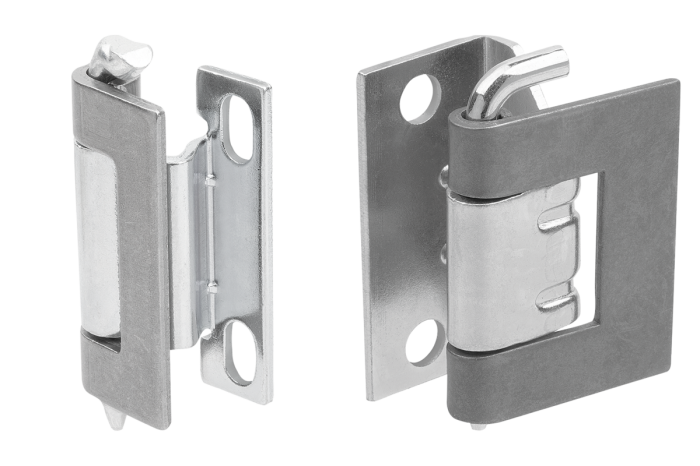

Skryté závěsy, ocel nebo nerezová ocel, zkosení do 24 mm
Popis produktu
| Kód: | 27878-06 |
|---|---|
| Výrobce: | norelem |
| Ceny: | jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže. |
| Termín dodání: | běžně cca 3–4 pracovní dny od objednání, v závislosti na množství a aktuálních zásobách v centrálním skladu. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
Ke stažení
Datový list norelem 27878–06 Skryté závěsy, ocel nebo nerezová ocel, zkosení do 24 mm
Detail zavřít

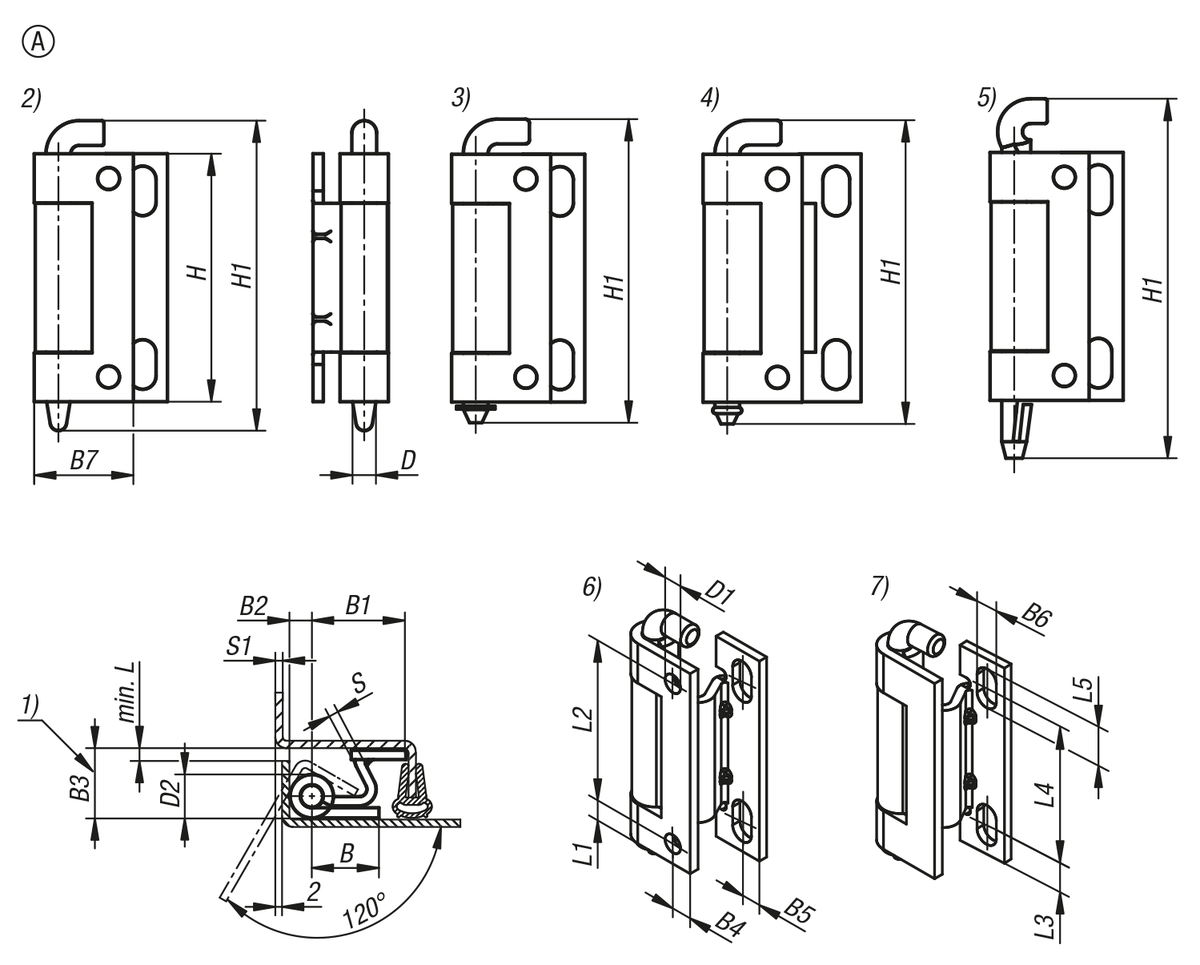

| Objednací kód | Základní cena bez DPH | Koncová cena s DPH | Objednat | CAD | Typ | Hlavní materiál | Druh upevnění dveřní části | Provedení | Materiál čepu | B | B1 | B2 | B3 | B4 | B5 | B6 | B7 | D | D1 | D2 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27878-06-0112118 | na dotaz | na dotaz | A | steel | screw on | without slot | steel | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 2.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0112124 | na dotaz | na dotaz | A | steel | screw on | without slot | steel | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 8.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0113118 | na dotaz | na dotaz | A | steel | screw on | mit Nut inkl. Sicherungsscheibe | steel | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 2.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0113124 | na dotaz | na dotaz | A | steel | screw on | mit Nut inkl. Sicherungsscheibe | steel | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 8.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0114118 | na dotaz | na dotaz | A | steel | screw on | mit Nut inkl. O-Ring | steel | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 2.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0114124 | na dotaz | na dotaz | A | steel | screw on | mit Nut inkl. O-Ring | steel | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 8.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0122118 | na dotaz | na dotaz | A | steel | — | without slot | steel | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 2.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0122124 | na dotaz | na dotaz | A | steel | — | without slot | steel | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 8.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0123118 | na dotaz | na dotaz | A | steel | — | mit Nut inkl. Sicherungsscheibe | steel | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 2.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0123124 | na dotaz | na dotaz | A | steel | — | mit Nut inkl. Sicherungsscheibe | steel | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 8.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0124118 | na dotaz | na dotaz | A | steel | — | mit Nut inkl. O-Ring | steel | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 2.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0124124 | na dotaz | na dotaz | A | steel | — | mit Nut inkl. O-Ring | steel | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 8.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-0225123 | na dotaz | na dotaz | B | steel | — | lose | steel | 23 | 16.7 | 4.3 | 23 | 35 | 10 | 14 | — | 7 | M6 | 6.5 | 51 | 60.2 | — | 38 | 54 | — | — | — | — | — | ||
| 27878-06-0325123 | na dotaz | na dotaz | C | steel | — | lose | steel | 23 | 16.7 | 4.3 | 23 | — | 10 | 14 | — | 7 | M6 | 6.5 | 51 | 60.2 | 14.5 | 38 | 54 | — | — | — | — | — | ||
| 27878-06-1112218 | na dotaz | na dotaz | A | stainless steel A2 | screw on | without slot | stainless steel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 2.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| Objednací kód | Základní cena bez DPH | Koncová cena s DPH | Objednat | CAD | Typ | Hlavní materiál | Druh upevnění dveřní části | Provedení | Materiál čepu | B | B1 | B2 | B3 | B4 | B5 | B6 | B7 | D | D1 | D2 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | S | S1 |
| 27878-06-1112224 | na dotaz | na dotaz | A | stainless steel A2 | screw on | without slot | stainless steel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 8.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1112418 | na dotaz | na dotaz | A | stainless steel A2 | screw on | without slot | POM | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 87 | 2.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1113224 | na dotaz | na dotaz | A | stainless steel A2 | screw on | mit Nut inkl. Sicherungsscheibe | stainless steel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 8.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1113318 | na dotaz | na dotaz | A | stainless steel A2 | screw on | mit Nut inkl. Sicherungsscheibe | Stainless steel 1.4301 | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 2.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1114218 | na dotaz | na dotaz | A | stainless steel A2 | screw on | mit Nut inkl. O-Ring | stainless steel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 2.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1114224 | na dotaz | na dotaz | A | stainless steel A2 | screw on | mit Nut inkl. O-Ring | stainless steel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 8.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1116424 | na dotaz | na dotaz | A | stainless steel A2 | screw on | self-locking | POM | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 87 | 8.5 | 6 | 48 | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1122218 | na dotaz | na dotaz | A | stainless steel A2 | — | without slot | stainless steel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 2.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1122224 | na dotaz | na dotaz | A | stainless steel A2 | — | without slot | stainless steel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 8.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1122418 | na dotaz | na dotaz | A | stainless steel A2 | — | without slot | POM | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 87 | 2.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1123224 | na dotaz | na dotaz | A | stainless steel A2 | — | mit Nut inkl. Sicherungsscheibe | stainless steel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 8.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1123318 | na dotaz | na dotaz | A | stainless steel A2 | — | mit Nut inkl. Sicherungsscheibe | stainless steel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 2.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1124218 | na dotaz | na dotaz | A | stainless steel A2 | — | mit Nut inkl. O-Ring | stainless steel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 2.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1124224 | na dotaz | na dotaz | A | stainless steel A2 | — | mit Nut inkl. O-Ring | stainless steel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 8.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| 27878-06-1126424 | na dotaz | na dotaz | A | stainless steel A2 | — | self-locking | POM | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 87 | 8.5 | — | — | 9 | 42 | 12 | 2.5 | 2 | ||
| Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku. | ||||||||||||||||||||||||||||||
