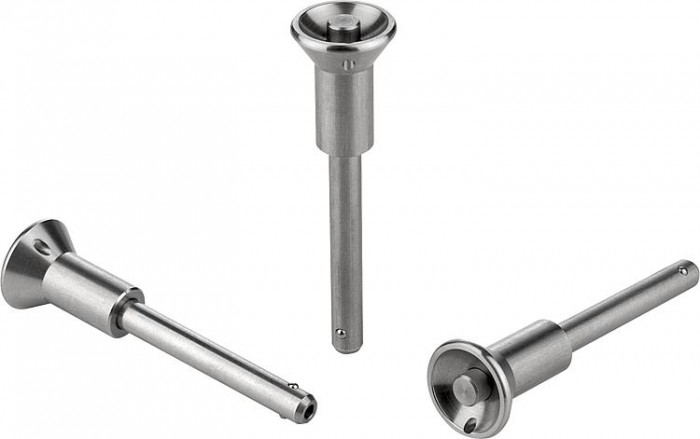

Fixačné čapy s guličkou, s úchytkou hríbovitého tvaru nerezové, samoistiace
Popis produktu
| Kód: | K0791 |
|---|---|
| Výrobca: | Kipp |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Na stiahnutie
Přehrát video
Datový list K0791 Fixační čepy s kuličkou, s úchytkou hřibovitého tvaru nerezové, samojistící
Detail zavřít
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0791.01905010 | 18,63 € | 22,54 € | 19 | 5mm | 5,5mm | 11 | 10 | 5,9 | 25 | 5 | 15 | ||
| K0791.01905015 | 18,63 € | 22,54 € | 19 | 5mm | 5,5mm | 11 | 15 | 5,9 | 25 | 5 | 15 | ||
| K0791.01905020 | 18,63 € | 22,54 € | 19 | 5mm | 5,5mm | 11 | 20 | 5,9 | 25 | 5 | 15 | ||
| K0791.01905025 | 18,63 € | 22,54 € | 19 | 5mm | 5,5mm | 11 | 25 | 5,9 | 25 | 5 | 15 | ||
| K0791.01905030 | 19,94 € | 24,13 € | 19 | 5mm | 5,5mm | 11 | 30 | 5,9 | 25 | 5 | 15 | ||
| K0791.01906010 | 18,85 € | 22,81 € | 19 | 6mm | 6,85mm | 11 | 10 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906015 | 18,85 € | 22,81 € | 19 | 6mm | 6,85mm | 11 | 15 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906020 | 18,85 € | 22,81 € | 19 | 6mm | 6,85mm | 11 | 20 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906025 | 18,85 € | 22,81 € | 19 | 6mm | 6,85mm | 11 | 25 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906030 | 20,01 € | 24,21 € | 19 | 6mm | 6,85mm | 11 | 30 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906035 | 20,01 € | 24,21 € | 19 | 6mm | 6,85mm | 11 | 35 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906040 | 20,01 € | 24,21 € | 19 | 6mm | 6,85mm | 11 | 40 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906045 | 20,01 € | 24,21 € | 19 | 6mm | 6,85mm | 11 | 45 | 6,8 | 25 | 6 | 22 | ||
| K0791.01906050 | 20,01 € | 24,21 € | 19 | 6mm | 6,85mm | 11 | 50 | 6,8 | 25 | 6 | 22 | ||
| K0791.02508020 | 20,53 € | 24,84 € | 25 | 8mm | 9,5mm | 14 | 20 | 7,8 | 33 | 8 | 38 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
| K0791.02508025 | 20,53 € | 24,84 € | 25 | 8mm | 9,5mm | 14 | 25 | 7,8 | 33 | 8 | 38 | ||
| K0791.02508030 | 21,62 € | 26,16 € | 25 | 8mm | 9,5mm | 14 | 30 | 7,8 | 33 | 8 | 38 | ||
| K0791.02508035 | 21,62 € | 26,16 € | 25 | 8mm | 9,5mm | 14 | 35 | 7,8 | 33 | 8 | 38 | ||
| K0791.02508040 | 21,62 € | 26,16 € | 25 | 8mm | 9,5mm | 14 | 40 | 7,8 | 33 | 8 | 38 | ||
| K0791.02508045 | 21,62 € | 26,16 € | 25 | 8mm | 9,5mm | 14 | 45 | 7,8 | 33 | 8 | 38 | ||
| K0791.02508050 | 21,62 € | 26,16 € | 25 | 8mm | 9,5mm | 14 | 50 | 7,8 | 33 | 8 | 38 | ||
| K0791.02510020 | 24,25 € | 29,34 € | 25 | 10mm | 12mm | 14 | 20 | 8,9 | 33 | 10 | 60 | ||
| K0791.02510025 | 24,25 € | 29,34 € | 25 | 10mm | 12mm | 14 | 25 | 8,9 | 33 | 10 | 60 | ||
| K0791.02510030 | 25,46 € | 30,81 € | 25 | 10mm | 12mm | 14 | 30 | 8,9 | 33 | 10 | 60 | ||
| K0791.02510035 | 25,46 € | 30,81 € | 25 | 10mm | 12mm | 14 | 35 | 8,9 | 33 | 10 | 60 | ||
| K0791.02510040 | 25,46 € | 30,81 € | 25 | 10mm | 12mm | 14 | 40 | 8,9 | 33 | 10 | 60 | ||
| K0791.02510045 | 25,46 € | 30,81 € | 25 | 10mm | 12mm | 14 | 45 | 8,9 | 33 | 10 | 60 | ||
| K0791.02510050 | 25,46 € | 30,81 € | 25 | 10mm | 12mm | 14 | 50 | 8,9 | 33 | 10 | 60 | ||
| K0791.02510060 | 26,92 € | 32,57 € | 25 | 10mm | 12mm | 14 | 60 | 8,9 | 33 | 10 | 60 | ||
| K0791.03512025 | 28,30 € | 34,24 € | 35 | 12mm | 14,5mm | 22 | 25 | 9,9 | 39,5 | 12 | 86 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
| K0791.03512030 | 29,69 € | 35,92 € | 35 | 12mm | 14,5mm | 22 | 30 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03512035 | 29,69 € | 35,92 € | 35 | 12mm | 14,5mm | 22 | 35 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03512040 | 29,69 € | 35,92 € | 35 | 12mm | 14,5mm | 22 | 40 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03512045 | 29,69 € | 35,92 € | 35 | 12mm | 14,5mm | 22 | 45 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03512050 | 29,69 € | 35,92 € | 35 | 12mm | 14,5mm | 22 | 50 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03512060 | 31,21 € | 37,76 € | 35 | 12mm | 14,5mm | 22 | 60 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03512070 | 31,21 € | 37,76 € | 35 | 12mm | 14,5mm | 22 | 70 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03512080 | 32,75 € | 39,63 € | 35 | 12mm | 14,5mm | 22 | 80 | 9,9 | 39,5 | 12 | 86 | ||
| K0791.03516030 | 46,58 € | 56,36 € | 35 | 16mm | 19mm | 22 | 30 | 13,1 | 39,5 | 16 | 153 | ||
| K0791.03516035 | 46,58 € | 56,36 € | 35 | 16mm | 19mm | 22 | 35 | 13,1 | 39,5 | 16 | 153 | ||
| K0791.03516040 | 46,58 € | 56,36 € | 35 | 16mm | 19mm | 22 | 40 | 13,1 | 39,5 | 16 | 153 | ||
| K0791.03516045 | 46,58 € | 56,36 € | 35 | 16mm | 19mm | 22 | 45 | 13,1 | 39,5 | 16 | 153 | ||
| K0791.03516050 | 46,58 € | 56,36 € | 35 | 16mm | 19mm | 22 | 50 | 13,1 | 39,5 | 16 | 153 | ||
| K0791.03516060 | 48,19 € | 58,31 € | 35 | 16mm | 19mm | 22 | 60 | 13,1 | 39,5 | 16 | 153 | ||
| K0791.03516070 | 48,19 € | 58,31 € | 35 | 16mm | 19mm | 22 | 70 | 13,1 | 39,5 | 16 | 153 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
| K0791.03516080 | 48,77 € | 59,01 € | 35 | 16mm | 19mm | 22 | 80 | 13,1 | 39,5 | 16 | 153 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||
