Fixačné čapy s guličkou nerezové samoistiace
Popis produktu
| Kód: | K0364 |
|---|---|
| Výrobca: | Kipp |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Na stiahnutie
Přehrát video
Datový list K0364 Fixační čepy s kuličkou nerezové samojisticí
Detail zavřít

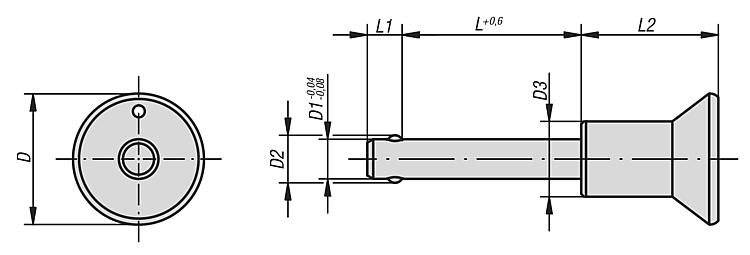

| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0364.2305010 | 16,60 € | 20,09 € | 25 | 5mm | 5,5mm | 14 | 10 | 6 | 26,5 | 5 | 15 | ||
| K0364.2305015 | 16,91 € | 20,46 € | 25 | 5mm | 5,5mm | 14 | 15 | 6 | 26,5 | 5 | 15 | ||
| K0364.2305020 | 17,22 € | 20,84 € | 25 | 5mm | 5,5mm | 14 | 20 | 6 | 26,5 | 5 | 15 | ||
| K0364.2305025 | 18,50 € | 22,39 € | 25 | 5mm | 5,5mm | 14 | 25 | 6 | 26,5 | 5 | 15 | ||
| K0364.2305030 | 18,75 € | 22,69 € | 25 | 5mm | 5,5mm | 14 | 30 | 6 | 26,5 | 5 | 15 | ||
| K0364.2306010 | 17,70 € | 21,42 € | 25 | 6mm | 6,85mm | 14 | 10 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306015 | 18,30 € | 22,14 € | 25 | 6mm | 6,85mm | 14 | 15 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306020 | 18,72 € | 22,65 € | 25 | 6mm | 6,85mm | 14 | 20 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306025 | 19,14 € | 23,16 € | 25 | 6mm | 6,85mm | 14 | 25 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306030 | 19,84 € | 24,01 € | 25 | 6mm | 6,85mm | 14 | 30 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306035 | 20,29 € | 24,55 € | 25 | 6mm | 6,85mm | 14 | 35 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306040 | 20,72 € | 25,07 € | 25 | 6mm | 6,85mm | 14 | 40 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306045 | 21,64 € | 26,18 € | 25 | 6mm | 6,85mm | 14 | 45 | 7 | 26,5 | 6 | 22 | ||
| K0364.2306050 | 22,14 € | 26,79 € | 25 | 6mm | 6,85mm | 14 | 50 | 7 | 26,5 | 6 | 22 | ||
| K0364.2308020 | 18,90 € | 22,87 € | 25 | 8mm | 9,5mm | 14 | 20 | 8 | 26,5 | 8 | 38 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
| K0364.2308025 | 19,26 € | 23,30 € | 25 | 8mm | 9,5mm | 14 | 25 | 8 | 26,5 | 8 | 38 | ||
| K0364.2308030 | 19,66 € | 23,79 € | 25 | 8mm | 9,5mm | 14 | 30 | 8 | 26,5 | 8 | 38 | ||
| K0364.2308035 | 20,09 € | 24,31 € | 25 | 8mm | 9,5mm | 14 | 35 | 8 | 26,5 | 8 | 38 | ||
| K0364.2308040 | 20,44 € | 24,73 € | 25 | 8mm | 9,5mm | 14 | 40 | 8 | 26,5 | 8 | 38 | ||
| K0364.2308045 | 20,88 € | 25,26 € | 25 | 8mm | 9,5mm | 14 | 45 | 8 | 26,5 | 8 | 38 | ||
| K0364.2308050 | 21,26 € | 25,72 € | 25 | 8mm | 9,5mm | 14 | 50 | 8 | 26,5 | 8 | 38 | ||
| K0364.3110020 | 20,15 € | 24,38 € | 33 | 10mm | 12mm | 19 | 20 | 9 | 34,6 | 10 | 60 | ||
| K0364.3110025 | 20,42 € | 24,71 € | 33 | 10mm | 12mm | 19 | 25 | 9 | 34,6 | 10 | 60 | ||
| K0364.3110030 | 20,86 € | 25,24 € | 33 | 10mm | 12mm | 19 | 30 | 9 | 34,6 | 10 | 60 | ||
| K0364.3110035 | 21,18 € | 25,63 € | 33 | 10mm | 12mm | 19 | 35 | 9 | 34,6 | 10 | 60 | ||
| K0364.3110040 | 21,57 € | 26,10 € | 33 | 10mm | 12mm | 19 | 40 | 9 | 34,6 | 10 | 60 | ||
| K0364.3110045 | 21,88 € | 26,47 € | 33 | 10mm | 12mm | 19 | 45 | 9 | 34,6 | 10 | 60 | ||
| K0364.3110050 | 23,46 € | 28,39 € | 33 | 10mm | 12mm | 19 | 50 | 9 | 34,6 | 10 | 60 | ||
| K0364.3110060 | 25,33 € | 30,65 € | 33 | 10mm | 12mm | 19 | 60 | 9 | 34,6 | 10 | 60 | ||
| K0364.3112025 | 24,62 € | 29,79 € | 33 | 12mm | 14,5mm | 19 | 25 | 10 | 34,6 | 12 | 86 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
| K0364.3112030 | 25,11 € | 30,38 € | 33 | 12mm | 14,5mm | 19 | 30 | 10 | 34,6 | 12 | 86 | ||
| K0364.3112035 | 25,62 € | 31,00 € | 33 | 12mm | 14,5mm | 19 | 35 | 10 | 34,6 | 12 | 86 | ||
| K0364.3112040 | 26,11 € | 31,59 € | 33 | 12mm | 14,5mm | 19 | 40 | 10 | 34,6 | 12 | 86 | ||
| K0364.3112045 | 26,59 € | 32,17 € | 33 | 12mm | 14,5mm | 19 | 45 | 10 | 34,6 | 12 | 86 | ||
| K0364.3112050 | 27,59 € | 33,38 € | 33 | 12mm | 14,5mm | 19 | 50 | 10 | 34,6 | 12 | 86 | ||
| K0364.3112060 | 29,65 € | 35,88 € | 33 | 12mm | 14,5mm | 19 | 60 | 10 | 34,6 | 12 | 86 | ||
| K0364.3112070 | 31,76 € | 38,43 € | 33 | 12mm | 14,5mm | 19 | 70 | 10 | 34,6 | 12 | 86 | ||
| K0364.3112080 | 33,99 € | 41,13 € | 33 | 12mm | 14,5mm | 19 | 80 | 10 | 34,6 | 12 | 86 | ||
| K0364.3116030 | 64,11 € | 77,57 € | 33 | 16mm | 19mm | 20 | 30 | 13,3 | 34,6 | 16 | 153 | ||
| K0364.3116035 | 64,53 € | 78,08 € | 33 | 16mm | 19mm | 20 | 35 | 13,3 | 34,6 | 16 | 153 | ||
| K0364.3116040 | 64,96 € | 78,60 € | 33 | 16mm | 19mm | 20 | 40 | 13,3 | 34,6 | 16 | 153 | ||
| K0364.3116045 | 66,66 € | 80,66 € | 33 | 16mm | 19mm | 20 | 45 | 13,3 | 34,6 | 16 | 153 | ||
| K0364.3116050 | 68,48 € | 82,86 € | 33 | 16mm | 19mm | 20 | 50 | 13,3 | 34,6 | 16 | 153 | ||
| K0364.3116060 | 71,00 € | 85,91 € | 33 | 16mm | 19mm | 20 | 60 | 13,3 | 34,6 | 16 | 153 | ||
| K0364.3116070 | 74,38 € | 90,00 € | 33 | 16mm | 19mm | 20 | 70 | 13,3 | 34,6 | 16 | 153 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | D | d1 | d2 | D3 | L | L1 | L2 | Montážny otvor H11 | Šmyková sila dvojstrihová max. kN |
| K0364.3116080 | 77,78 € | 94,11 € | 33 | 16mm | 19mm | 20 | 80 | 13,3 | 34,6 | 16 | 153 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||
