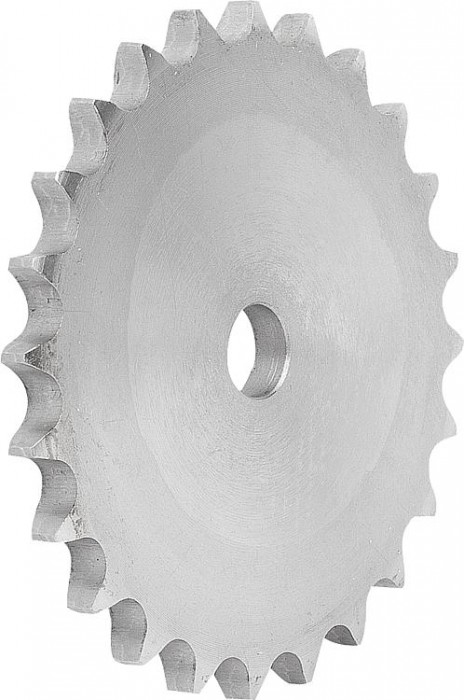

Reťazové kolieska diskové jednoduché 3/8" x 7/32" DIN ISO 606
Popis produktu
| Kód: | 22264 |
|---|---|
| Výrobca: | norelem |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok s dĺžkou nad 2 m zohľadňujeme podľa skutočných hodnôt a v prípade potreby ju dodatočne upravujeme. |
zavřít
zavřít
Na stiahnutie
Dátový list norelem 22264 Reťazové kolieska diskové jednoduché 3/8" x 7/32" DIN ISO 606
Detail zavřít
| Objednávací kód | Základná cena bez DPH | Konečná cena s DPH | Objednať | CAD | Č. ISO | Delenie stupnice palce | Delenie stupnice mm | Počet zubov | D | d1 | D3 max. | B1 | C | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22264-10380732008 | 0,95 € | 1,15 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 8 | 28,6 | 24,89mm | 6 | 5,3 | 1 | 10 | ||
| 22264-10380732009 | 1,14 € | 1,38 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 9 | 31,5 | 27,85mm | 8 | 5,3 | 1 | 10 | ||
| 22264-10380732010 | 1,21 € | 1,46 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 10 | 34,5 | 30,82mm | 8 | 5,3 | 1 | 10 | ||
| 22264-10380732011 | 1,21 € | 1,46 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 11 | 37,5 | 33,8mm | 8 | 5,3 | 1 | 10 | ||
| 22264-10380732012 | 1,31 € | 1,59 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 12 | 40,5 | 36,8mm | 8 | 5,3 | 1 | 10 | ||
| 22264-10380732013 | 1,64 € | 1,98 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 13 | 43,5 | 39,8mm | 8 | 5,3 | 1 | 10 | ||
| 22264-10380732014 | 1,64 € | 1,98 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 14 | 46,5 | 42,8mm | 8 | 5,3 | 1 | 10 | ||
| 22264-10380732015 | 1,80 € | 2,18 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 15 | 49,5 | 45,81mm | 8 | 5,3 | 1 | 10 | ||
| 22264-10380732016 | 1,80 € | 2,18 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 16 | 52,5 | 48,82mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732017 | 1,80 € | 2,18 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 17 | 55,5 | 51,83mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732018 | 1,80 € | 2,18 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 18 | 58,6 | 54,85mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732019 | 1,80 € | 2,18 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 19 | 61,6 | 57,87mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732020 | 1,98 € | 2,40 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 20 | 64,6 | 60,89mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732021 | 2,16 € | 2,61 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 21 | 67,6 | 63,91mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732022 | 2,50 € | 3,03 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 22 | 70,6 | 66,93mm | 10 | 5,3 | 1 | 10 | ||
| Objednávací kód | Základná cena bez DPH | Konečná cena s DPH | Objednať | CAD | Č. ISO | Delenie stupnice palce | Delenie stupnice mm | Počet zubov | D | d1 | D3 max. | B1 | C | R |
| 22264-10380732023 | 2,93 € | 3,55 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 23 | 73,7 | 69,95mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732024 | 3,02 € | 3,65 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 24 | 76,7 | 72,97mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732025 | 3,47 € | 4,20 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 25 | 79,7 | 76mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732026 | 3,51 € | 4,25 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 26 | 82,7 | 79,02mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732027 | 3,72 € | 4,50 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 27 | 85,7 | 82,04mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732028 | 3,72 € | 4,50 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 28 | 88,8 | 85,07mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732029 | 3,81 € | 4,61 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 29 | 91,8 | 88,09mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732030 | 4,21 € | 5,09 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 30 | 94,8 | 91,12mm | 10 | 5,3 | 1 | 10 | ||
| 22264-10380732031 | 4,42 € | 5,35 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 31 | 97,9 | 94,15mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732032 | 4,77 € | 5,77 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 32 | 100,9 | 97,17mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732033 | 5,01 € | 6,06 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 33 | 103,9 | 100,2mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732034 | 5,29 € | 6,40 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 34 | 106,9 | 103,23mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732035 | 5,32 € | 6,44 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 35 | 110 | 106,26mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732036 | 5,62 € | 6,80 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 36 | 113 | 109,29mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732037 | 6,10 € | 7,38 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 37 | 116 | 112,32mm | 12 | 5,3 | 1 | 10 | ||
| Objednávací kód | Základná cena bez DPH | Konečná cena s DPH | Objednať | CAD | Č. ISO | Delenie stupnice palce | Delenie stupnice mm | Počet zubov | D | d1 | D3 max. | B1 | C | R |
| 22264-10380732038 | 6,50 € | 7,87 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 38 | 119 | 115,34mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732039 | 6,64 € | 8,03 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 39 | 122,1 | 118,37mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732040 | 7,26 € | 8,78 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 40 | 125,1 | 121,4mm | 12 | 5,3 | 1 | 10 | ||
| 22264-10380732041 | 7,83 € | 9,47 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 41 | 129 | 124,43mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732042 | 8,84 € | 10,70 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 42 | 132,1 | 127,46mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732043 | 9,97 € | 12,06 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 43 | 135,1 | 130,49mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732044 | 10,68 € | 12,92 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 44 | 135,1 | 133,52mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732045 | 11,44 € | 13,84 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 45 | 141,1 | 136,54mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732046 | 12,14 € | 14,69 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 46 | 144,2 | 139,58mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732047 | 12,45 € | 15,06 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 47 | 147,2 | 142,61mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732048 | 12,45 € | 15,06 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 48 | 150,2 | 145,64mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732049 | 12,61 € | 15,26 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 49 | 153,3 | 148,66mm | 16 | 5,3 | 1 | 10 | ||
| 22264-10380732050 | 12,61 € | 15,26 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 50 | 156,3 | 151,69mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732051 | 13,08 € | 15,83 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 51 | 159,3 | 154,72mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732052 | 13,43 € | 16,25 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 52 | 162,4 | 157,75mm | 20 | 5,3 | 1 | 10 | ||
| Objednávací kód | Základná cena bez DPH | Konečná cena s DPH | Objednať | CAD | Č. ISO | Delenie stupnice palce | Delenie stupnice mm | Počet zubov | D | d1 | D3 max. | B1 | C | R |
| 22264-10380732053 | 13,94 € | 16,87 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 53 | 165,4 | 160,78mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732054 | 14,41 € | 17,44 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 54 | 168,4 | 163,82mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732055 | 14,77 € | 17,87 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 55 | 171,4 | 166,85mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732056 | 15,15 € | 18,33 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 56 | 174,5 | 169,88mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732057 | 15,72 € | 19,02 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 57 | 177,5 | 172,91mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732058 | 16,25 € | 19,66 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 58 | 180,5 | 175,93mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732060 | 17,32 € | 20,96 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 60 | 186,6 | 181,99mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732062 | 18,76 € | 22,70 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 62 | 192,7 | 188,06mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732064 | 19,77 € | 23,92 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 64 | 198,7 | 194,12mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732065 | 20,22 € | 24,47 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 65 | 201,8 | 197,15mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732066 | 20,93 € | 25,33 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 66 | 204,8 | 200,18mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732068 | 22,28 € | 26,96 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 68 | 210,8 | 206,24mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732070 | 23,28 € | 28,17 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 70 | 216,9 | 212,3mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732072 | 23,97 € | 29,00 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 72 | 223 | 218,37mm | 20 | 5,3 | 1 | 10 | ||
| 22264-10380732075 | 26,86 € | 32,50 € | 06 B-1 | 3/8 × 7/32 | 9,525 × 5,72 | 75 | 232,1 | 227,46mm | 20 | 5,3 | 1 | 10 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||||
