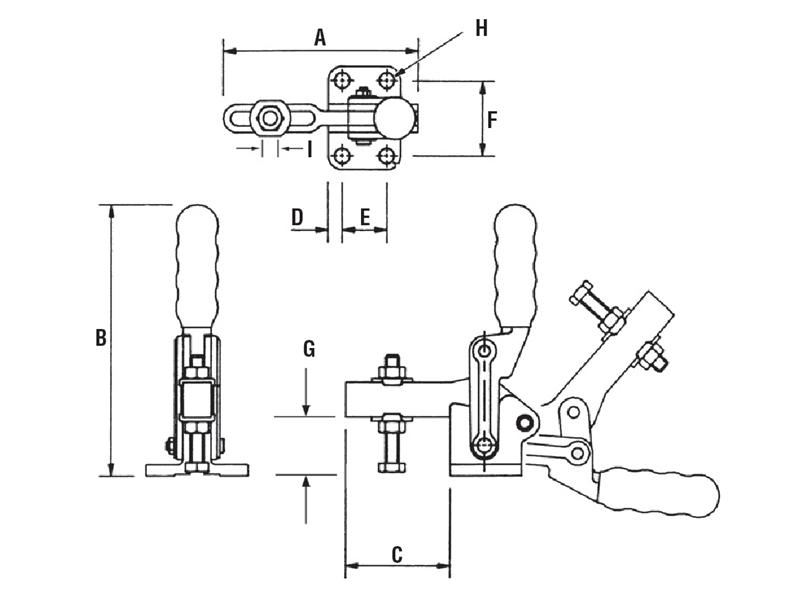

Vodorovná patka, nastavitelný přítlačný šroub
| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| VA300/2BT | 84 | 77 | 45 | 6 | 19 | 32 | 25 | 6.5 | 300daN | 0.25Kg |
| VA300/2B | 84 | 121 | 45 | 6 | 19 | 32 | 25 | 6.5 | 300daN | 0.25Kg |
| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| VA300/2BT | 84 | 77 | 45 | 6 | 19 | 32 | 25 | 6.5 | 300daN | 0.25Kg |
| VA300/2B | 84 | 121 | 45 | 6 | 19 | 32 | 25 | 6.5 | 300daN | 0.25Kg |
