Čelné ozubené kolieska z ocele, modul 2,5 ozubenie frézované, priame ozubenie, uhol záberu 20°
Popis produktu
| Kód: | 22400 |
|---|---|
| Výrobca: | norelem |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Na stiahnutie
Přehrát video
Datový list 22400 Čelní ozubená kola z oceli, modul 2,5 ozubení frézované, přímé ozubení, úhel záběru 20°
Detail zavřít

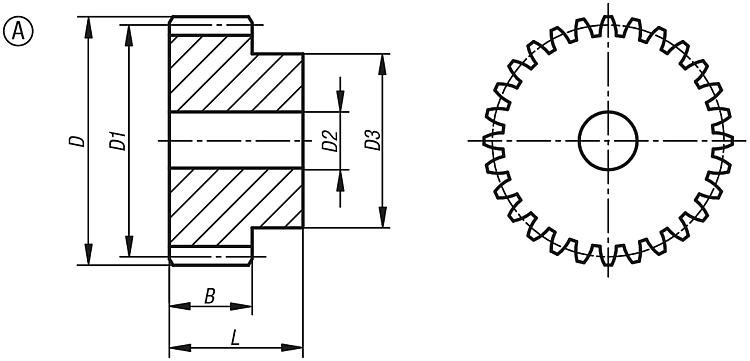

| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22400-0125250012 | 15,71 € | 19,01 € | A | 12 | 35 | 30mm | 10 | 22 | 25mm | 45 | ||
| 22400-0125250013 | 16,67 € | 20,17 € | A | 13 | 37,5 | 32,5mm | 10 | 25 | 25mm | 45 | ||
| 22400-0125250014 | 17,27 € | 20,90 € | A | 14 | 40 | 35mm | 10 | 28 | 25mm | 45 | ||
| 22400-0125250015 | 17,49 € | 21,16 € | A | 15 | 42,5 | 37,5mm | 10 | 30 | 25mm | 45 | ||
| 22400-0125250016 | 16,42 € | 19,87 € | A | 16 | 45 | 40mm | 12 | 32 | 25mm | 45 | ||
| 22400-0125250017 | 19,60 € | 23,72 € | A | 17 | 47,5 | 42,5mm | 12 | 35 | 25mm | 45 | ||
| 22400-0125250018 | 16,00 € | 19,36 € | A | 18 | 50 | 45mm | 12 | 35 | 25mm | 45 | ||
| 22400-0125250019 | 22,84 € | 27,64 € | A | 19 | 52,5 | 47,5mm | 12 | 35 | 25mm | 45 | ||
| 22400-0125250020 | 16,16 € | 19,55 € | A | 20 | 55 | 50mm | 12 | 40 | 25mm | 45 | ||
| 22400-0125250021 | 24,92 € | 30,15 € | A | 21 | 57,5 | 52,5mm | 14 | 40 | 25mm | 45 | ||
| 22400-0125250022 | 24,28 € | 29,38 € | A | 22 | 60 | 55mm | 14 | 45 | 25mm | 45 | ||
| 22400-0125250023 | 21,78 € | 26,35 € | A | 23 | 62,5 | 57,5mm | 14 | 45 | 25mm | 45 | ||
| 22400-0125250024 | 22,97 € | 27,79 € | A | 24 | 65 | 60mm | 14 | 45 | 25mm | 45 | ||
| 22400-0125250025 | 27,74 € | 33,57 € | A | 25 | 67,5 | 62,5mm | 14 | 50 | 25mm | 45 | ||
| 22400-0125250026 | 34,46 € | 41,70 € | A | 26 | 70 | 65mm | 14 | 50 | 25mm | 45 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
| 22400-0125250027 | 32,49 € | 39,31 € | A | 27 | 72,5 | 67,5mm | 14 | 50 | 25mm | 45 | ||
| 22400-0125250028 | 31,06 € | 37,58 € | A | 28 | 75 | 70mm | 14 | 50 | 25mm | 45 | ||
| 22400-0125250029 | 28,36 € | 34,32 € | A | 29 | 77,5 | 72,5mm | 14 | 50 | 25mm | 45 | ||
| 22400-0125250030 | 29,87 € | 36,14 € | A | 30 | 80 | 75mm | 14 | 55 | 25mm | 45 | ||
| 22400-0125250031 | 30,15 € | 36,48 € | A | 31 | 82,5 | 77,5mm | 20 | 55 | 25mm | 45 | ||
| 22400-0125250032 | 33,61 € | 40,67 € | A | 32 | 85 | 80mm | 20 | 55 | 25mm | 45 | ||
| 22400-0125250033 | 34,16 € | 41,33 € | A | 33 | 87,5 | 82,5mm | 20 | 55 | 25mm | 45 | ||
| 22400-0125250034 | 36,70 € | 44,41 € | A | 34 | 90 | 85mm | 20 | 55 | 25mm | 45 | ||
| 22400-0125250035 | 39,39 € | 47,66 € | A | 35 | 92,5 | 87,5mm | 20 | 60 | 25mm | 45 | ||
| 22400-0125250036 | 42,66 € | 51,62 € | A | 36 | 95 | 90mm | 20 | 60 | 25mm | 45 | ||
| 22400-0125250037 | 44,25 € | 53,54 € | A | 37 | 97,5 | 92,5mm | 20 | 60 | 25mm | 45 | ||
| 22400-0125250038 | 47,90 € | 57,96 € | A | 38 | 100 | 95mm | 20 | 60 | 25mm | 45 | ||
| 22400-0125250039 | 50,23 € | 60,78 € | A | 39 | 102,5 | 97,5mm | 20 | 60 | 25mm | 45 | ||
| 22400-0125250040 | 50,23 € | 60,78 € | A | 40 | 105 | 100mm | 20 | 70 | 25mm | 45 | ||
| 22400-0125250041 | 52,53 € | 63,56 € | A | 41 | 107,5 | 102,5mm | 20 | 70 | 25mm | 45 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
| 22400-0125250042 | 52,53 € | 63,56 € | A | 42 | 110 | 105mm | 20 | 70 | 25mm | 45 | ||
| 22400-0125250043 | 53,57 € | 64,82 € | A | 43 | 112,5 | 107,5mm | 20 | 70 | 25mm | 45 | ||
| 22400-0125250044 | 53,68 € | 64,95 € | A | 44 | 115 | 110mm | 20 | 70 | 25mm | 45 | ||
| 22400-0125250045 | 53,68 € | 64,95 € | A | 45 | 117,5 | 112,5mm | 20 | 70 | 25mm | 45 | ||
| 22400-0125250046 | 65,63 € | 79,41 € | A | 46 | 120 | 115mm | 20 | 70 | 25mm | 45 | ||
| 22400-0125250047 | 56,35 € | 68,18 € | A | 47 | 122,5 | 117,5mm | 20 | 80 | 25mm | 45 | ||
| 22400-0125250048 | 57,49 € | 69,56 € | A | 48 | 125 | 120mm | 20 | 80 | 25mm | 45 | ||
| 22400-0125250049 | 63,56 € | 76,91 € | A | 49 | 127,5 | 122,5mm | 20 | 80 | 25mm | 45 | ||
| 22400-0125250050 | 68,57 € | 82,97 € | A | 50 | 130 | 125mm | 20 | 80 | 25mm | 45 | ||
| 22400-0125250051 | 83,66 € | 101,23 € | A | 51 | 132,5 | 127,5mm | 20 | 80 | 25mm | 45 | ||
| 22400-0125250052 | 85,05 € | 102,91 € | A | 52 | 135 | 130mm | 20 | 90 | 25mm | 45 | ||
| 22400-0125250053 | 83,83 € | 101,43 € | A | 53 | 137,5 | 132,5mm | 20 | 90 | 25mm | 45 | ||
| 22400-0125250054 | 89,06 € | 107,76 € | A | 54 | 140 | 135mm | 20 | 90 | 25mm | 45 | ||
| 22400-0125250055 | 92,89 € | 112,40 € | A | 55 | 142,5 | 137,5mm | 20 | 90 | 25mm | 45 | ||
| 22400-0125250056 | 94,60 € | 114,47 € | A | 56 | 145 | 140mm | 20 | 100 | 25mm | 45 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
| 22400-0125250057 | 84,18 € | 101,86 € | A | 57 | 147,5 | 142,5mm | 20 | 100 | 25mm | 45 | ||
| 22400-0125250058 | 71,90 € | 87,00 € | A | 58 | 150 | 145mm | 20 | 100 | 25mm | 45 | ||
| 22400-0125250059 | 76,12 € | 92,11 € | A | 59 | 152,5 | 147,5mm | 20 | 100 | 25mm | 45 | ||
| 22400-0125250060 | 80,85 € | 97,83 € | A | 60 | 155 | 150mm | 20 | 100 | 25mm | 45 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||

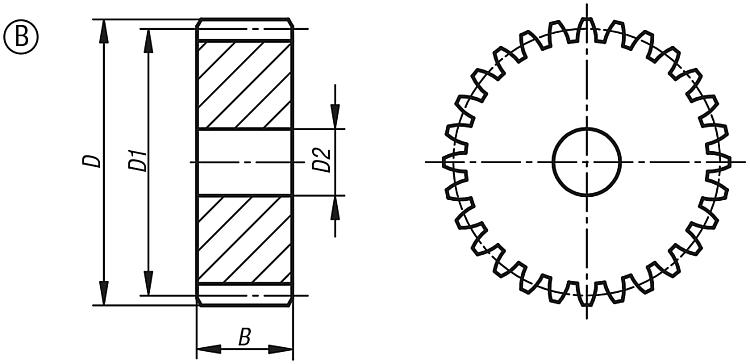

| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | B |
|---|---|---|---|---|---|---|---|---|---|---|
| 22400-0225250065 | 75,25 € | 91,05 € | B | 65 | 167,5 | 162,5mm | 20 | 25mm | ||
| 22400-0225250070 | 107,45 € | 130,01 € | B | 70 | 180 | 175mm | 20 | 25mm | ||
| 22400-0225250072 | 68,63 € | 83,04 € | B | 72 | 185 | 180mm | 20 | 25mm | ||
| 22400-0225250075 | 70,47 € | 85,27 € | B | 75 | 192,5 | 187,5mm | 20 | 25mm | ||
| 22400-0225250076 | 71,19 € | 86,14 € | B | 76 | 195 | 190mm | 20 | 25mm | ||
| 22400-0225250080 | 74,27 € | 89,87 € | B | 80 | 205 | 200mm | 25 | 25mm | ||
| 22400-0225250085 | 78,01 € | 94,39 € | B | 85 | 217,5 | 212,5mm | 25 | 25mm | ||
| 22400-0225250090 | 83,51 € | 101,05 € | B | 90 | 230 | 225mm | 25 | 25mm | ||
| 22400-0225250095 | 93,95 € | 113,68 € | B | 95 | 242,5 | 237,5mm | 25 | 25mm | ||
| 22400-0225250100 | 105,55 € | 127,72 € | B | 100 | 255 | 250mm | 25 | 25mm | ||
| 22400-0225250110 | 127,62 € | 154,42 € | B | 110 | 280 | 275mm | 25 | 25mm | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||
