Čelné ozubené kolieska z ocele, modul 1,5 ozubenie frézované, priame ozubenie, uhol záberu 20°
Popis produktu
| Kód: | 22400 |
|---|---|
| Výrobca: | norelem |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Na stiahnutie
Přehrát video
Datový list 22400 Čelní ozubená kola z oceli, modul 1,5 ozubení frézované, přímé ozubení, úhel záběru 20°
Detail zavřít

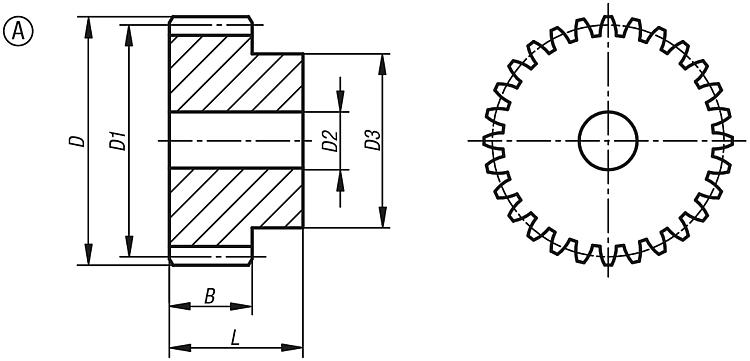

| Objednávací kód | Základná cena bez DPH | Objednať | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22400-0115170012 | 5,45 € | A | 12 | 21 | 18mm | 8 | 14 | 17mm | 30 | ||
| 22400-0115170013 | 5,60 € | A | 13 | 22,5 | 19,5mm | 8 | 15 | 17mm | 30 | ||
| 22400-0115170014 | 5,92 € | A | 14 | 24 | 21mm | 8 | 17 | 17mm | 30 | ||
| 22400-0115170015 | 6,40 € | A | 15 | 25,5 | 22,5mm | 8 | 18 | 17mm | 30 | ||
| 22400-0115170016 | 6,40 € | A | 16 | 27 | 24mm | 8 | 19 | 17mm | 30 | ||
| 22400-0115170017 | 7,47 € | A | 17 | 28,5 | 25,5mm | 8 | 20 | 17mm | 30 | ||
| 22400-0115170018 | 7,94 € | A | 18 | 30 | 27mm | 8 | 20 | 17mm | 30 | ||
| 22400-0115170019 | 8,71 € | A | 19 | 31,5 | 28,5mm | 8 | 20 | 17mm | 30 | ||
| 22400-0115170020 | 9,05 € | A | 20 | 33 | 30mm | 8 | 25 | 17mm | 30 | ||
| 22400-0115170021 | 10,58 € | A | 21 | 34,5 | 31,5mm | 10 | 25 | 17mm | 30 | ||
| 22400-0115170022 | 10,58 € | A | 22 | 36 | 33mm | 10 | 25 | 17mm | 30 | ||
| 22400-0115170023 | 11,36 € | A | 23 | 37,5 | 34,5mm | 10 | 25 | 17mm | 30 | ||
| 22400-0115170024 | 12,14 € | A | 24 | 39 | 36mm | 10 | 25 | 17mm | 30 | ||
| 22400-0115170025 | 13,38 € | A | 25 | 40,5 | 37,5mm | 10 | 25 | 17mm | 30 | ||
| 22400-0115170026 | 14,18 € | A | 26 | 42 | 39mm | 12 | 30 | 17mm | 30 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L | CAD |
| 22400-0115170027 | 14,94 € | A | 27 | 43,5 | 40,5mm | 12 | 30 | 17mm | 30 | ||
| 22400-0115170028 | 15,87 € | A | 28 | 45 | 42mm | 12 | 30 | 17mm | 30 | ||
| 22400-0115170029 | 14,83 € | A | 29 | 46,5 | 43,5mm | 12 | 30 | 17mm | 30 | ||
| 22400-0115170030 | 15,57 € | A | 30 | 48 | 45mm | 12 | 30 | 17mm | 30 | ||
| 22400-0115170031 | 17,27 € | A | 31 | 49,5 | 46,5mm | 12 | 35 | 17mm | 30 | ||
| 22400-0115170032 | 17,43 € | A | 32 | 51 | 48mm | 12 | 35 | 17mm | 30 | ||
| 22400-0115170033 | 16,80 € | A | 33 | 52,5 | 49,5mm | 12 | 35 | 17mm | 30 | ||
| 22400-0115170034 | 17,49 € | A | 34 | 54 | 51mm | 12 | 35 | 17mm | 30 | ||
| 22400-0115170035 | 20,29 € | A | 35 | 55,5 | 52,5mm | 12 | 35 | 17mm | 30 | ||
| 22400-0115170036 | 19,47 € | A | 36 | 57 | 54mm | 12 | 35 | 17mm | 30 | ||
| 22400-0115170037 | 20,88 € | A | 37 | 58,5 | 55,5mm | 12 | 40 | 17mm | 30 | ||
| 22400-0115170038 | 21,62 € | A | 38 | 60 | 57mm | 12 | 40 | 17mm | 30 | ||
| 22400-0115170039 | 21,78 € | A | 39 | 61,5 | 58,5mm | 12 | 40 | 17mm | 30 | ||
| 22400-0115170040 | 21,78 € | A | 40 | 63 | 60mm | 12 | 40 | 17mm | 30 | ||
| 22400-0115170041 | 22,10 € | A | 41 | 64,5 | 61,5mm | 12 | 40 | 17mm | 30 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L | CAD |
| 22400-0115170042 | 22,88 € | A | 42 | 66 | 63mm | 12 | 50 | 17mm | 30 | ||
| 22400-0115170043 | 23,68 € | A | 43 | 67,5 | 64,5mm | 12 | 50 | 17mm | 30 | ||
| 22400-0115170044 | 24,90 € | A | 44 | 69 | 66mm | 12 | 50 | 17mm | 30 | ||
| 22400-0115170045 | 25,67 € | A | 45 | 70,5 | 67,5mm | 12 | 50 | 17mm | 30 | ||
| 22400-0115170046 | 27,70 € | A | 46 | 72 | 69mm | 14 | 50 | 17mm | 30 | ||
| 22400-0115170047 | 28,31 € | A | 47 | 73,5 | 70,5mm | 14 | 50 | 17mm | 30 | ||
| 22400-0115170048 | 29,72 € | A | 48 | 75 | 72mm | 14 | 50 | 17mm | 30 | ||
| 22400-0115170049 | 30,03 € | A | 49 | 76,5 | 73,5mm | 14 | 50 | 17mm | 30 | ||
| 22400-0115170050 | 31,11 € | A | 50 | 78 | 75mm | 14 | 50 | 17mm | 30 | ||
| 22400-0115170051 | 31,11 € | A | 51 | 79,5 | 76,5mm | 14 | 60 | 17mm | 30 | ||
| 22400-0115170052 | 32,85 € | A | 52 | 81 | 78mm | 14 | 60 | 17mm | 30 | ||
| 22400-0115170053 | 33,94 € | A | 53 | 82,5 | 79,5mm | 14 | 60 | 17mm | 30 | ||
| 22400-0115170054 | 34,08 € | A | 54 | 84 | 81mm | 14 | 60 | 17mm | 30 | ||
| 22400-0115170055 | 35,47 € | A | 55 | 85,5 | 82,5mm | 14 | 60 | 17mm | 30 | ||
| 22400-0115170056 | 35,94 € | A | 56 | 87 | 84mm | 20 | 60 | 17mm | 30 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L | CAD |
| 22400-0115170057 | 36,72 € | A | 57 | 88,5 | 85,5mm | 20 | 60 | 17mm | 30 | ||
| 22400-0115170058 | 38,58 € | A | 58 | 90 | 87mm | 20 | 60 | 17mm | 30 | ||
| 22400-0115170059 | 34,73 € | A | 59 | 91,5 | 88,5mm | 20 | 60 | 17mm | 30 | ||
| 22400-0115170060 | 35,56 € | A | 60 | 93 | 90mm | 20 | 60 | 17mm | 30 | ||
| 22400-0115170061 | 40,63 € | A | 61 | 94,5 | 91,5mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170062 | 43,42 € | A | 62 | 96 | 93mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170063 | 41,19 € | A | 63 | 97,5 | 94,5mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170064 | 42,99 € | A | 64 | 99 | 96mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170065 | 45,08 € | A | 65 | 100,5 | 97,5mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170066 | 45,26 € | A | 66 | 102 | 99mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170067 | 45,52 € | A | 67 | 103,5 | 100,5mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170068 | 47,62 € | A | 68 | 105 | 102mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170069 | 47,90 € | A | 69 | 106,5 | 103,5mm | 20 | 70 | 17mm | 30 | ||
| 22400-0115170070 | 47,90 € | A | 70 | 108 | 105mm | 20 | 70 | 17mm | 30 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||

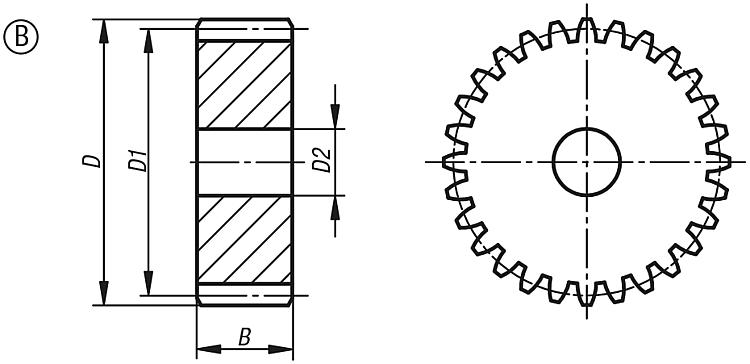

| Objednávací kód | Základná cena bez DPH | Objednať | Prevedenie | Počet zubov | D | d1 | D2 max. | B | CAD |
|---|---|---|---|---|---|---|---|---|---|
| 22400-0215170072 | 47,90 € | B | 72 | 111 | 108mm | 20 | 17mm | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||
