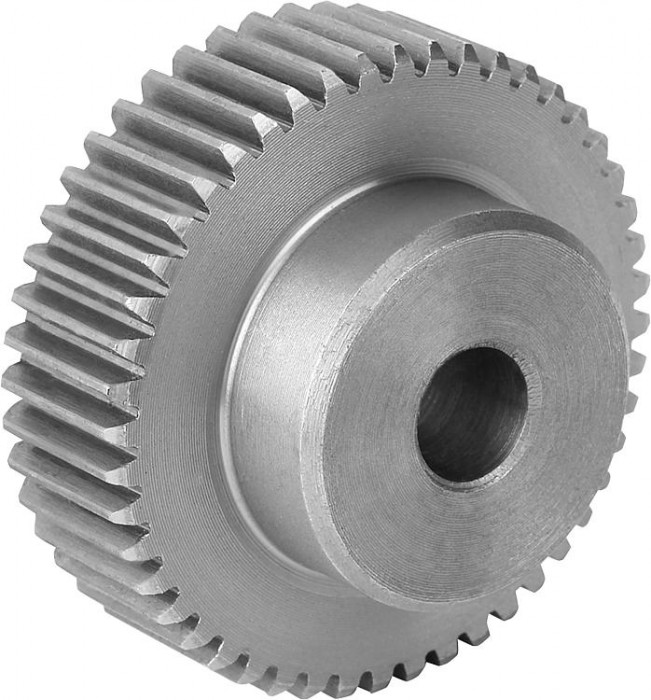

Čelné ozubené kolieska z ocele, modul 1 ozubenie frézované, priame ozubenie, uhol záberu 20°
Popis produktu
| Kód: | 22400 |
|---|---|
| Výrobca: | norelem |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Na stiahnutie
Přehrát video
Datový list 22400 Čelní ozubená kola z oceli, modul 1 ozubení frézované, přímé ozubení, úhel záběru 20°
Detail zavřít

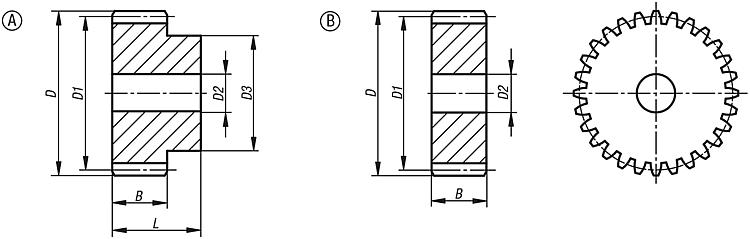

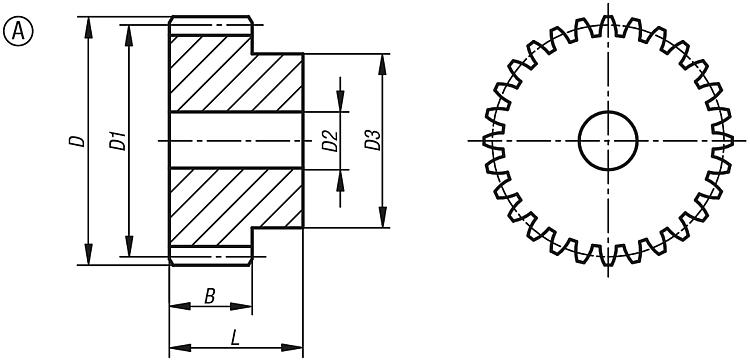

| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22400-0110150012 | 4,35 € | 5,26 € | A | 12 | 14 | 12mm | – | 9 | 15mm | 25 | ||
| 22400-0110150013 | 4,59 € | 5,55 € | A | 13 | 15 | 13mm | – | 10 | 15mm | 25 | ||
| 22400-0110150014 | 4,59 € | 5,55 € | A | 14 | 16 | 14mm | – | 11 | 15mm | 25 | ||
| 22400-0110150015 | 5,01 € | 6,06 € | A | 15 | 17 | 15mm | – | 12 | 15mm | 25 | ||
| 22400-0110150016 | 5,01 € | 6,06 € | A | 16 | 18 | 16mm | – | 13 | 15mm | 25 | ||
| 22400-0110150017 | 5,78 € | 6,99 € | A | 17 | 19 | 17mm | – | 14 | 15mm | 25 | ||
| 22400-0110150018 | 6,54 € | 7,91 € | A | 18 | 20 | 18mm | 8 | 15 | 15mm | 25 | ||
| 22400-0110150019 | 6,71 € | 8,12 € | A | 19 | 21 | 19mm | 8 | 15 | 15mm | 25 | ||
| 22400-0110150020 | 7,09 € | 8,58 € | A | 20 | 22 | 20mm | 8 | 16 | 15mm | 25 | ||
| 22400-0110150021 | 7,47 € | 9,04 € | A | 21 | 23 | 21mm | 8 | 16 | 15mm | 25 | ||
| 22400-0110150022 | 7,65 € | 9,26 € | A | 22 | 24 | 22mm | 8 | 16 | 15mm | 25 | ||
| 22400-0110150023 | 7,09 € | 8,58 € | A | 23 | 25 | 23mm | 8 | 18 | 15mm | 25 | ||
| 22400-0110150024 | 8,60 € | 10,41 € | A | 24 | 26 | 24mm | 10 | 20 | 15mm | 25 | ||
| 22400-0110150025 | 7,47 € | 9,04 € | A | 25 | 27 | 25mm | 10 | 20 | 15mm | 25 | ||
| 22400-0110150026 | 7,47 € | 9,04 € | A | 26 | 28 | 26mm | 10 | 20 | 15mm | 25 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
| 22400-0110150027 | 9,53 € | 11,53 € | A | 27 | 29 | 27mm | 10 | 20 | 15mm | 25 | ||
| 22400-0110150028 | 9,90 € | 11,98 € | A | 28 | 30 | 28mm | 10 | 20 | 15mm | 25 | ||
| 22400-0110150029 | 10,08 € | 12,20 € | A | 29 | 31 | 29mm | 10 | 20 | 15mm | 25 | ||
| 22400-0110150030 | 8,71 € | 10,54 € | A | 30 | 32 | 30mm | 10 | 20 | 15mm | 25 | ||
| 22400-0110150031 | 9,05 € | 10,95 € | A | 31 | 33 | 31mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150032 | 9,17 € | 11,10 € | A | 32 | 34 | 32mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150033 | 9,97 € | 12,06 € | A | 33 | 35 | 33mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150034 | 10,58 € | 12,80 € | A | 34 | 36 | 34mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150035 | 10,58 € | 12,80 € | A | 35 | 37 | 35mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150036 | 11,03 € | 13,35 € | A | 36 | 38 | 36mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150037 | 11,36 € | 13,75 € | A | 37 | 39 | 37mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150038 | 11,84 € | 14,33 € | A | 38 | 40 | 38mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150039 | 12,14 € | 14,69 € | A | 39 | 41 | 39mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150040 | 11,61 € | 14,05 € | A | 40 | 42 | 40mm | 10 | 25 | 15mm | 25 | ||
| 22400-0110150041 | 11,79 € | 14,27 € | A | 41 | 43 | 41mm | 10 | 30 | 15mm | 25 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
| 22400-0110150042 | 12,17 € | 14,73 € | A | 42 | 44 | 42mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150043 | 13,44 € | 16,26 € | A | 43 | 45 | 43mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150044 | 12,73 € | 15,40 € | A | 44 | 46 | 44mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150045 | 13,16 € | 15,92 € | A | 45 | 47 | 45mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150046 | 13,44 € | 16,26 € | A | 46 | 48 | 46mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150047 | 14,29 € | 17,29 € | A | 47 | 49 | 47mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150048 | 15,00 € | 18,15 € | A | 48 | 50 | 48mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150049 | 15,68 € | 18,97 € | A | 49 | 51 | 49mm | 10 | 30 | 15mm | 25 | ||
| 22400-0110150050 | 16,80 € | 20,33 € | A | 50 | 52 | 50mm | 12 | 30 | 15mm | 25 | ||
| 22400-0110150051 | 17,49 € | 21,16 € | A | 51 | 53 | 51mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150052 | 17,49 € | 21,16 € | A | 52 | 54 | 52mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150053 | 18,50 € | 22,39 € | A | 53 | 55 | 53mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150054 | 19,48 € | 23,57 € | A | 54 | 56 | 54mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150055 | 19,60 € | 23,72 € | A | 55 | 57 | 55mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150056 | 19,60 € | 23,72 € | A | 56 | 58 | 56mm | 12 | 40 | 15mm | 25 | ||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | D3 | B | L |
| 22400-0110150057 | 19,90 € | 24,08 € | A | 57 | 59 | 57mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150058 | 20,17 € | 24,41 € | A | 58 | 60 | 58mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150059 | 20,57 € | 24,89 € | A | 59 | 61 | 59mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150060 | 21,29 € | 25,76 € | A | 60 | 62 | 60mm | 12 | 40 | 15mm | 25 | ||
| 22400-0110150061 | 22,12 € | 26,77 € | A | 61 | 63 | 61mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150062 | 22,40 € | 27,10 € | A | 62 | 64 | 62mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150063 | 22,69 € | 27,45 € | A | 63 | 65 | 63mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150064 | 24,24 € | 29,33 € | A | 64 | 66 | 64mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150065 | 24,80 € | 30,01 € | A | 65 | 67 | 65mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150066 | 24,92 € | 30,15 € | A | 66 | 68 | 66mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150067 | 24,92 € | 30,15 € | A | 67 | 69 | 67mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150068 | 25,20 € | 30,49 € | A | 68 | 70 | 68mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150069 | 25,50 € | 30,86 € | A | 69 | 71 | 69mm | 12 | 50 | 15mm | 25 | ||
| 22400-0110150070 | 27,01 € | 32,68 € | A | 70 | 72 | 70mm | 12 | 50 | 15mm | 25 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||

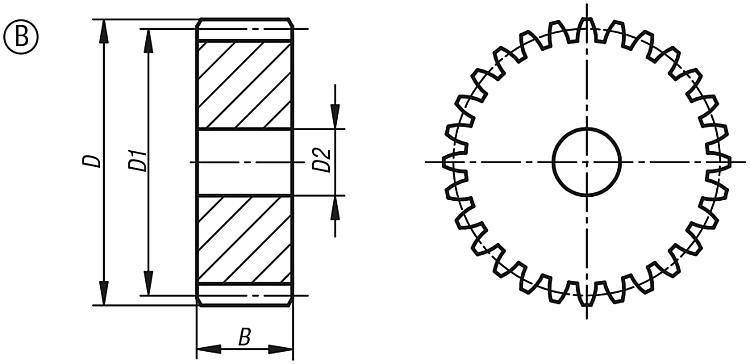

| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Prevedenie | Počet zubov | D | d1 | D2 max. | B |
|---|---|---|---|---|---|---|---|---|---|---|
| 22400-0210150072 | 22,12 € | 26,77 € | B | 72 | 74 | 72mm | 12 | 15mm | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||
