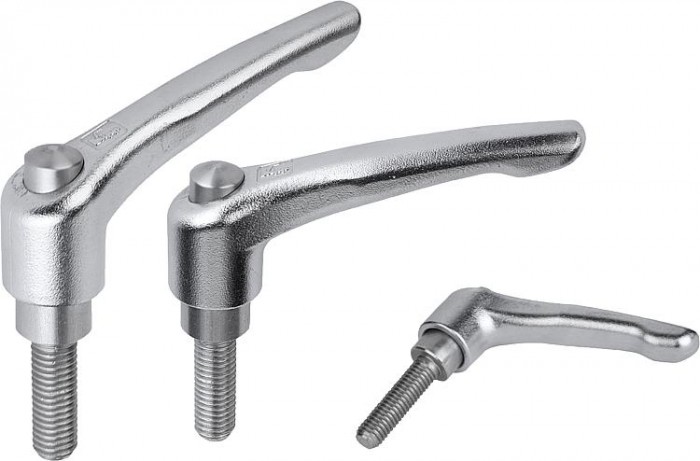

Zvieracie páky z nerezu s krytkou s vonkajším závitom
Popis produktu
| Kód: | 06464 |
|---|---|
| Výrobca: | norelem |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Na stiahnutie
Datový list 06464 Svěrací páky z nerezu s krytkou s vnějším závitem
Detail zavřít
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Veľkosť | X | L | D | d1 | d2 | B | A | A1 | H | H1 | H2 | H3 | H4 | Počet zubov |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06464-9206X15 | 24,50 € | 29,65 € | M6 | 15 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9206X20 | 24,50 € | 29,65 € | M6 | 20 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9206X25 | 24,50 € | 29,65 € | M6 | 25 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9206X30 | 24,50 € | 29,65 € | M6 | 30 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9206X40 | 25,29 € | 30,60 € | M6 | 40 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9206X50 | 25,29 € | 30,60 € | M6 | 50 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9206X60 | 25,29 € | 30,60 € | M6 | 60 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9208X15 | 24,50 € | 29,65 € | M8 | 15 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9208X20 | 24,50 € | 29,65 € | M8 | 20 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9208X25 | 24,50 € | 29,65 € | M8 | 25 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9208X30 | 24,50 € | 29,65 € | M8 | 30 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9208X40 | 25,29 € | 30,60 € | M8 | 40 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9208X50 | 25,29 € | 30,60 € | M8 | 50 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9208X60 | 25,29 € | 30,60 € | M8 | 60 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9210X20 | 24,50 € | 29,65 € | M10 | 20 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Veľkosť | X | L | D | d1 | d2 | B | A | A1 | H | H1 | H2 | H3 | H4 | Počet zubov |
| 06464-9210X25 | 24,50 € | 29,65 € | M10 | 25 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9210X30 | 24,50 € | 29,65 € | M10 | 30 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9210X40 | 25,29 € | 30,60 € | M10 | 40 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9210X50 | 25,29 € | 30,60 € | M10 | 50 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9210X60 | 25,29 € | 30,60 € | M10 | 60 | 13,5 | 18,5mm | 19mm | 10mm | 65mm | 74,5mm | 32mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 20 | |||
| 06464-9308X20 | 29,44 € | 35,62 € | M8 | 20 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9308X25 | 29,44 € | 35,62 € | M8 | 25 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9308X30 | 29,44 € | 35,62 € | M8 | 30 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9308X40 | 30,26 € | 36,61 € | M8 | 40 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9308X50 | 30,26 € | 36,61 € | M8 | 50 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9308X60 | 30,26 € | 36,61 € | M8 | 60 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9310X20 | 29,44 € | 35,62 € | M10 | 20 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9310X25 | 29,44 € | 35,62 € | M10 | 25 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9310X30 | 29,44 € | 35,62 € | M10 | 30 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9310X40 | 30,26 € | 36,61 € | M10 | 40 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| Objednávací kód | Základná cena bez DPH | Koncová cena s DPH | Objednať | CAD | Veľkosť | X | L | D | d1 | d2 | B | A | A1 | H | H1 | H2 | H3 | H4 | Počet zubov |
| 06464-9310X50 | 30,26 € | 36,61 € | M10 | 50 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| 06464-9310X60 | 30,26 € | 36,61 € | M10 | 60 | 16 | 21mm | 22mm | 11mm | 80mm | 91mm | 41,5mm | 10mm | 24mm | 54,5mm | 58,5mm | 22 | |||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||||
