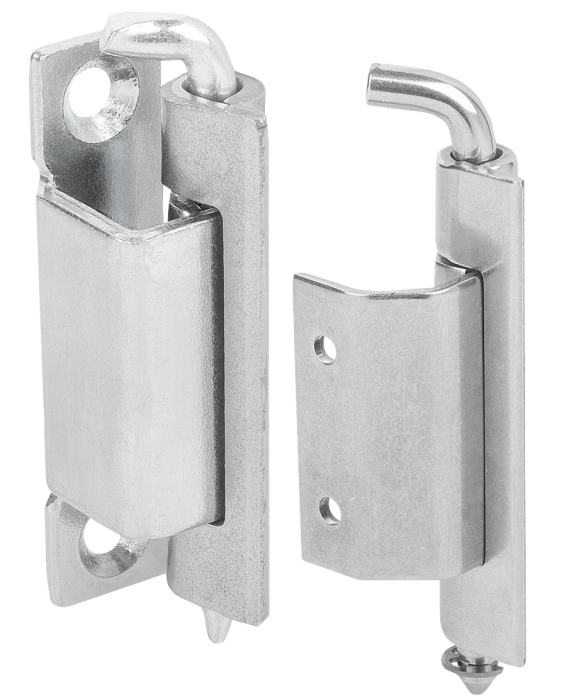

Concealed hinges steel or stainless steel, folded edge up to 20 mm
Product description
| Code: | 27878 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
Download
Data sheet norelem 27878 Concealed hinges steel or stainless steel, folded edge up to 20 mm Datový list norelem 27878 Skryté závěsy, ocel nebo nerezová ocel, zkosení do 20 mm
Detail zavřít
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Design / Version | Base Material | Product type | Pin Material | Upevnění rámové části | Materiál rámové části | Povrchová úprava rámové části | Version | B | B1 | B2 | B3 | B4 | B5 | B6 | D | D1 | H | H1 | H2 | H3 | H4 | H5 | H6 | L | L1 | L2 | L3 | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27878-0111 | upon request | upon request | A | steel | — | stainless steel 1.4305 | screw on | steel | electro zinc-plated | pressed in | 12mm | 12.3 | 4 | 16 | 5.3 | 7 | 14 | M5 | 5.5 | 60 | 71.8 | 45 | 9.3 | 36 | 13 | 16 | 7.3 | 10.5 | 62 | 45 | 1.5 | ||
| 27878-0212 | upon request | upon request | B | steel | — | steel | screw on | steel | electro zinc-plated | without slot | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 75 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-0213 | upon request | upon request | B | steel | — | steel | screw on | steel | untreated | mit Nut inkl. Sicherungsscheibe | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-0214 | upon request | upon request | B | steel | — | steel | screw on | steel | untreated | mit Nut inkl. O-Ring | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-0222 | upon request | upon request | B | steel | — | steel | — | steel | untreated | without slot | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 75 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-0223 | upon request | upon request | B | steel | — | steel | — | steel | untreated | mit Nut inkl. Sicherungsscheibe | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 78 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-0224 | upon request | upon request | B | steel | — | steel | — | steel | untreated | mit Nut inkl. O-Ring | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 78 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-0312 | upon request | upon request | C | steel | — | steel | screw on | steel | electro zinc-plated | without slot | 17mm | 14.95 | 5.4 | 20 | 6 | 8 | — | 5 | — | 67 | 75 | 53 | 60 | 36 | — | — | 15 | — | 1 | — | 2.5 | ||
| 27878-0313 | upon request | upon request | C | steel | — | steel | screw on | steel | electro zinc-plated | mit Nut inkl. Sicherungsscheibe | 17mm | 14.95 | 5.4 | 20 | 6 | 8 | — | 5 | — | 67 | 78 | 53 | 60 | 36 | — | — | 15 | — | 1 | — | 2.5 | ||
| 27878-0314 | upon request | upon request | C | steel | — | steel | screw on | steel | electro zinc-plated | mit Nut inkl. O-Ring | 17mm | 14.95 | 5.4 | 20 | 6 | 8 | — | 5 | — | 67 | 78 | 53 | 60 | 36 | — | — | 15 | — | 1 | — | 2.5 | ||
| 27878-1212 | upon request | upon request | B | stainless steel A2 | — | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | bright | without slot | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 75 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-1213 | upon request | upon request | B | stainless steel A2 | — | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | bright | mit Nut inkl. Sicherungsscheibe | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-1214 | upon request | upon request | B | stainless steel A2 | — | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | bright | mit Nut inkl. O-Ring | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-1222 | upon request | upon request | B | stainless steel A2 | — | Stainless steel 1.4301 | — | Stainless steel 1.4301 | bright | without slot | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 75 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-1223 | upon request | upon request | B | stainless steel A2 | — | Stainless steel 1.4301 | — | Stainless steel 1.4301 | bright | mit Nut inkl. Sicherungsscheibe | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 78 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Design / Version | Base Material | Product type | Pin Material | Upevnění rámové části | Materiál rámové části | Povrchová úprava rámové části | Version | B | B1 | B2 | B3 | B4 | B5 | B6 | D | D1 | H | H1 | H2 | H3 | H4 | H5 | H6 | L | L1 | L2 | L3 | S |
| 27878-1224 | upon request | upon request | B | stainless steel A2 | — | Stainless steel 1.4301 | — | Stainless steel 1.4301 | bright | mit Nut inkl. O-Ring | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 78 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-1312 | upon request | upon request | C | stainless steel A2 | — | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | bright | without slot | 17mm | 14.95 | 5.4 | 20 | 6 | 8 | — | 5 | — | 67 | 75 | 53 | 60 | 36 | — | — | 15 | — | 1 | — | 2.5 | ||
| 27878-1313 | upon request | upon request | C | stainless steel A2 | — | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | bright | mit Nut inkl. Sicherungsscheibe | 17mm | 14.95 | 5.4 | 20 | 6 | 8 | — | 5 | — | 67 | 78 | 53 | 60 | 36 | — | — | 15 | — | 1 | — | 2.5 | ||
| 27878-1314 | upon request | upon request | C | stainless steel A2 | — | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | bright | mit Nut inkl. O-Ring | 17mm | 14.95 | 5.4 | 20 | 6 | 8 | — | 5 | — | 67 | 78 | 53 | 60 | 36 | — | — | 15 | — | 1 | — | 2.5 | ||
| 27878-1411 | upon request | upon request | D | stainless steel A2 | — | stainless steel 1.4305 | screw on | Stainless steel 1.4301 | bright | pressed in | 12mm | 12.2 | 4 | 16 | 5 | 7.2 | 14 | M5 | 5.3 | 60 | — | 45 | — | 36 | 13.5 | 15 | 7.3 | 10.5 | 62 | 45 | 1.5 | ||
| 27878-2213 | upon request | upon request | B | stainless steel A4 | — | Stainless steel 1.4401 | screw on | Stainless steel 1.4401 | bright | mit Nut inkl. Sicherungsscheibe | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-2214 | upon request | upon request | B | stainless steel A4 | — | Stainless steel 1.4401 | screw on | Stainless steel 1.4401 | bright | mit Nut inkl. O-Ring | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-02121 | upon request | upon request | B | steel | intensified | steel | screw on | steel | electro zinc-plated | without slot | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 75 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-02131 | upon request | upon request | B | steel | intensified | steel | screw on | steel | electro zinc-plated | mit Nut inkl. Sicherungsscheibe | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-02141 | upon request | upon request | B | steel | intensified | steel | screw on | steel | electro zinc-plated | mit Nut inkl. O-Ring | —mm | 17.5 | 4.6 | 18 | 12 | — | — | 5 | M4 | — | 78 | 20 | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-02221 | upon request | upon request | B | steel | intensified | steel | — | steel | untreated | without slot | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 75 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-02231 | upon request | upon request | B | steel | intensified | steel | — | steel | electro zinc-plated | mit Nut inkl. Sicherungsscheibe | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 78 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| 27878-02241 | upon request | upon request | B | steel | intensified | steel | — | steel | electro zinc-plated | mit Nut inkl. O-Ring | —mm | 17.5 | 4.6 | 18 | — | — | — | 5 | — | — | 78 | — | 60 | 36 | — | — | 14.6 | 2.5 | — | — | 2 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | |||||||||||||||||||||||||||||||||
