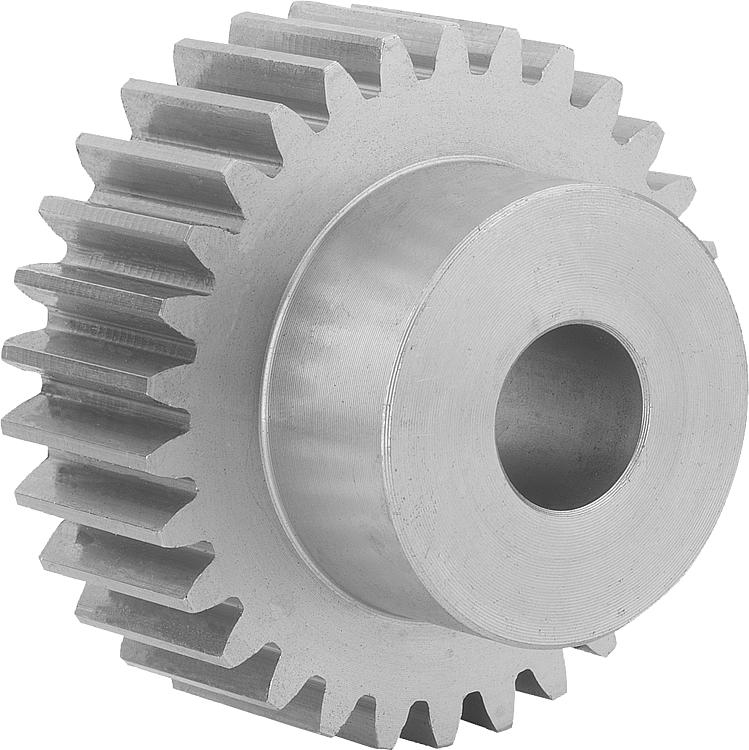

Spur gears, stainless steel, module 1.5, milled teeth, straight toothing, pressure angle 20°
Product description
| Code: | 22400-20 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Download
Datový list 22400–20 Čelní ozubená kola z nerezové oceli, modul 1,5 frézované ozubení, přímé ozubení, úhel záběru 20°
Detail zavřít
| Order code | Basic price excluding VAT | Koncová cena s DPH | Order | CAD | Design / Version | Design Type | Module | Number of Teeth | B | D | D1 | D2 max. | D3 | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22400-20-1115170012 | 28,78 € | 34,82 € | A | s nábojem | 1,5 | 12 | 17 | 21 | 18 | 8 | 14 | 30 | ||
| 22400-20-1115170013 | 28,82 € | 34,87 € | A | s nábojem | 1,5 | 13 | 17 | 22,5 | 19,5 | 8 | 15 | 30 | ||
| 22400-20-1115170014 | 29,53 € | 35,73 € | A | s nábojem | 1,5 | 14 | 17 | 24 | 21 | 8 | 17 | 30 | ||
| 22400-20-1115170015 | 30,26 € | 36,61 € | A | s nábojem | 1,5 | 15 | 17 | 25,5 | 22,5 | 8 | 18 | 30 | ||
| 22400-20-1115170018 | 32,89 € | 39,80 € | A | s nábojem | 1,5 | 18 | 17 | 30 | 27 | 8 | 20 | 30 | ||
| 22400-20-1115170020 | 36,22 € | 43,83 € | A | s nábojem | 1,5 | 20 | 17 | 33 | 30 | 8 | 25 | 30 | ||
| 22400-20-1115170024 | 41,31 € | 49,99 € | A | s nábojem | 1,5 | 24 | 17 | 39 | 36 | 10 | 25 | 30 | ||
| 22400-20-1115170025 | 42,47 € | 51,39 € | A | s nábojem | 1,5 | 25 | 17 | 40,5 | 37,5 | 10 | 25 | 30 | ||
| 22400-20-1115170030 | 48,32 € | 58,47 € | A | s nábojem | 1,5 | 30 | 17 | 48 | 45 | 12 | 30 | 30 | ||
| 22400-20-1115170040 | 58,17 € | 70,39 € | A | s nábojem | 1,5 | 40 | 17 | 63 | 60 | 12 | 40 | 30 | ||
| 22400-20-1115170050 | 73,81 € | 89,31 € | A | s nábojem | 1,5 | 50 | 17 | 78 | 75 | 14 | 50 | 30 | ||
| 22400-20-1115170060 | 87,42 € | 105,78 € | A | s nábojem | 1,5 | 60 | 17 | 93 | 90 | 16 | 60 | 30 | ||
| 22400-20-1115170070 | 111,68 € | 135,13 € | A | s nábojem | 1,5 | 70 | 17 | 108 | 105 | 16 | 70 | 30 | ||
| 22400-20-1215170080 | 136,19 € | 164,79 € | B | bez náboje | 1,5 | 80 | 17 | 123 | 120 | 16 | ||||
| 22400-20-1215170120 | 357,18 € | 432,19 € | B | bez náboje | 1,5 | 120 | 17 | 183 | 180 | 16 | ||||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||||
