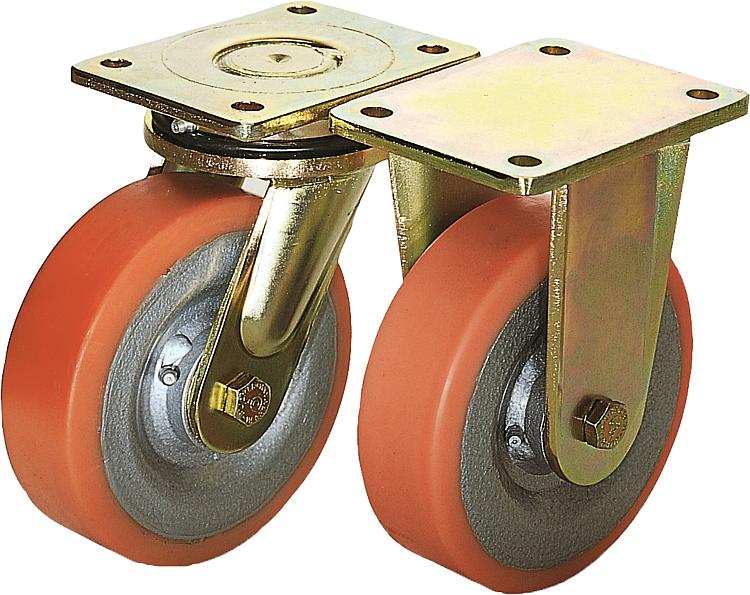

Steel welded swivel and fixed castors, heavy-duty design
Product description
| Code: | 95032 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Download
Datový list 95032 Ocelová svařovaná otočná a pevná kolečka těžké provedení
Detail zavřít
| Order code | Basic price excluding VAT | Koncová cena s DPH | Order | CAD | Design / Version | Wheel bearing | A | B | B1 | B2 | B3 | L | L1 | H | D | R | R1 | Load capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95032-16050 | 270,63 € | 327,46 € | otočná kladka | kuličková ložiska | 55mm | 110mm | 80 | 75 | 50 | 140 | 105 | 205mm | 11 | 135 | 160 | 700 | ||
| 95032-20050 | 293,89 € | 355,61 € | otočná kladka | kuličková ložiska | 60mm | 110mm | 80 | 75 | 50 | 140 | 105 | 245mm | 11 | 160 | 200 | 1000 | ||
| 95032-25060 | 457,22 € | 553,24 € | otočná kladka | kuličková ložiska | 75mm | 140mm | 105 | – | 60 | 175 | 140 | 305mm | 14 | 200 | 250 | 1350 | ||
| 95032-160501 | 184,52 € | 223,27 € | pevná kladka | kuličková ložiska | mm | 110mm | 80 | 75 | 50 | 140 | 105 | 205mm | 11 | 160 | 700 | |||
| 95032-160502 | 311,31 € | 376,69 € | stop-top | kuličková ložiska | 55mm | 110mm | 80 | 75 | 50 | 140 | 105 | 205mm | 11 | 135 | 160 | 700 | ||
| 95032-200501 | 209,55 € | 253,56 € | pevná kladka | kuličková ložiska | 110mm | 80 | 75 | 50 | 140 | 105 | 245mm | 11 | 200 | 1000 | ||||
| 95032-200502 | 332,33 € | 402,12 € | stop-top | kuličková ložiska | 60mm | 110mm | 80 | 75 | 50 | 140 | 105 | 245mm | 11 | 160 | 200 | 1000 | ||
| 95032-250601 | 328,62 € | 397,63 € | pevná kladka | kuličková ložiska | 140mm | 105 | – | 60 | 175 | 140 | 305mm | 14 | 250 | 1350 | ||||
| 95032-250602 | 555,81 € | 672,53 € | stop-top | kuličková ložiska | 75mm | 140mm | 105 | – | 60 | 175 | 140 | 305mm | 14 | 200 | 250 | 1350 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||||||||
