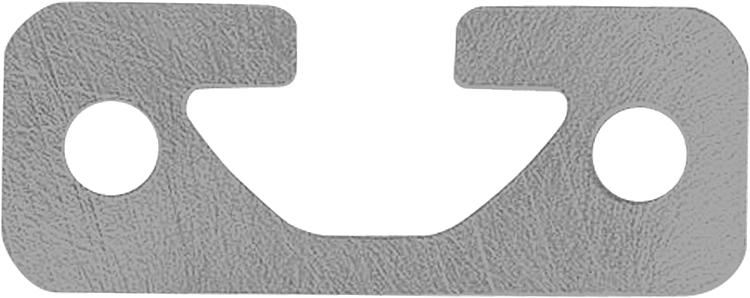

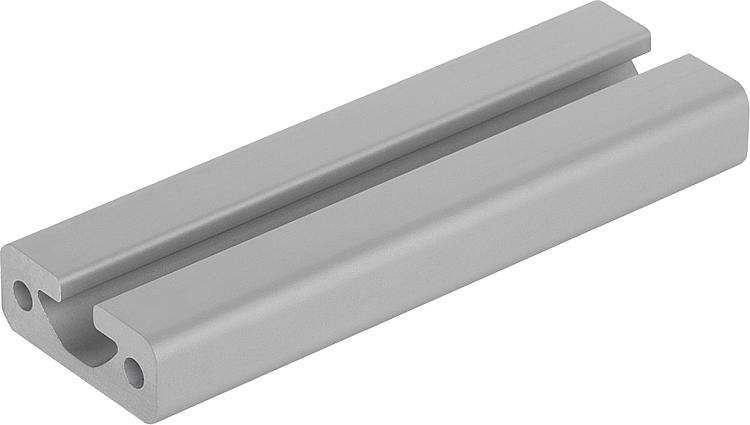

Aluminium profiles 16×40 type I
Product description
| Code: | 10048 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
zavřít
Download
Data sheet norelem 10048 Aluminium profiles 16×40 type I Datový list norelem 10048 Hliníkové profily 16×40 typ I Technical data sheet norelem 10048 Aluminium profiles 16×40 type I
Detail zavřít

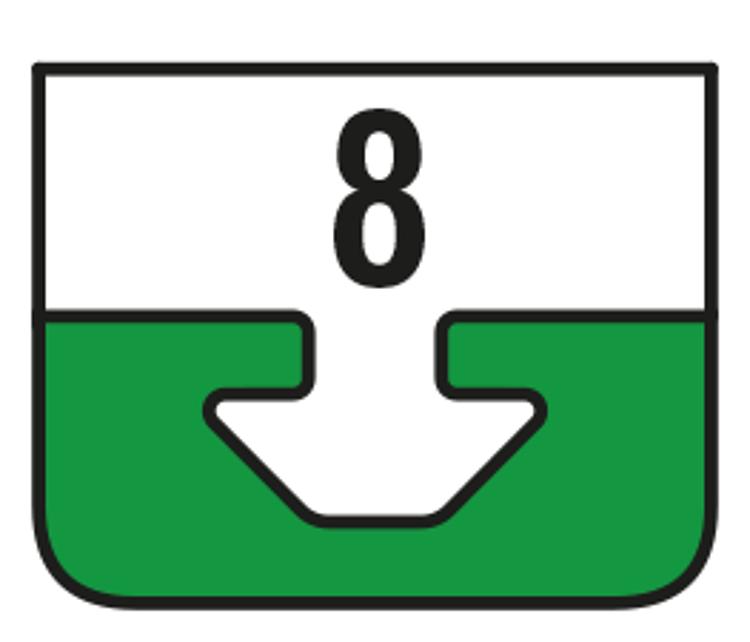

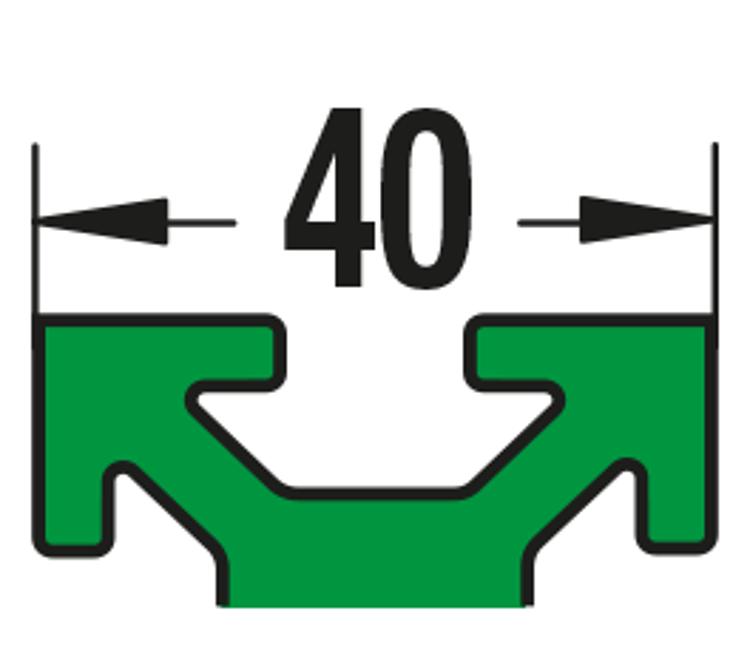

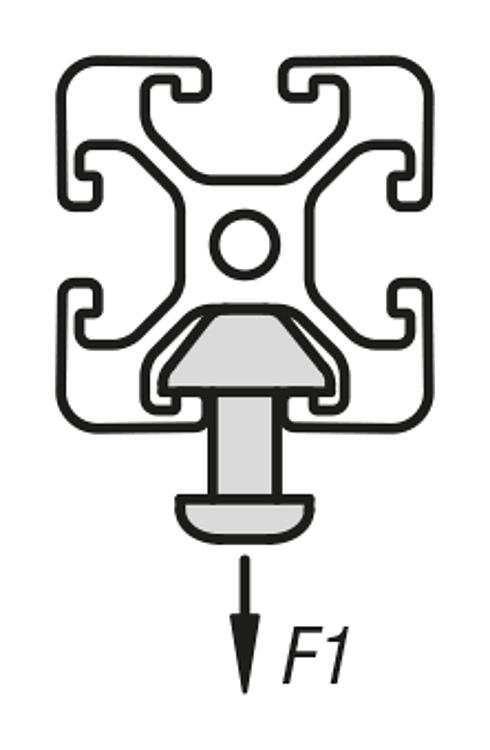

| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Groove width | Profile | Length | Ix cm⁴ | Iy cm⁴ | Wx cm³ | Wy cm³ | Profile area cm² | F1 max. (kN) | Weight approx. kg/m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10048-081640X1000 | 26,43 € | 31,98 € | 8 | 16×40 | 1000 | 1,06 | 6,75 | 1,25 | 3,37 | 4,15 | 5 | 1,12 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||||
