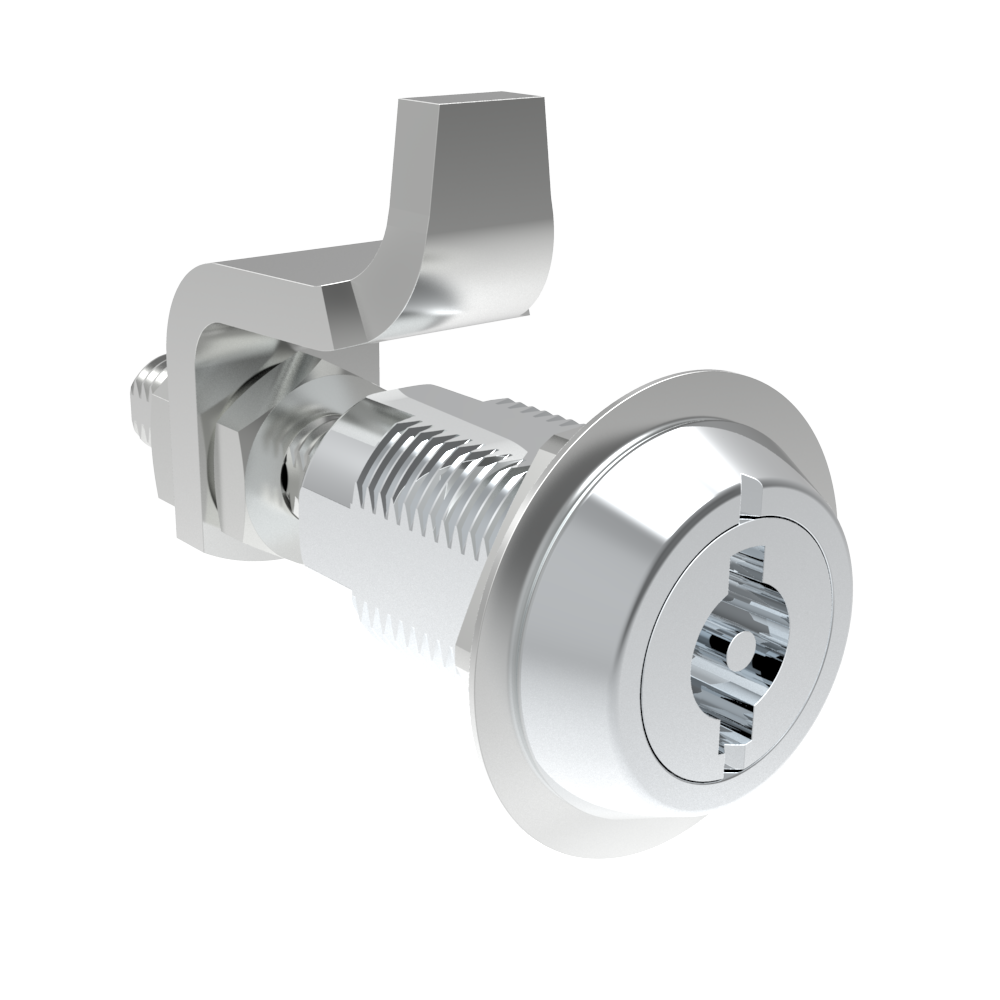

E3–12 – VISE ACTION® Compression Latches

E3-12 – VISE ACTION® Compression Latches

Product description

Code: E3-12
Manufacturer: Southco
Prices: are listed at the bottom of the page in the product variant table, or upon request via the form below.
Delivery date:

normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information.
zavřít

3D modely




E3-12 – VISE ACTION® Compression Latches | E3-12

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.


Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE
zavřít

Poptat cenu
Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE

Download

katalogový list katalogový list
technický list technický list

Detail zavřít

Clear filter
Order code Basic price excluding VAT Koncová cena s DPH Order CAD Material Finish Access Restriction Color/Appearance Door Thickness Range Head Style Grip Type Grip Range Cam Attached Rotation Size Series
E3-12-1 3,62 € 4,38 €
.step Zinc AlloyNickel Plated
E3-12-10 78,47 € 94,95 €
.step Stainless SteelPassivatedToolSilver1–18mm3mm Hex RecessAdjustable71,30–81,20mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-11 27,64 € 33,44 €
.step Zinc AlloyChrome PlatedToolBright1–18mm3mm Hex RecessAdjustable66,30–76,20mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-15 25,21 € 30,50 €
.step Zinc AlloyPowder CoatToolBlack1–18mm3mm Hex RecessAdjustable66,30–76,20mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-17 27,64 € 33,44 €
3DZinc AlloyPowder CoatToolSilver1–18mm3mm Hex RecessAdjustable66,30–76,20mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-20 78,47 € 94,95 €
.step Stainless SteelPassivatedToolSilver1–18mm3mm Hex RecessAdjustable57,60–73,30mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-21 27,64 € 33,44 €
.step Zinc AlloyChrome PlatedToolBright1–18mm3mm Hex RecessAdjustable52,60–68,30mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-25 25,21 € 30,50 €
.step Zinc AlloyPowder CoatToolBlack1–18mm3mm Hex RecessAdjustable52,60–68,30mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-27 27,64 € 33,44 €
.step Zinc AlloyPowder CoatToolSilver1–18mm3mm Hex RecessAdjustable52,60–68,30mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-30 78,47 € 94,95 €
.step Stainless SteelPassivatedToolSilver1–18mm3mm Hex RecessAdjustable43,90–59,60mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-31 27,64 € 33,44 €
.step Zinc AlloyChrome PlatedToolBright1–18mm3mm Hex RecessAdjustable38,90–54,60mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-35 25,21 € 30,50 €
.step Zinc AlloyPowder CoatToolBlack1–18mm3mm Hex RecessAdjustable38,90–54,60mmNoType A – Turn Clockwise to Latch19,1mm
E3-12-37 27,64 € 33,44 €
3DZinc AlloyPowder CoatToolSilver1–18mm3mm Hex RecessAdjustable38,90–54,60mmNoType A – Turn Clockwise to Latch19,1mm
The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you.

❱
