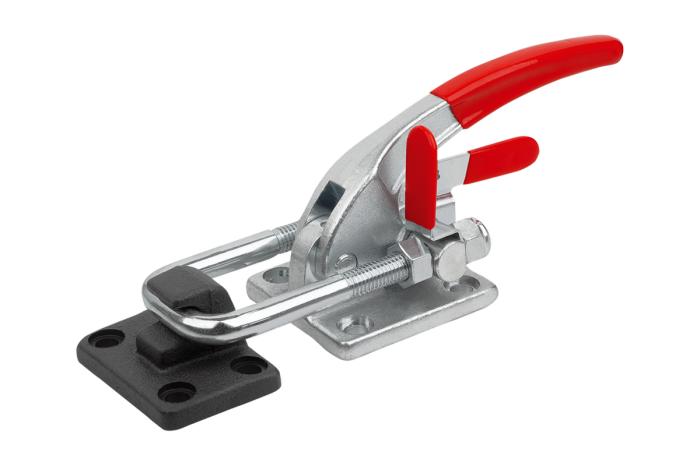

Latch clamps, steel or stainless steel, horizontal, heavy-duty version with catch plate and safety interlock, up to 34000N
Product description
| Code: | 05827-02 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | typically approximately 7–10 days from the date of order, depending on the quantity and current stock availability in the central warehouse. Specific delivery dates are verified and confirmed by email on an individual order basis. If the goods are unavailable, the order may be cancelled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
Download
Datový list norelem 05827–02 Ocelový nebo nerezový třmenový upínač, horizontální, těžká konstrukce s opěrným držákem a bezpečnostní pojistkou do 34000 N
Detail zavřít

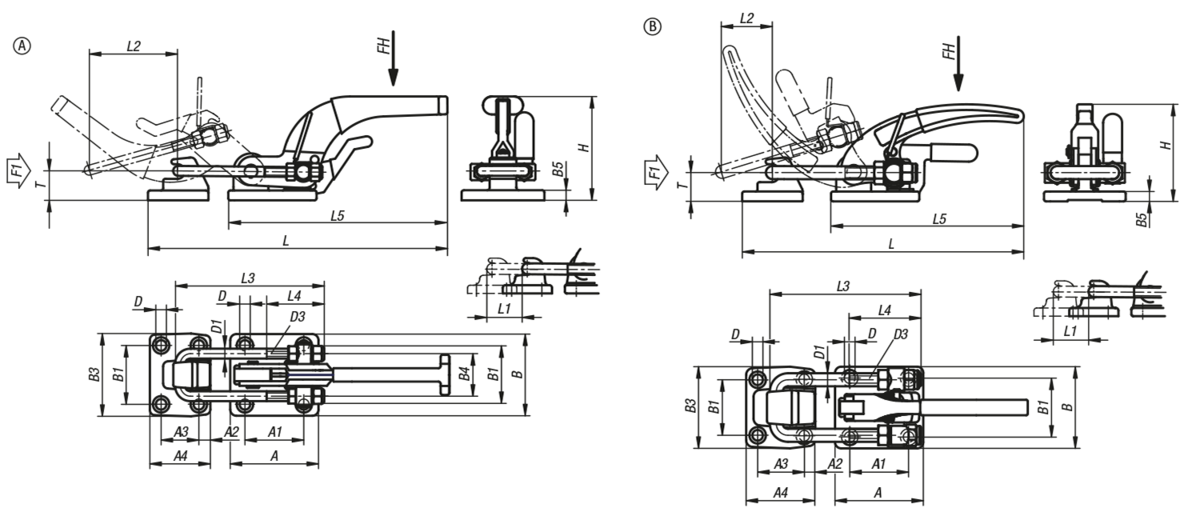

| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | F1 | Materiál základní těleso | Design / Version | A | A1 | A2 | A3 | A4 | B | B1 | B3 | B4 | B5 | D | D1 | H | L1 | Upínací dráha L2 | L3 | L4 | L5 | T | Ruční síla FH N | Rozsah nastavení L min. | Rozsah nastavení L max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 05827-02-1018180 | 138,77 € | 167,91 € | 18180 | steel | A | 85.5 | 57.2 | 11.2 | 34.9 | 57.2 | 79.4 | 57.2 | 80.5 | 41.4 | 9.6 | 10.3 | 9.6 | 101.6mm | 22.8 | 87 | 145 | 56 | 212.8 | 28.6 | 300 | 274.5 | 297.3 | ||
| 05827-02-1034000 | 169,21 € | 204,74 € | 34000 | steel | B | 85.5 | 57.2 | 11.2 | 34.9 | 57.2 | 79.4 | 57.2 | 80.5 | 54 | 9.6 | 10.3 | 12.7 | 93.8mm | 28.4 | 50 | 147 | 70 | 187.7 | 28.6 | 500 | 249.6 | 278 | ||
| 05827-02-1134000 | 328,30 € | 397,24 € | 34000 | stainless steel | B | 85.5 | 57.2 | 11.2 | 34.9 | 57.2 | 79.4 | 57.2 | 80.5 | 54 | 9.6 | 10.3 | 12.7 | 93.8mm | 28.4 | 50 | 147 | 70 | 187.7 | 28.6 | 500 | 249.6 | 278 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | |||||||||||||||||||||||||||||
