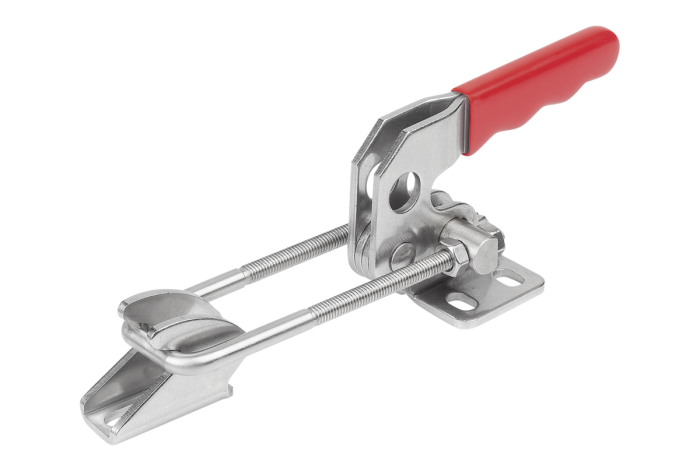

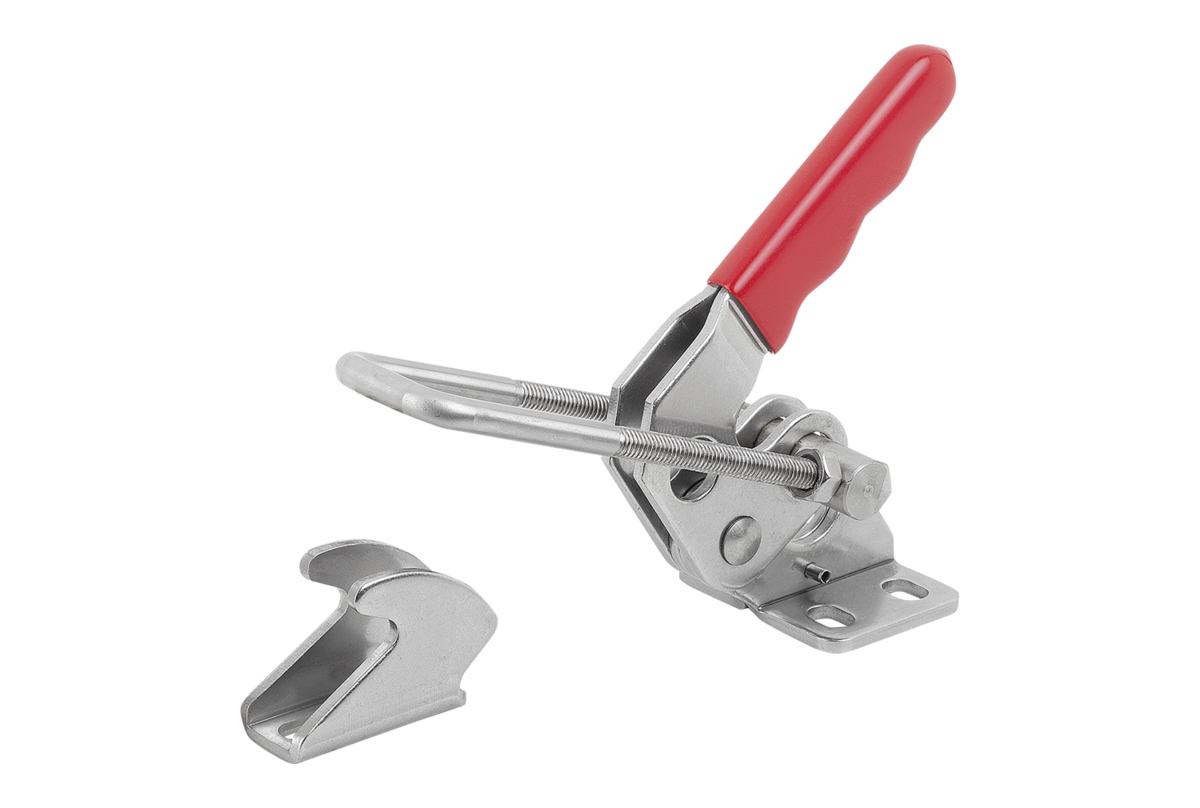

Latch clamps, steel or stainless steel, horizontal, with catch plate and long adjustment path
Product description
| Code: | 05825-05 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | typically approximately 7–10 days from the date of order, depending on the quantity and current stock availability in the central warehouse. Specific delivery dates are verified and confirmed by email on an individual order basis. If the goods are unavailable, the order may be cancelled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
Download
Datový list norelem 05825–05 Třmenové upínače z oceli nebo nerezové oceli, horizontální s protikusem a dlouhým upínacím rozsahem
Detail zavřít

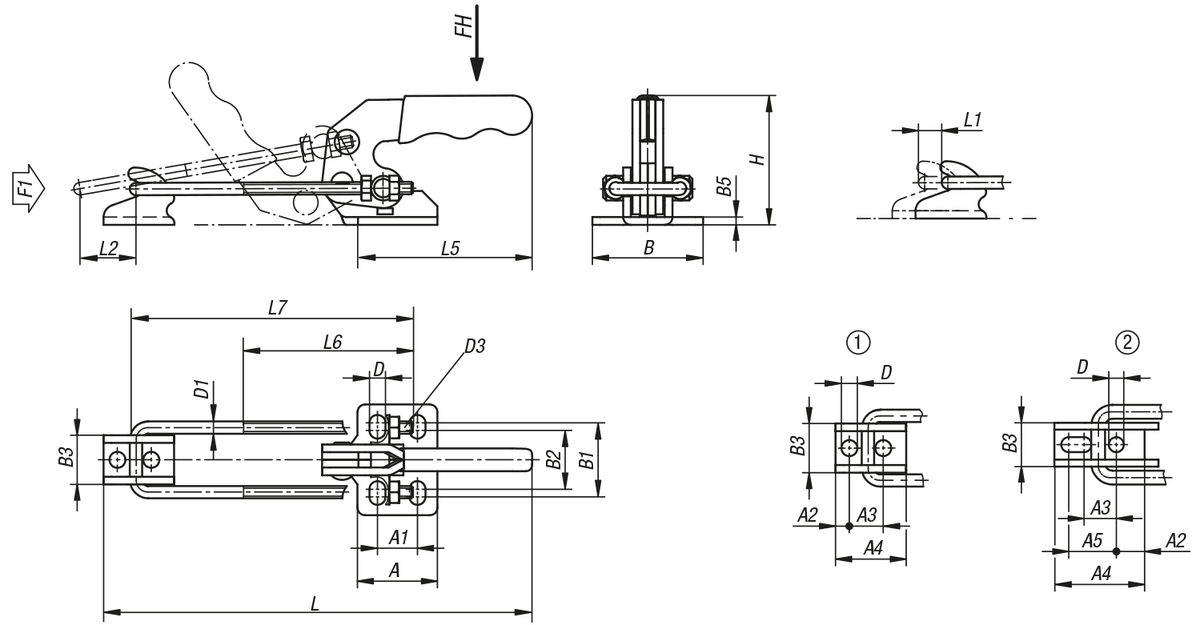

| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Materiál základní těleso | Děrová šablona | Síla v tahu F1 N | Ruční síla FH N | A | A1 | A2 | A3 | A4 | A5 | B | B1 | B2 | B3 | B5 | D | D1 | H | D3 | Rozsah nastavení L min. | Rozsah nastavení L max. | L1 | Upínací dráha L2 | L5 | L6 | L7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 05825-05-02000 | 21,69 € | 26,24 € | ocel | 1 | 2000 | 100 | 26 | 13 | 4.5 | 11 | 23 | – | 36 | 24 | 19 | 16 | 2.5 | 5.2 | 4 | 42 | M4 | 101.7 | 142.3 | 40.6 | 16 | 68.3 | 55 | 92 | ||
| 05825-05-04000 | 31,22 € | 37,78 € | ocel | 2 | 4000 | 150 | 35 | 19 | 12.2 | 14 | 39.1 | 20.6 | 48 | 32 | 24.8 | 19 | 3 | 6.5 | 6 | 60.5 | M6 | 142.4 | 192.2 | 49.8 | 24 | 103.7 | 70 | 113.5 | ||
| 05825-05-07000 | 50,68 € | 61,32 € | ocel | 1 | 7000 | 200 | 51 | 32 | 8 | 19 | 40 | – | 60 | 45 | 36 | 28 | 4 | 8.5 | 8 | 85.6 | M8 | 177.7 | 234 | 56.3 | 32 | 119 | 85 | 150 | ||
| 05825-05-12000 | 35,39 € | 42,82 € | nerezová ocel | 1 | 2000 | 100 | 26 | 13 | 4.5 | 11 | 23 | – | 36 | 24 | 19 | 16 | 2.5 | 5.2 | 4 | 42 | M4 | 101.7 | 142.3 | 40.6 | 16 | 68.3 | 55 | 92 | ||
| 05825-05-14000 | 56,75 € | 68,67 € | nerezová ocel | 2 | 4000 | 150 | 35 | 19 | 12.2 | 14 | 39.1 | 20.6 | 48 | 32 | 24.8 | 19 | 3 | 6.5 | 6 | 60.5 | M6 | 142.4 | 192.2 | 49.8 | 24 | 103.7 | 70 | 113.5 | ||
| 05825-05-17000 | 123,72 € | 149,70 € | nerezová ocel | 1 | 7000 | 200 | 51 | 32 | 8 | 19 | 40 | – | 64 | 45 | 36 | 28 | 4 | 8.6 | 8 | 76.6 | M8 | 177.7 | 234 | 56.3 | 32 | 119 | 85 | 150 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||||||||||||||||||||
