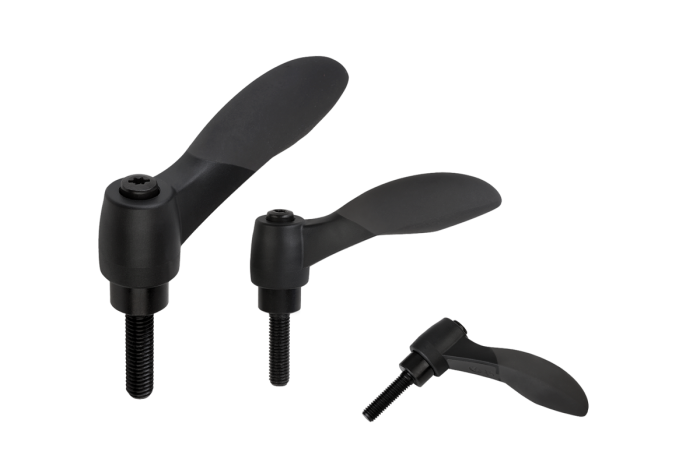

Clamping levers 2K with external thread, threaded pin black oxidised steel

Product description

Code:	06614
Manufacturer:	norelem
Prices:	are listed at the bottom of the page in the product variant table, or upon request via the form below.
Delivery date:	normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information.
	The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently.

zavřít

Download

Datový list norelem 06614 Upínací páka 2K z oceli, s vnějším závitem, se závitovou vložkou z oceli, brynýrovaná

Detail zavřít

Clear filter

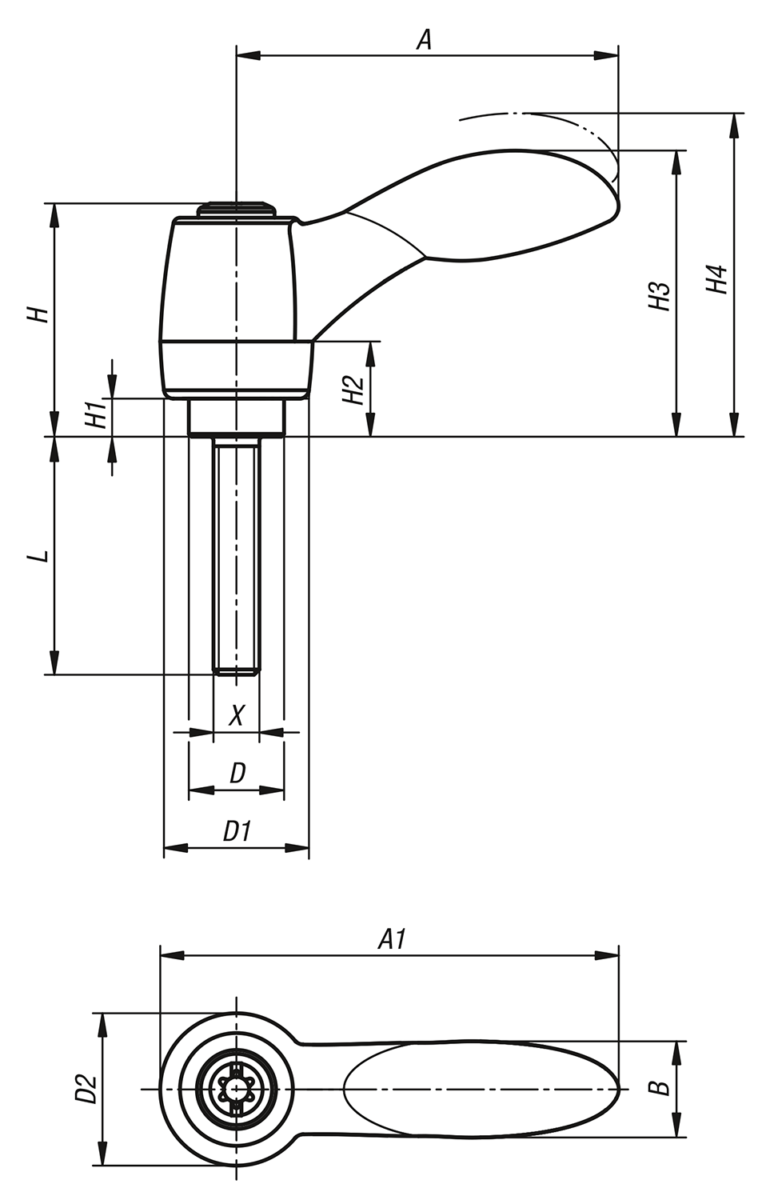

Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	Počet zubů	L
06614-10501X10	4,37 €	5,29 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	10
06614-10501X15	4,37 €	5,29 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	15
06614-10501X20	4,37 €	5,29 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	20
06614-10501X25	4,37 €	5,29 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	25
06614-10501X30	4,37 €	5,29 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	30
06614-10501X35	4,78 €	5,78 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	35
06614-10501X40	4,78 €	5,78 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	40
06614-10501X45	4,78 €	5,78 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	45
06614-10501X50	4,78 €	5,78 €		3D	M5	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	50
06614-10601X10	4,37 €	5,29 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	10
06614-10601X15	4,37 €	5,29 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	15
06614-10601X20	4,37 €	5,29 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	20
06614-10601X25	4,37 €	5,29 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	25
06614-10601X30	4,37 €	5,29 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	30
06614-10601X35	4,78 €	5,78 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	35
Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	Počet zubů	L
06614-10601X40	4,78 €	5,78 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	40
06614-10601X45	4,78 €	5,78 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	45
06614-10601X50	4,78 €	5,78 €		3D	M6	10	15	16	24.5	4	10	30	33.5	40.1	48.1	10.1	16	50
06614-20601X15	5,37 €	6,50 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	15
06614-20601X20	5,37 €	6,50 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	20
06614-20601X25	5,37 €	6,50 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	25
06614-20601X30	5,37 €	6,50 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	30
06614-20601X35	5,76 €	6,97 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	35
06614-20601X40	5,76 €	6,97 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	40
06614-20601X45	5,76 €	6,97 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	45
06614-20601X50	5,76 €	6,97 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	50
06614-20601X55	5,76 €	6,97 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	55
06614-20601X60	5,76 €	6,97 €		3D	M6	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	60
06614-20801X15	5,37 €	6,50 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	15
06614-20801X20	5,37 €	6,50 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	20
Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	Počet zubů	L
06614-20801X25	5,37 €	6,50 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	25
06614-20801X30	5,37 €	6,50 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	30
06614-20801X35	5,76 €	6,97 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	35
06614-20801X40	5,76 €	6,97 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	40
06614-20801X45	5,76 €	6,97 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	45
06614-20801X50	5,76 €	6,97 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	50
06614-20801X55	5,76 €	6,97 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	55
06614-20801X60	5,76 €	6,97 €		3D	M8	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	60
06614-21001X15	5,37 €	6,50 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	15
06614-21001X20	5,37 €	6,50 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	20
06614-21001X25	5,37 €	6,50 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	25
06614-21001X30	5,37 €	6,50 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	30
06614-21001X35	5,76 €	6,97 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	35
06614-21001X40	5,76 €	6,97 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	40
06614-21001X45	5,76 €	6,97 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	45
Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	Počet zubů	L
06614-21001X50	5,76 €	6,97 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	50
06614-21001X55	5,76 €	6,97 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	55
06614-21001X60	5,76 €	6,97 €		3D	M10	13.5	17.5	19	28.5	6.5	12.5	41.2	45.2	64.9	74.4	17.6	20	60
06614-30801X15	6,18 €	7,48 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	15
06614-30801X20	6,18 €	7,48 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	20
06614-30801X25	6,18 €	7,48 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	25
06614-30801X30	6,18 €	7,48 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	30
06614-30801X35	6,69 €	8,09 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	35
06614-30801X40	6,69 €	8,09 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	40
06614-30801X45	6,69 €	8,09 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	45
06614-30801X50	6,69 €	8,09 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	50
06614-30801X55	6,69 €	8,09 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	55
06614-30801X60	6,69 €	8,09 €		3D	M8	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	60
06614-31001X15	6,18 €	7,48 €		3D	M10	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	15
06614-31001X20	6,18 €	7,48 €		3D	M10	16	21	22	37	10	17	51.6	56.1	80.2	91.2	20.7	22	20
The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you.
