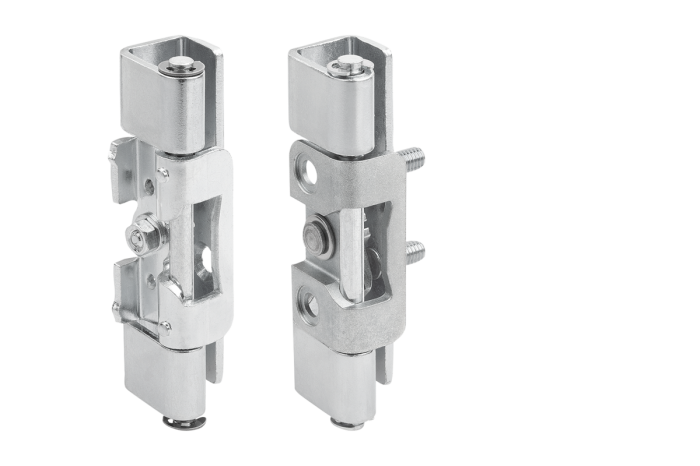

Concealed hinges die-cast zinc, steel or stainless steel with lock, folded edge 23 mm

Product description

Code:	K2504
Manufacturer:	Kipp
Prices:	are listed at the bottom of the page in the product variant table, or upon request via the form below.
Delivery date:	typically approximately 7–10 days from the date of order, depending on the quantity and current stock availability in the central warehouse. Specific delivery dates are verified and confirmed by email on an individual order basis. If the goods are unavailable, the order may be cancelled. More information.
	The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently.

zavřít

Download

Data sheet Kipp K2504 Concealed hinges die-cast zinc, steel or stainless steel with lock, folded edge 23 mm

Datový list Kipp K2504 Skryté závěsy ze zinkového tlakového odlitku, oceli nebo nerezové oceli se zástrčkou, zkosení 23 mm

Detail zavřít

Clear filter

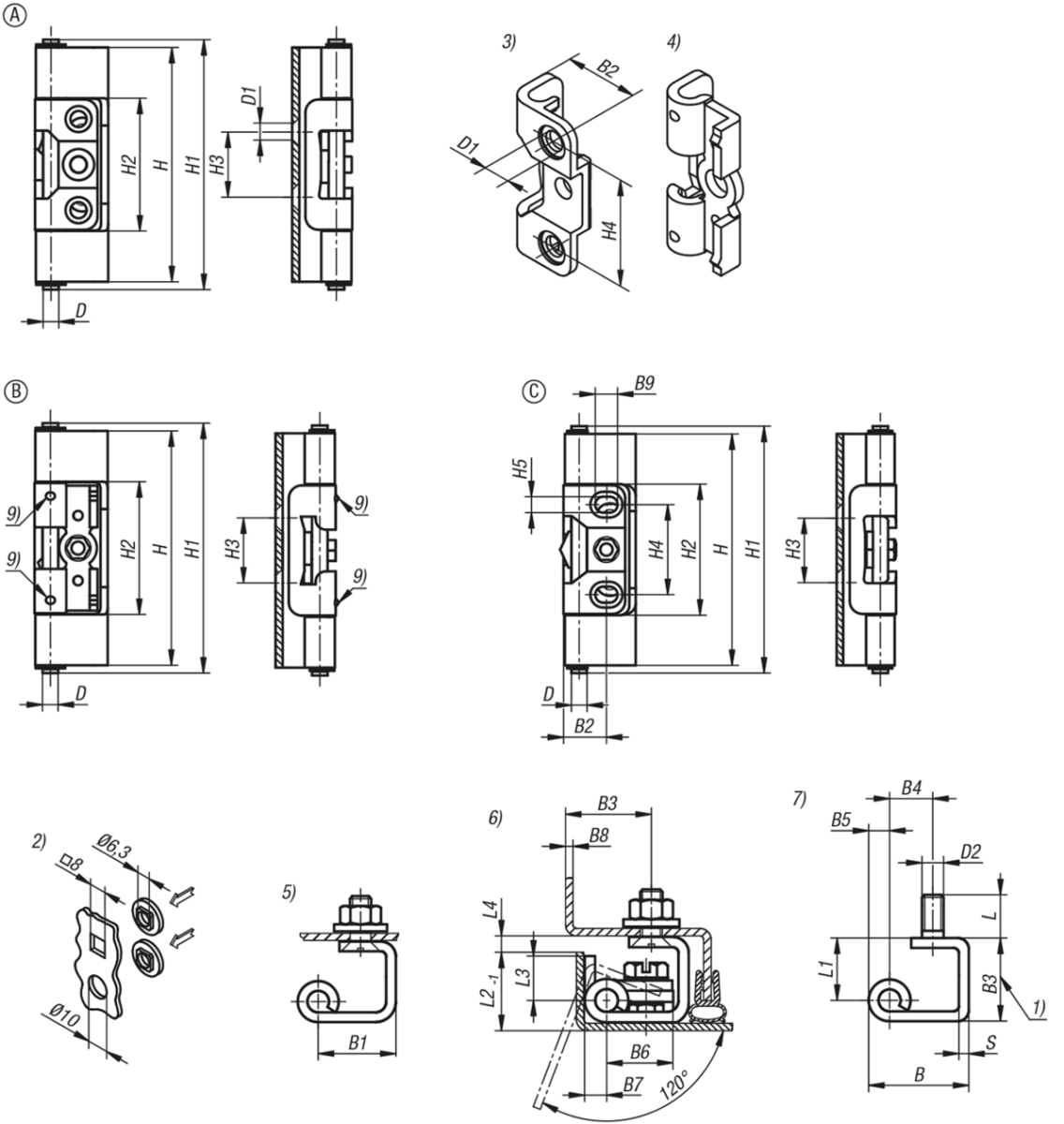

Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	Design / Version	Materiál základní těleso	Materiál kolíku	Druh upevnění dveřní části	B	B1	B2	B3	B4	B5	B6	B7	B8	B9	D	D2	D1	H	H1	H2	H3	H4	H5	L	L1	L2	L3	L4	S
K2504.0120	upon request	upon request	Poptat cenu	3D	A	ocel	Ocel	—	28	22	—	23	12	5.55	17.9	6.1	3	—	6	M6	—	90	96	50	25	—	—	12	17	21	11.9	4	2,5–2,7
K2504.0121	upon request	upon request	Poptat cenu	3D	A	ocel	Ocel	—	28	22	—	23	12	5.55	17.9	6.1	3	—	6	M6	—	90	96	50	25	—	—	12	17	21	11.9	4	2,5–2,7
K2504.0221	upon request	upon request	Poptat cenu	3D	A	ocel	Ocel	—	28	22	—	23	12	5.55	17.9	6.1	3	—	6	M6	—	90	96	50	25	—	—	12	17	21	11.9	4	2,5–2,7
K2504.1120	upon request	upon request	Poptat cenu	3D	B	nerezová ocel A2	nerezová ocel 1.4305	—	28	22	—	23	12	6	18.1	6.1	3	—	6	M6	—	90	96	50	25	—	—	12	17	21	11.9	4	2,5–2,7
K2504.1121	upon request	upon request	Poptat cenu	3D	B	nerezová ocel A2	nerezová ocel 1.4305	—	28	22	—	23	12	6	18.1	6.1	3	—	6	M6	—	90	96	50	25	—	—	12	17	21	11.9	4	2,5–2,7
K2504.1221	upon request	upon request	Poptat cenu	3D	B	nerezová ocel A2	nerezová ocel 1.4305	—	28	22	—	23	12	6	18.1	6.1	3	—	6	M6	—	90	96	50	25	—	—	12	17	21	11.9	4	2,5–2,7
K2504.2110	upon request	upon request	Poptat cenu	3D	C	nerezová ocel A4	nerezová ocel 1.4305	šroubovatelný	28	22	16.7	23	12	6	17.9	6.1	3	8.7	6	M6	—	90	96	50	25	35	6.2	12	17	21.1	11.9	4	2,5–2,7
K2504.2111	upon request	upon request	Poptat cenu	3D	C	nerezová ocel A4	nerezová ocel 1.4305	šroubovatelný	28	22	16.7	23	12	6	17.9	6.1	3	8.7	6	M6	—	90	96	50	25	35	6.2	12	17	21.1	11.9	4	2,5–2,7
K2504.2211	upon request	upon request	Poptat cenu	3D	C	nerezová ocel A4	nerezová ocel 1.4305	šroubovatelný	28	22	16.7	23	12	6	17.9	6.1	3	8.7	6	M6	—	90	96	50	25	35	6.2	12	17	21.1	11.9	4	2,5–2,7
K2504.3110	upon request	upon request	Poptat cenu	3D	A	zinek	Ocel	šroubovatelný	28	22	16.7	23	12	5.55	17.9	6.1	3	—	6	M6	6.2	90	96	50	25	35	—	12	17	21	11.9	4	2,5–2,7
K2504.3111	upon request	upon request	Poptat cenu	3D	A	zinek	Ocel	šroubovatelný	28	22	16.7	23	12	5.55	17.9	6.1	3	—	6	M6	6.2	90	96	50	25	35	—	12	17	21	11.9	4	2,5–2,7
K2504.3211	upon request	upon request	Poptat cenu	3D	A	zinek	Ocel	šroubovatelný	28	22	16.7	23	12	5.55	17.9	6.1	3	—	6	M6	6.2	90	96	50	25	35	—	12	17	21	11.9	4	2,5–2,7
The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you.
