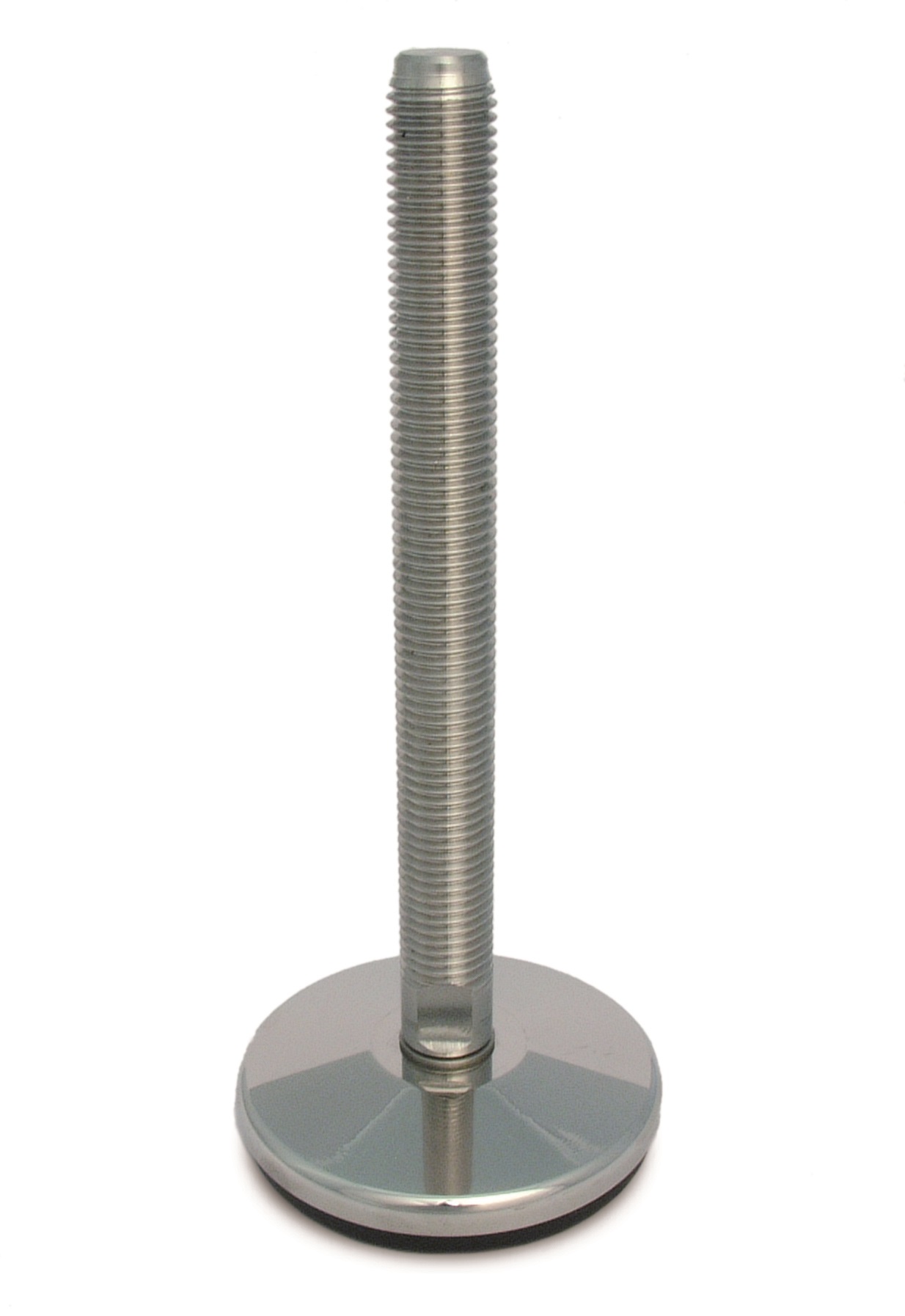

Stainless steel adjustable feet Ø 75, fixed screw with 5° tilt, medium load
Product description
| Manufacturer: | Martin S.p.a. |
|---|---|
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | Approximately 3 weeks from the order date More information. |
zavřít
zavřít
Download
Katalogový list
Detail zavřít
| Order code | Basic price excluding VAT | Koncová cena s DPH | Order | CAD | Threaded Rod | A | B | D | Wrench Size | F | G | H | Statické zatížení |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15023 | 21,88 € | 26,47 € | M16×50 | 32,5 | 50 | Ø 75 | 13 | M16 | 20 | 82,5 | 20000N | ||
| 15024 | 22,15 € | 26,80 € | M16×75 | 32,5 | 75 | Ø 75 | 13 | M16 | 20 | 107,5 | 20000N | ||
| 15025 | 23,38 € | 28,29 € | M16×100 | 32,5 | 100 | Ø 75 | 13 | M16 | 20 | 132,5 | 20000N | ||
| 15026 | 24,16 € | 29,23 € | M16×125 | 32,5 | 125 | Ø 75 | 13 | M16 | 20 | 157,5 | 20000N | ||
| 15027 | 24,73 € | 29,92 € | M16×150 | 32,5 | 150 | Ø 75 | 13 | M16 | 20 | 182,5 | 20000N | ||
| 15028 | 25,85 € | 31,28 € | M16×175 | 32,5 | 175 | Ø 75 | 13 | M16 | 20 | 207,5 | 20000N | ||
| 15029 | 23,14 € | 28,00 € | M20×50 | 32,5 | 50 | Ø 75 | 17 | M20 | 20 | 82,5 | 20000N | ||
| 15030 | 23,98 € | 29,02 € | M20×75 | 32,5 | 75 | Ø 75 | 17 | M20 | 20 | 107,5 | 20000N | ||
| 15031 | 25,74 € | 31,15 € | M20×100 | 32,5 | 100 | Ø 75 | 17 | M20 | 20 | 132,5 | 20000N | ||
| 15032 | 26,66 € | 32,26 € | M20×125 | 32,5 | 125 | Ø 75 | 17 | M20 | 20 | 157,5 | 20000N | ||
| 15033 | 28,03 € | 33,92 € | M20×150 | 32,5 | 150 | Ø 75 | 17 | M20 | 20 | 182,5 | 20000N | ||
| 15034 | 29,81 € | 36,07 € | M20×175 | 32,5 | 175 | Ø 75 | 17 | M20 | 20 | 207,5 | 20000N | ||
| 15035 | 31,66 € | 38,31 € | M20×200 | 32,5 | 200 | Ø 75 | 17 | M20 | 20 | 232,5 | 20000N | ||
| 15036 | 33,42 € | 40,44 € | M20×225 | 32,5 | 225 | Ø 75 | 17 | M20 | 20 | 257,5 | 20000N | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | |||||||||||||
