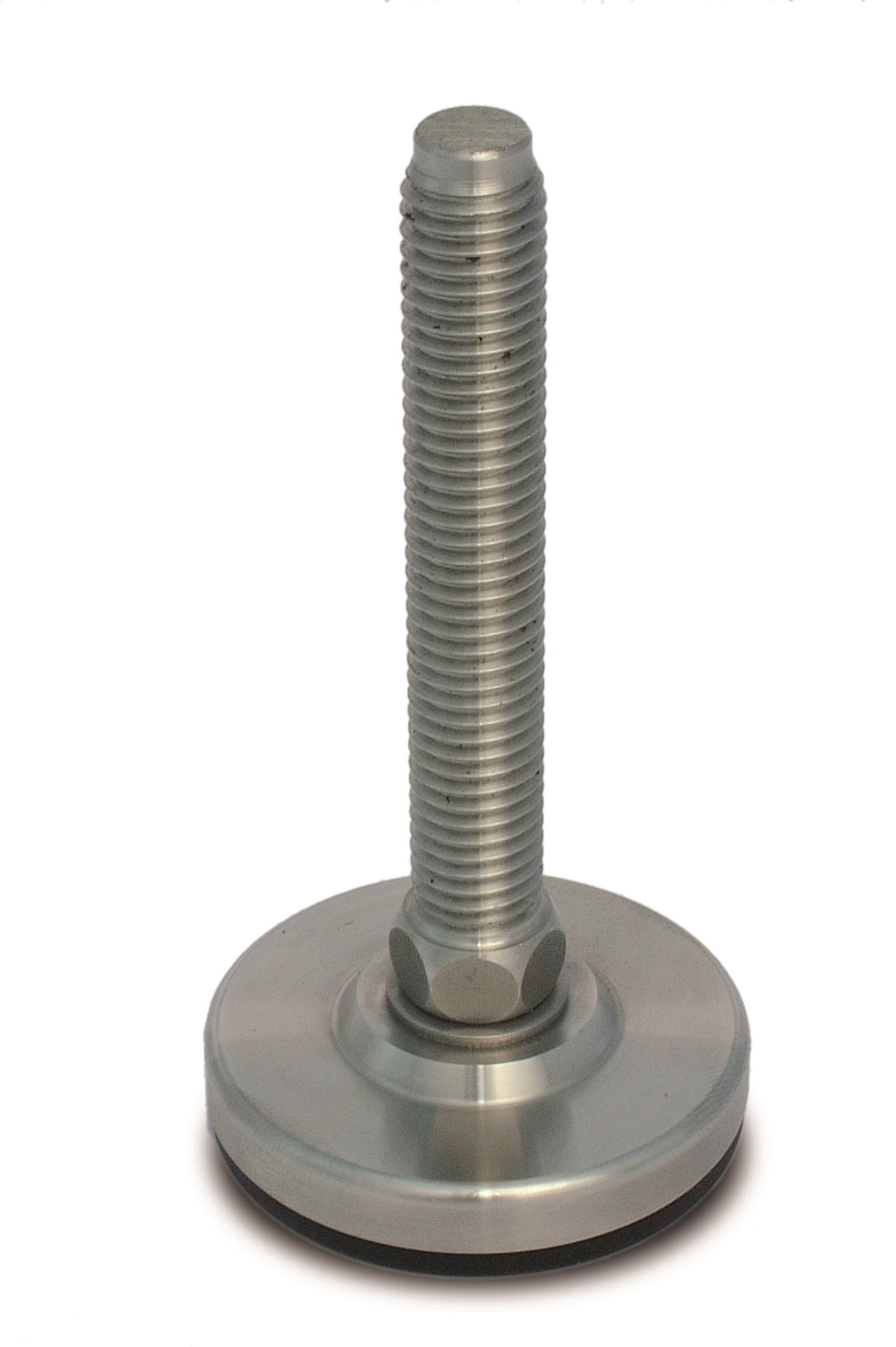

Stainless steel adjustable feet Ø 50, fixed screw with 5° tilt, medium load
Product description
| Manufacturer: | Martin S.p.a. |
|---|---|
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | Approximately 3 weeks from the order date More information. |
zavřít
zavřít
Download
Katalogový list
Detail zavřít
| Order code | Basic price excluding VAT | Koncová cena s DPH | Order | CAD | Threaded Rod | A | B | D | Wrench Size | F | G | H | Statické zatížení |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15000/50 | 12,69 € | 15,35 € | M10×25 | 23 | 25 | Ø 50 | 14 | M10 | 13 | 48 | 12000N | ||
| 15001/50 | 13,01 € | 15,74 € | M10×50 | 23 | 50 | Ø 50 | 14 | M10 | 13 | 73 | 12000N | ||
| 15002/50 | 13,35 € | 16,15 € | M10×75 | 23 | 75 | Ø 50 | 14 | M10 | 13 | 98 | 12000N | ||
| 15003/50 | 13,67 € | 16,54 € | M10×100 | 23 | 100 | Ø 50 | 14 | M10 | 13 | 123 | 12000N | ||
| 15004/50 | 12,69 € | 15,35 € | M12×25 | 23 | 25 | Ø 50 | 14 | M12 | 13 | 48 | 12000N | ||
| 15005/50 | 13,01 € | 15,74 € | M12×50 | 23 | 50 | Ø 50 | 14 | M12 | 13 | 73 | 12000N | ||
| 15006/50 | 13,35 € | 16,15 € | M12×75 | 23 | 75 | Ø 50 | 14 | M12 | 13 | 98 | 12000N | ||
| 15007/50 | 13,67 € | 16,54 € | M12×100 | 23 | 100 | Ø 50 | 14 | M12 | 13 | 123 | 12000N | ||
| 15008/50 | 14,61 € | 17,68 € | M12×125 | 23 | 125 | Ø 50 | 14 | M12 | 13 | 148 | 12000N | ||
| 15009/50 | 13,95 € | 16,88 € | M14×50 | 23 | 50 | Ø 50 | 14 | M14 | 13 | 73 | 12000N | ||
| 15010/50 | 14,77 € | 17,87 € | M14×75 | 23 | 75 | Ø 50 | 14 | M14 | 13 | 98 | 12000N | ||
| 15011/50 | 15,18 € | 18,37 € | M14×100 | 23 | 100 | Ø 50 | 14 | M14 | 13 | 123 | 12000N | ||
| 15012/50 | 15,87 € | 19,20 € | M14×125 | 23 | 125 | Ø 50 | 14 | M14 | 13 | 148 | 12000N | ||
| 15013/50 | 16,87 € | 20,41 € | M14×150 | 23 | 150 | Ø 50 | 14 | M14 | 13 | 173 | 12000N | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | |||||||||||||
