Spring plungers: A key component for many machines and devices
Published:
Spring plungers, spring-loaded screws, spring screws, ejector pins. Many names — and equally versatile applications.

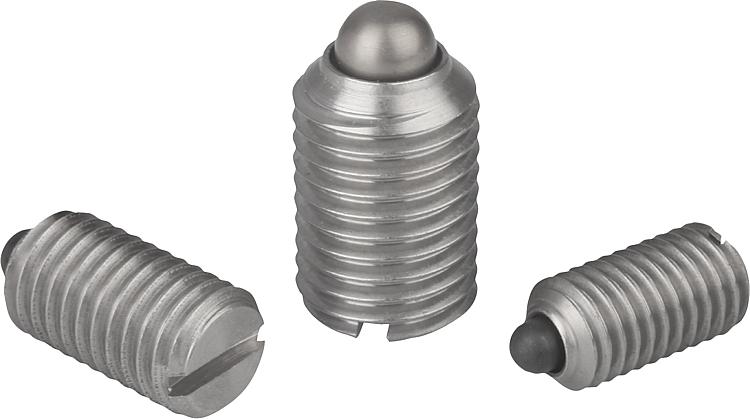

Spring plungers with slot and pin, stainless steel
Product description
| Code: | K0314 |
|---|---|
| Manufacturer: | Kipp |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
Cenu dopravy zásilek délky nad 2 m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné, upravujeme. |
zavřít
zavřít
Download
Přehrát video
Datový list K0314 Pružné opěrky s drážkou a tlačným čepem, nerezové
Detail zavřít
| Order code | Basic price excluding VAT | Koncová cena s DPH | Order | CAD | Base body material | D | d1 | L | H | Groove | Spring force start F1 approx. N | Spring force end F2 approx. N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0314.04 | 2,51 € | 3,04 € | Nerezová ocel | M4 | 1,8mm | 9 | 1,5mm | 0,6 | 6 | 20 | ||
| K0314.05 | 2,49 € | 3,01 € | Nerezová ocel | M5 | 2,4mm | 12 | 2mm | 0,8 | 6 | 20 | ||
| K0314.06 | 2,49 € | 3,01 € | Nerezová ocel | M6 | 2,7mm | 14 | 2mm | 1 | 7 | 20 | ||
| K0314.08 | 3,28 € | 3,97 € | Nerezová ocel | M8 | 4mm | 16 | 2mm | 1,2 | 15 | 30 | ||
| K0314.10 | 3,80 € | 4,60 € | Nerezová ocel | M10 | 4,5mm | 19 | 2,5mm | 1,6 | 20 | 35 | ||
| K0314.12 | 4,85 € | 5,87 € | Nerezová ocel | M12 | 6mm | 22 | 3,5mm | 2 | 30 | 55 | ||
| K0314.16 | 6,36 € | 7,70 € | Nerezová ocel | M16 | 8,5mm | 24 | 4,5mm | 2,5 | 45 | 100 | ||
| K0314.20 | 8,58 € | 10,38 € | Nerezová ocel | M20 | 10mm | 30 | 6,5mm | 2,5 | 60 | 120 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||
| Order code | Basic price excluding VAT | Koncová cena s DPH | Order | CAD | Base body material | D | d1 | L | H | Groove | Spring force start F1 approx. N | Spring force end F2 approx. N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0314.104 | 2,86 € | 3,46 € | Nerezová ocel | M4 | 1,8mm | 9 | 1,5mm | 0,6 | 3 | 10 | ||
| K0314.105 | 2,91 € | 3,52 € | Nerezová ocel | M5 | 2,4mm | 12 | 2mm | 0,8 | 3 | 10 | ||
| K0314.106 | 2,95 € | 3,57 € | Nerezová ocel | M6 | 2,7mm | 14 | 2mm | 1 | 4 | 10 | ||
| K0314.108 | 3,66 € | 4,43 € | Nerezová ocel | M8 | 4mm | 16 | 2mm | 1,2 | 7 | 15 | ||
| K0314.110 | 4,19 € | 5,07 € | Nerezová ocel | M10 | 4,5mm | 19 | 2,5mm | 1,6 | 9 | 16 | ||
| K0314.112 | 5,57 € | 6,74 € | Nerezová ocel | M12 | 6mm | 22 | 3,5mm | 2 | 14 | 26 | ||
| K0314.116 | 6,83 € | 8,26 € | Nerezová ocel | M16 | 8,5mm | 24 | 4,5mm | 2,5 | 22 | 50 | ||
| K0314.120 | 9,11 € | 11,02 € | Nerezová ocel | M20 | 10mm | 30 | 6,5mm | 2,5 | 30 | 60 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||
| Order code | Basic price excluding VAT | Koncová cena s DPH | Order | CAD | Base body material | D | d1 | L | H | Groove | Spring force start F1 approx. N | Spring force end F2 approx. N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0314.205 | 2,93 € | 3,55 € | Nerezová ocel | M5 | 2,4mm | 12 | 2mm | 0,8 | 9 | 25 | ||
| K0314.206 | 2,95 € | 3,57 € | Nerezová ocel | M6 | 2,7mm | 14 | 2mm | 1 | 11 | 25 | ||
| K0314.208 | 3,67 € | 4,44 € | Nerezová ocel | M8 | 4mm | 16 | 2mm | 1,2 | 22 | 43 | ||
| K0314.210 | 4,30 € | 5,20 € | Nerezová ocel | M10 | 4,5mm | 19 | 2,5mm | 1,6 | 20 | 54 | ||
| K0314.212 | 5,61 € | 6,79 € | Nerezová ocel | M12 | 6mm | 22 | 3,5mm | 2 | 36 | 94 | ||
| K0314.216 | 6,86 € | 8,30 € | Nerezová ocel | M16 | 8,5mm | 24 | 4,5mm | 2,5 | 60 | 110 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||
