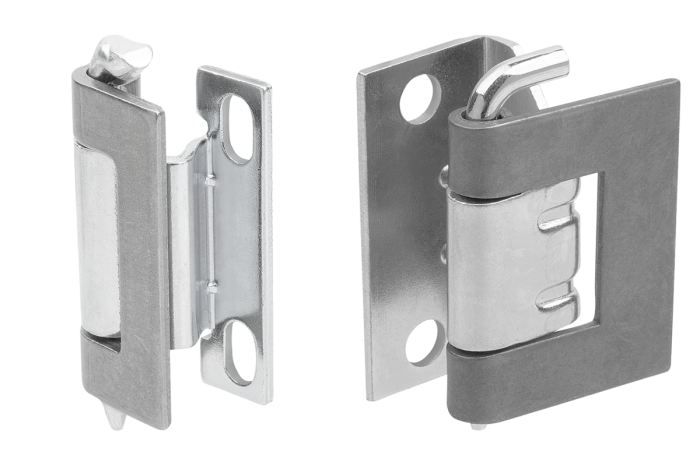

Concealed hinges steel or stainless steel, folded edge up to 24 mm
Product description
| Code: | K2503 |
|---|---|
| Manufacturer: | Kipp |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
Download
Datový list Kipp K2503 Skryté závěsy, ocel nebo nerezová ocel, zkosení do 24 mm
Detail zavřít
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Design / Version | Materiál základní těleso | Druh upevnění dveřní části | Materiál kolíku | B | B1 | B2 | B3 | B4 | B5 | B6 | B7 | D | D1 | D2 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K2503.0112118 | upon request | upon request | A | ocel | šroubovatelný | Ocel | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 2.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0112124 | upon request | upon request | A | ocel | šroubovatelný | Ocel | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 8.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0113118 | upon request | upon request | A | ocel | šroubovatelný | Ocel | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 2.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0113124 | upon request | upon request | A | ocel | šroubovatelný | Ocel | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 8.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0114118 | upon request | upon request | A | ocel | šroubovatelný | Ocel | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 2.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0114124 | upon request | upon request | A | ocel | šroubovatelný | Ocel | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 73.5 | 8.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0122118 | upon request | upon request | A | ocel | — | Ocel | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 2.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0122124 | upon request | upon request | A | ocel | — | Ocel | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 8.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0123118 | upon request | upon request | A | ocel | — | Ocel | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 2.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0123124 | upon request | upon request | A | ocel | — | Ocel | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 8.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0124118 | upon request | upon request | A | ocel | — | Ocel | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 2.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0124124 | upon request | upon request | A | ocel | — | Ocel | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 73.5 | 8.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.0225123 | upon request | upon request | B | ocel | — | Ocel | 23 | 16.7 | 4.3 | 23 | 35 | 10 | 14 | — | 7 | M6 | 6.5 | 51 | 60.2 | — | 38 | 54 | —mm | —mm | — | —mm | — | ||
| K2503.0325123 | upon request | upon request | C | ocel | — | Ocel | 23 | 16.7 | 4.3 | 23 | — | 10 | 14 | — | 7 | M6 | 6.5 | 51 | 60.2 | 14.5 | 38 | 54 | —mm | —mm | — | —mm | — | ||
| K2503.1112218 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | nerezová ocel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 2.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Design / Version | Materiál základní těleso | Druh upevnění dveřní části | Materiál kolíku | B | B1 | B2 | B3 | B4 | B5 | B6 | B7 | D | D1 | D2 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | S | S1 |
| K2503.1112224 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | nerezová ocel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 75 | 8.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1112418 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | POM | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 87 | 2.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1113224 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | nerezová ocel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 8.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1113318 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | Nerezová ocel 1.4301. | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 2.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1114218 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | nerezová ocel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 2.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1114224 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | nerezová ocel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 77 | 8.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1116424 | upon request | upon request | A | nerezová ocel A2 | šroubovatelný | POM | 18.15 | 32.4 | 5.85 | 24 | 6 | 6 | 6.5 | 24 | 6 | 5.3 | 11.7 | 60 | 87 | 8.5 | 6 | 48 | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1122218 | upon request | upon request | A | nerezová ocel A2 | — | nerezová ocel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 2.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1122224 | upon request | upon request | A | nerezová ocel A2 | — | nerezová ocel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 75 | 8.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1122418 | upon request | upon request | A | nerezová ocel A2 | — | POM | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 87 | 2.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1123224 | upon request | upon request | A | nerezová ocel A2 | — | nerezová ocel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 8.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1123318 | upon request | upon request | A | nerezová ocel A2 | — | nerezová ocel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 2.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1124218 | upon request | upon request | A | nerezová ocel A2 | — | nerezová ocel 1.4305 | 18.15 | 26.4 | 5.85 | 18 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 2.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1124224 | upon request | upon request | A | nerezová ocel A2 | — | nerezová ocel 1.4305 | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 77 | 8.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| K2503.1126424 | upon request | upon request | A | nerezová ocel A2 | — | POM | 18.15 | 32.4 | 5.85 | 24 | — | 6 | 6.5 | 24 | 6 | — | 11.7 | 60 | 87 | 8.5 | — | — | 9mm | 42mm | 12 | 2.5mm | 2 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | |||||||||||||||||||||||||||||
