CONU® conical steel nut with locking serrations, for property class 8.8 screws

New
CONU® conical steel nut with locking serrations, for property class 8.8 screws

Product description

Code: 07215-10_S
Manufacturer: norelem
Prices: are listed at the bottom of the page in the product variant table, or upon request via the form below.
Delivery date:

typically approximately 7–10 days from the date of order, depending on the quantity and current stock availability in the central warehouse. Specific delivery dates are verified and confirmed by email on an individual order basis. If the goods are unavailable, the order may be cancelled. More information.
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently.
zavřít

3D modely




CONU® conical steel nut with locking serrations, for property class 8.8 screws | 07215-10_S

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.


Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE
zavřít

Poptat cenu
Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE

Download

Datový list norelem 07215-10_S Kuželová matice CONU® z oceli se zajišťovacími žebry, pro šrouby třídy pevnosti 8.8 Datový list norelem 07215–10_S Kuželová matice CONU® z oceli se zajišťovacími žebry, pro šrouby třídy pevnosti 8.8

Detail zavřít

Clear filter

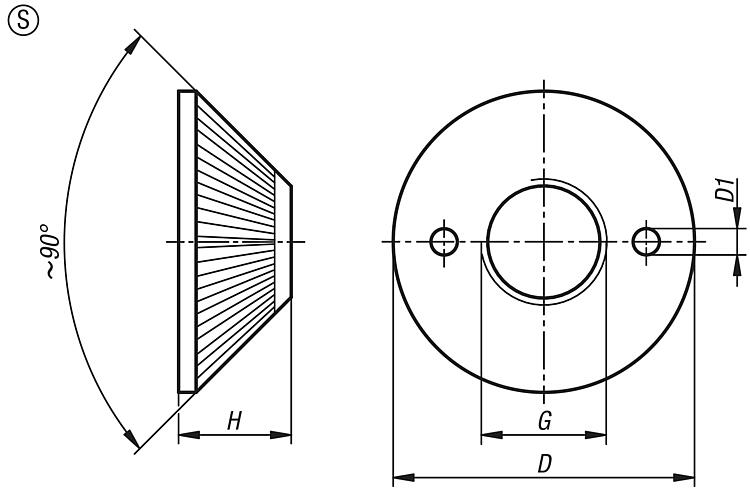

Order code Basic price excluding VAT Final price incl. VAT Order CAD Design / Version D D1‎ G H
07215-10-006 upon request upon request Poptat cenu3DS101.5M63.45
07215-10-008 upon request upon request Poptat cenu3DS14.51.5M84.5
07215-10-010 upon request upon request Poptat cenu3DS192M105.5
07215-10-012 upon request upon request Poptat cenu3DS232M126.2
07215-10-016 upon request upon request Poptat cenu3DS30.23M167.7
The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you.

❱
