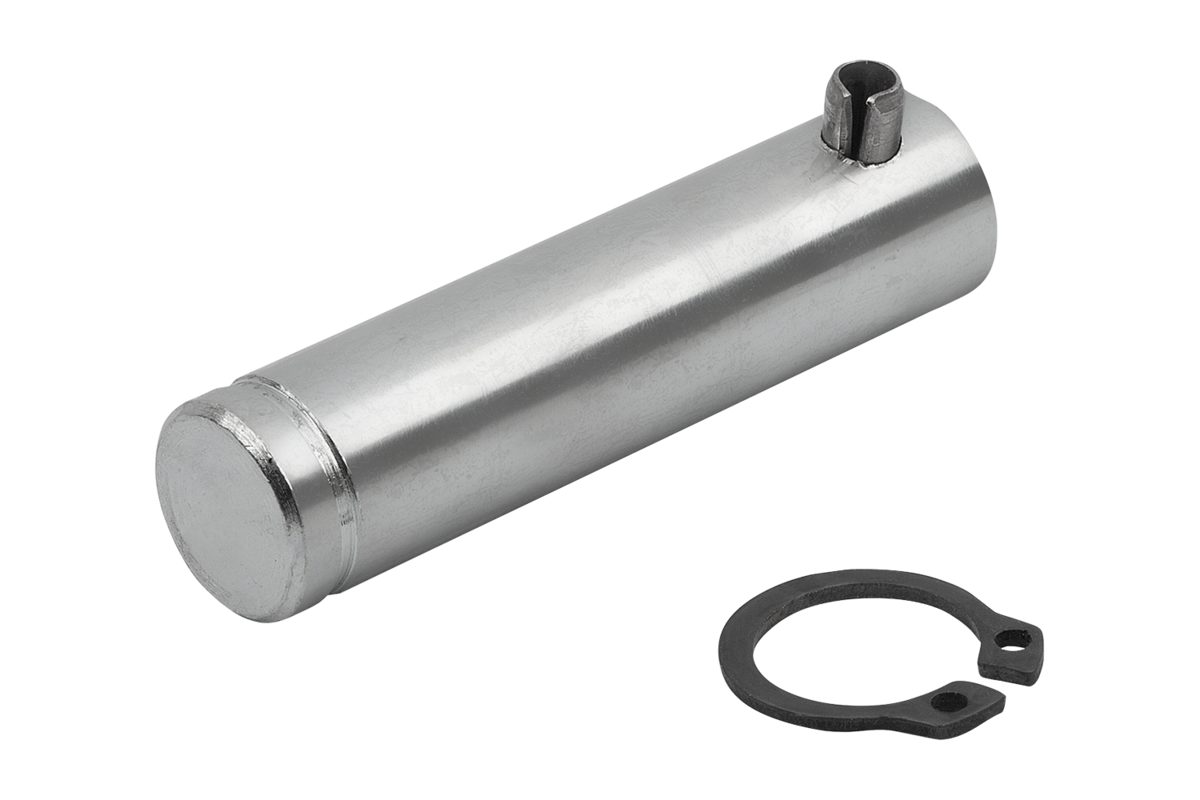

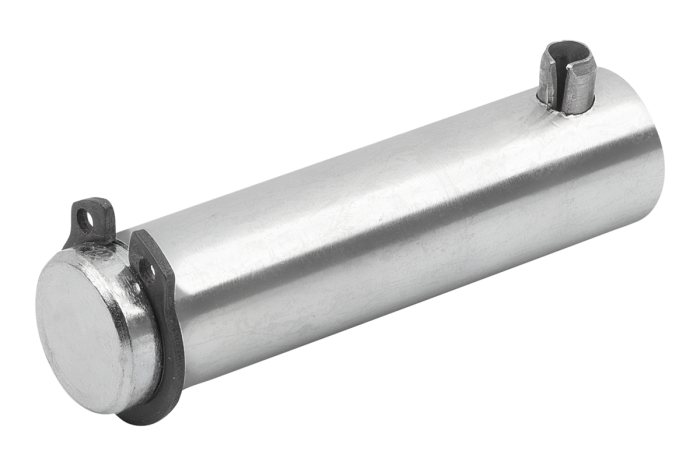

Hinge pin with rotation lock for ISO 15552 / 21287
Product description
| Code: | 12021-91 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | typically approximately 7–10 days from the date of order, depending on the quantity and current stock availability in the central warehouse. Specific delivery dates are verified and confirmed by email on an individual order basis. If the goods are unavailable, the order may be cancelled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
Download
Datový list norelem 12021–91 Osové čepy s pojistkou proti pootočení pro ISO 15552 / 21287
Detail zavřít

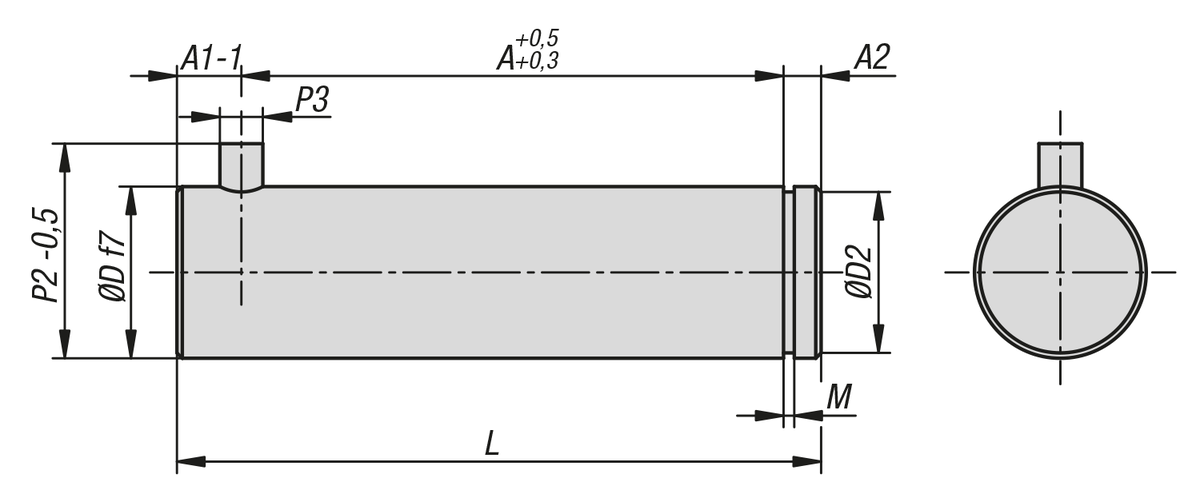

| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | A | A1 | A2 | D | D2 | L jmenovitá délka | M | P2 | P3 | Cylinder Ø | Vhodné pro |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12021-91-1032 | upon request | upon request | 32.5 | 4.5 | 4 | 10 | 9.6 | 41 | 1.1 | 14 | 3 | 32 | DIN ISO 15552 / 21287 | ||
| 12021-91-1040 | upon request | upon request | 38 | 6 | 4 | 12 | 11.5 | 48 | 1.1 | 16 | 4 | 40 | DIN ISO 15552 / 21287 | ||
| 12021-91-1050 | upon request | upon request | 43 | 6 | 5 | 16 | 15.2 | 54 | 1.1 | 20 | 4 | 50 | DIN ISO 15552 / 21287 | ||
| 12021-91-1063 | upon request | upon request | 49 | 6 | 5 | 16 | 15.2 | 60 | 1.1 | 20 | 4 | 63 | DIN ISO 15552 / 21287 | ||
| 12021-91-1080 | upon request | upon request | 63 | 6 | 6 | 20 | 19 | 75 | 1.3 | 24 | 4 | 80 | DIN ISO 15552 / 21287 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | |||||||||||||||
