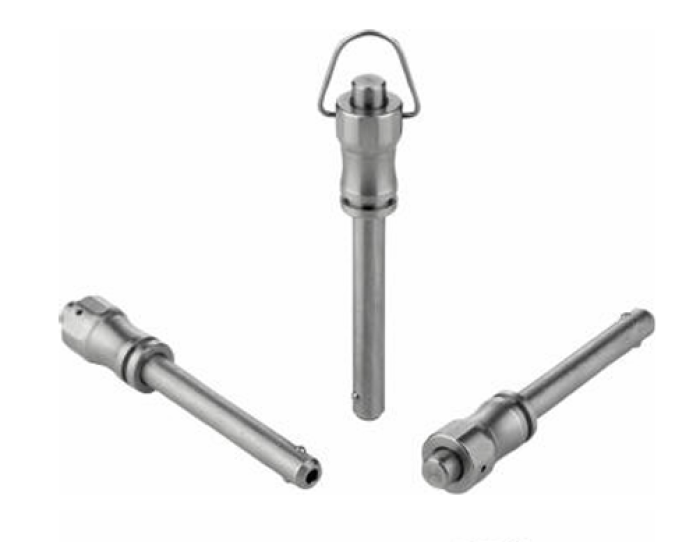

Ball lock pins stainless steel

Name: Ball lock pins stainless steel
Brand: Sugatsune Kogyo Co.
SKU: K0790

New

Product description

Code:	K0790
Manufacturer:	Sugatsune Kogyo Co.
Prices:	are listed at the bottom of the page in the product variant table, or upon request via the form below.
Delivery date:	normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information.
Freight:	Each order of the Sugatsune Kogyo Co. assortment will be charged € 10.60 excluding VAT for UPS shipping from abroad.
	U dílů o délce 1 - 1,5 m je cena dopravy 650 Kč bez DPH a u delších je 960 Kč bez DPH.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: Ball lock pins stainless steel | K0790
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE

zavřít

Download

Catalogue sheet Sugatsune Kogyo Co. K0790 Ball lock pins stainless steel

Detail zavřít

Clear filter

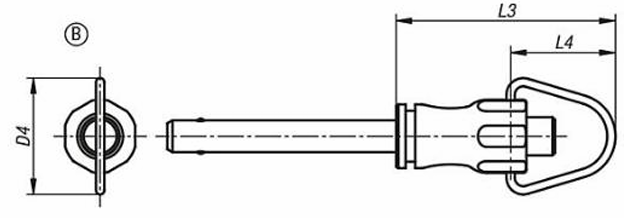

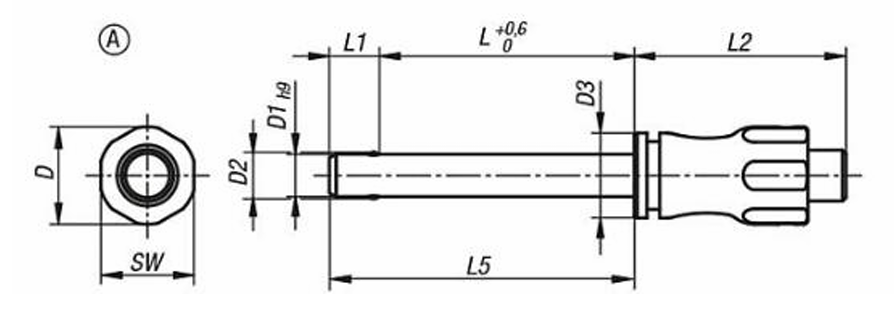

Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	Form	D	D1‎	D2	D3	D4	L	L1	L2	L3	L4	L5	SW	Receiving hole H11	Shearing force double shear max.kN
K0790.001205035	upon request	upon request	Poptat cenu	3D	A	11.5	5	5.5	10	–	35	5.9	25	–	–	40.9	11	5	15
K0790.001205040	upon request	upon request	Poptat cenu	3D	A	11.5	5	5.5	10	–	40	5.9	25	–	–	45.9	11	5	15
K0790.001205045	upon request	upon request	Poptat cenu	3D	A	11.5	5	5.5	10	–	45	5.9	25	–	–	50.9	11	5	15
K0790.001205050	upon request	upon request	Poptat cenu	3D	A	11.5	5	5.5	10	–	50	5.9	25	–	–	55.9	11	5	15
K0790.001205060	upon request	upon request	Poptat cenu	3D	A	11.5	5	5.5	10	–	60	5.9	25	–	–	65.9	11	5	15
K0790.001205070	upon request	upon request	Poptat cenu	3D	A	11.5	5	5.5	10	–	70	5.9	25	–	–	75.9	11	5	15
K0790.001205080	upon request	upon request	Poptat cenu	3D	A	11.5	5	5.5	10	–	80	5.9	25	–	–	85.9	11	5	15
K0790.001206060	upon request	upon request	Poptat cenu	3D	A	11.5	6	6.85	10	–	60	6.8	25	–	–	66.8	11	6	22
K0790.001206070	upon request	upon request	Poptat cenu	3D	A	11.5	6	6.85	10	–	70	6.8	25	–	–	76.8	11	6	22
K0790.001206080	upon request	upon request	Poptat cenu	3D	A	11.5	6	6.85	10	–	80	6.8	25	–	–	86.8	11	6	22
K0790.001508010	upon request	upon request	Poptat cenu	3D	A	15.5	8	9.5	13.5	–	10	7.8	33	–	–	17.8	15	8	38
K0790.001508015	upon request	upon request	Poptat cenu	3D	A	15.5	8	9.5	13.5	–	15	7.8	33	–	–	22.8	15	8	38
K0790.001508060	upon request	upon request	Poptat cenu	3D	A	15.5	8	9.5	13.5	–	60	7.8	33	–	–	67.8	15	8	38
K0790.001508070	upon request	upon request	Poptat cenu	3D	A	15.5	8	9.5	13.5	–	70	7.8	33	–	–	77.8	15	8	38
K0790.001508080	upon request	upon request	Poptat cenu	3D	A	15.5	8	9.5	13.5	–	80	7.8	33	–	–	87.8	15	8	38
Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	Form	D	D1‎	D2	D3	D4	L	L1	L2	L3	L4	L5	SW	Receiving hole H11	Shearing force double shear max.kN
K0790.001508090	upon request	upon request	Poptat cenu	3D	A	15.5	8	9.5	13.5	–	90	7.8	33	–	–	97.8	15	8	38
K0790.001508100	upon request	upon request	Poptat cenu	3D	A	15.5	8	9.5	13.5	–	100	7.8	33	–	–	107.8	15	8	38
K0790.001510015	upon request	upon request	Poptat cenu	3D	A	15.5	10	12	13.5	–	15	8.9	33	–	–	23.9	15	10	60
K0790.001510070	upon request	upon request	Poptat cenu	3D	A	15.5	10	12	13.5	–	70	8.9	33	–	–	78.9	15	10	60
K0790.001510080	upon request	upon request	Poptat cenu	3D	A	15.5	10	12	13.5	–	80	8.9	33	–	–	88.9	15	10	60
K0790.001510090	upon request	upon request	Poptat cenu	3D	A	15.5	10	12	13.5	–	90	8.9	33	–	–	98.9	15	10	60
K0790.001510100	upon request	upon request	Poptat cenu	3D	A	15.5	10	12	13.5	–	100	8.9	33	–	–	108.9	15	10	60
K0790.001510110	upon request	upon request	Poptat cenu	3D	A	15.5	10	12	13.5	–	110	8.9	33	–	–	118.9	15	10	60
K0790.001510120	upon request	upon request	Poptat cenu	3D	A	15.5	10	12	13.5	–	120	8.9	33	–	–	128.9	15	10	60
K0790.002112020	upon request	upon request	Poptat cenu	3D	A	22	12	14.5	20	–	20	9.9	39.5	–	–	29.9	21	12	86
K0790.002112090	upon request	upon request	Poptat cenu	3D	A	22	12	14.5	20	–	90	9.9	39.5	–	–	99.9	21	12	86
K0790.002112100	upon request	upon request	Poptat cenu	3D	A	22	12	14.5	20	–	100	9.9	39.5	–	–	109.9	21	12	86
K0790.002112110	upon request	upon request	Poptat cenu	3D	A	22	12	14.5	20	–	110	9.9	39.5	–	–	119.9	21	12	86
K0790.002112120	upon request	upon request	Poptat cenu	3D	A	22	12	14.5	20	–	120	9.9	39.5	–	–	129.9	21	12	86
K0790.002116090	upon request	upon request	Poptat cenu	3D	A	22	16	19	20	–	90	13.1	39.5	–	–	103.1	21	16	153
Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	Form	D	D1‎	D2	D3	D4	L	L1	L2	L3	L4	L5	SW	Receiving hole H11	Shearing force double shear max.kN
K0790.002116100	upon request	upon request	Poptat cenu	3D	A	22	16	19	20	–	100	13.1	39.5	–	–	113.1	21	16	153
K0790.002116110	upon request	upon request	Poptat cenu	3D	A	22	16	19	20	–	110	13.1	39.5	–	–	123.1	21	16	153
K0790.002116120	upon request	upon request	Poptat cenu	3D	A	22	16	19	20	–	120	13.1	39.5	–	–	133.1	21	16	153
K0790.002116130	upon request	upon request	Poptat cenu	3D	A	22	16	19	20	–	130	13.1	39.5	–	–	143.1	21	16	153
K0790.002116140	upon request	upon request	Poptat cenu	3D	A	22	16	19	20	–	140	13.1	39.5	–	–	153.1	21	16	153
K0790.002116150	upon request	upon request	Poptat cenu	3D	A	22	16	19	20	–	150	13.1	39.5	–	–	163.1	21	16	153
K0790.002820050	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	50	20.1	45.6	–	–	70.1	27	20	244
K0790.002820060	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	60	20.1	45.6	–	–	80.1	27	20	244
K0790.002820070	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	70	20.1	45.6	–	–	90.1	27	20	244
K0790.002820080	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	80	20.1	45.6	–	–	100.1	27	20	244
K0790.002820090	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	90	20.1	45.6	–	–	110.1	27	20	244
K0790.002820100	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	100	20.1	45.6	–	–	120.1	27	20	244
K0790.002820110	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	110	20.1	45.6	–	–	130.1	27	20	244
K0790.002820120	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	120	20.1	45.6	–	–	140.1	27	20	244
K0790.002820130	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	130	20.1	45.6	–	–	150.1	27	20	244
Order code	Basic price excluding VAT	Final price incl. VAT	Order	CAD	Form	D	D1‎	D2	D3	D4	L	L1	L2	L3	L4	L5	SW	Receiving hole H11	Shearing force double shear max.kN
K0790.002820140	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	140	20.1	45.6	–	–	160.1	27	20	244
K0790.002820150	upon request	upon request	Poptat cenu	3D	A	28	20	25	26	–	150	20.1	45.6	–	–	170.1	27	20	244
K0790.002825050	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	50	22.1	46.3	–	–	72.1	27	25	244
K0790.002825060	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	60	22.1	46.3	–	–	82.1	27	25	244
K0790.002825070	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	70	22.1	46.3	–	–	92.1	27	25	244
K0790.002825080	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	80	22.1	46.3	–	–	102.1	27	25	244
K0790.002825090	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	90	22.1	46.3	–	–	112.1	27	25	244
K0790.002825100	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	100	22.1	46.3	–	–	122.1	27	25	244
K0790.002825110	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	110	22.1	46.3	–	–	132.1	27	25	244
K0790.002825120	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	120	22.1	46.3	–	–	142.1	27	25	244
K0790.002825130	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	130	22.1	46.3	–	–	152.1	27	25	244
K0790.002825140	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	140	22.1	46.3	–	–	162.1	27	25	244
K0790.002825150	upon request	upon request	Poptat cenu	3D	A	28	25	31	26	–	150	22.1	46.3	–	–	172.1	27	25	244
K0790.101205035	upon request	upon request	Poptat cenu	3D	B	11.5	5	5.5	10	18,3	35	5.9	25	34,6	16,6	40.9	11	5	15
K0790.101205040	upon request	upon request	Poptat cenu	3D	B	11.5	5	5.5	10	18,3	40	5.9	25	34,6	16,6	45.9	11	5	15
The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you.
