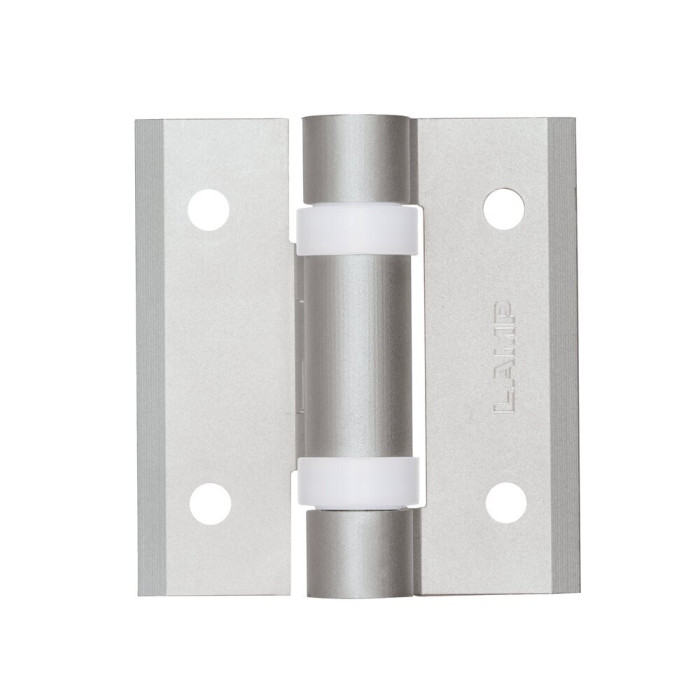

CLEAN ROOM TORQUE HINGE

New
CLEAN ROOM TORQUE HINGE

Product description

Code: HG-CVT
Manufacturer: Sugatsune Kogyo Co.
Prices: are listed at the bottom of the page in the product variant table, or upon request via the form below.
Delivery date:

normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information.
Freight: Each order of the Sugatsune Kogyo Co. assortment will be charged € 10.60 ex­cluding VAT for UPS shipping from abroad.
U dílů o délce 1 - 1,5 m je cena dopravy 650 Kč bez DPH a u delších je 960 Kč bez DPH.
zavřít

3D modely




CLEAN ROOM TORQUE HINGE | HG-CVT

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.


Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE
zavřít

Poptat cenu
Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE

Detail zavřít

Clear filter
Order code Basic price excluding VAT Final price incl. VAT Order CAD Hinge – Finish L Max. Opening Angle Torque W Weight (g) Materiál Max. torque Nm T = Tolerance​
HG-CVT65-15 38,23 € 46,26 €
3DAnodised65mm270degree15,3kgf‑cm60°62Aluminium1,5+/- 30 Nm
HG-CVT100-20 45,51 € 55,06 €
3DAnodised100mm270degree20,4kgf‑cm60°102Aluminium Alloy2+/- 25% Nm
The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you.

❱
