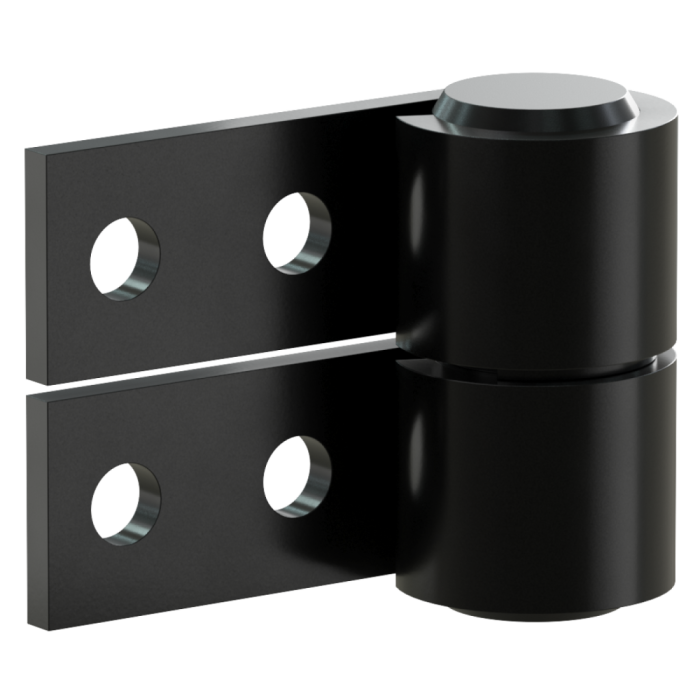

Small symmetrical friction pin hinges
New
Product description
Small-sized differential friction pin hinges to hold a door or lid in
position.
Cycle life: 30 000 cycles.
360° rotation possible.
Operating temperature: –20°C / +70°C.
| Code: | 73003 |
|---|---|
| Manufacturer: | PINET Industrie |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
zavřít
Detail zavřít
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Materiál | Surface | Torque Nm | A | B | C | D | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 59-7-5015 | 88,20 € | 106,72 € | steel | black coated | 2 N.m | 29.5 mm | 40.4 mm | 2.4 mm | 17.2 mm | 67 | ||
| 59-7-5016 | 88,20 € | 106,72 € | steel | black coated | 3 N.m | 29.5 mm | 40.4 mm | 2.4 mm | 17.2 mm | 67 | ||
| 59-7-5017 | 99,22 € | 120,06 € | steel | black coated | 4 N.m | 29.5 mm | 40.4 mm | 2.4 mm | 17.2 mm | 67 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||
