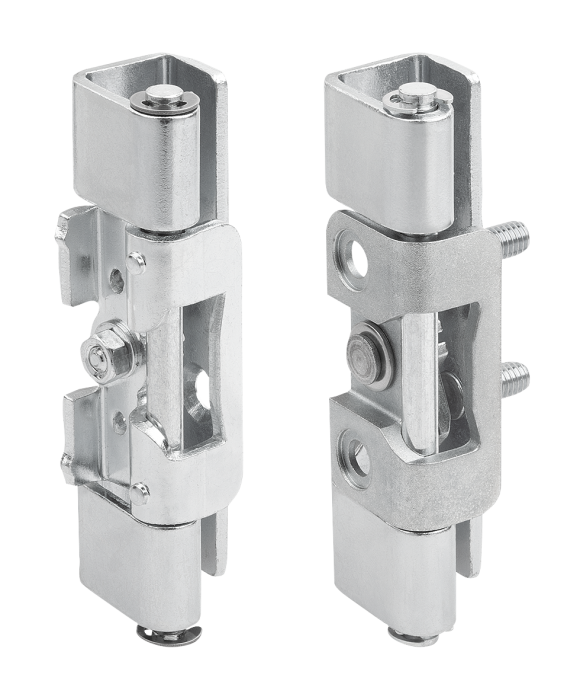

Concealed hinges die-cast zinc, steel or stainless steel with lock, folded edge 23 mm
Product description
| Code: | 27878-08 |
|---|---|
| Manufacturer: | norelem |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
Download
Datový list norelem 27878–08 Skryté závěsy ze zinkového tlakového odlitku, oceli nebo nerezové oceli se zástrčkou, zkosení 23 mm
Detail zavřít

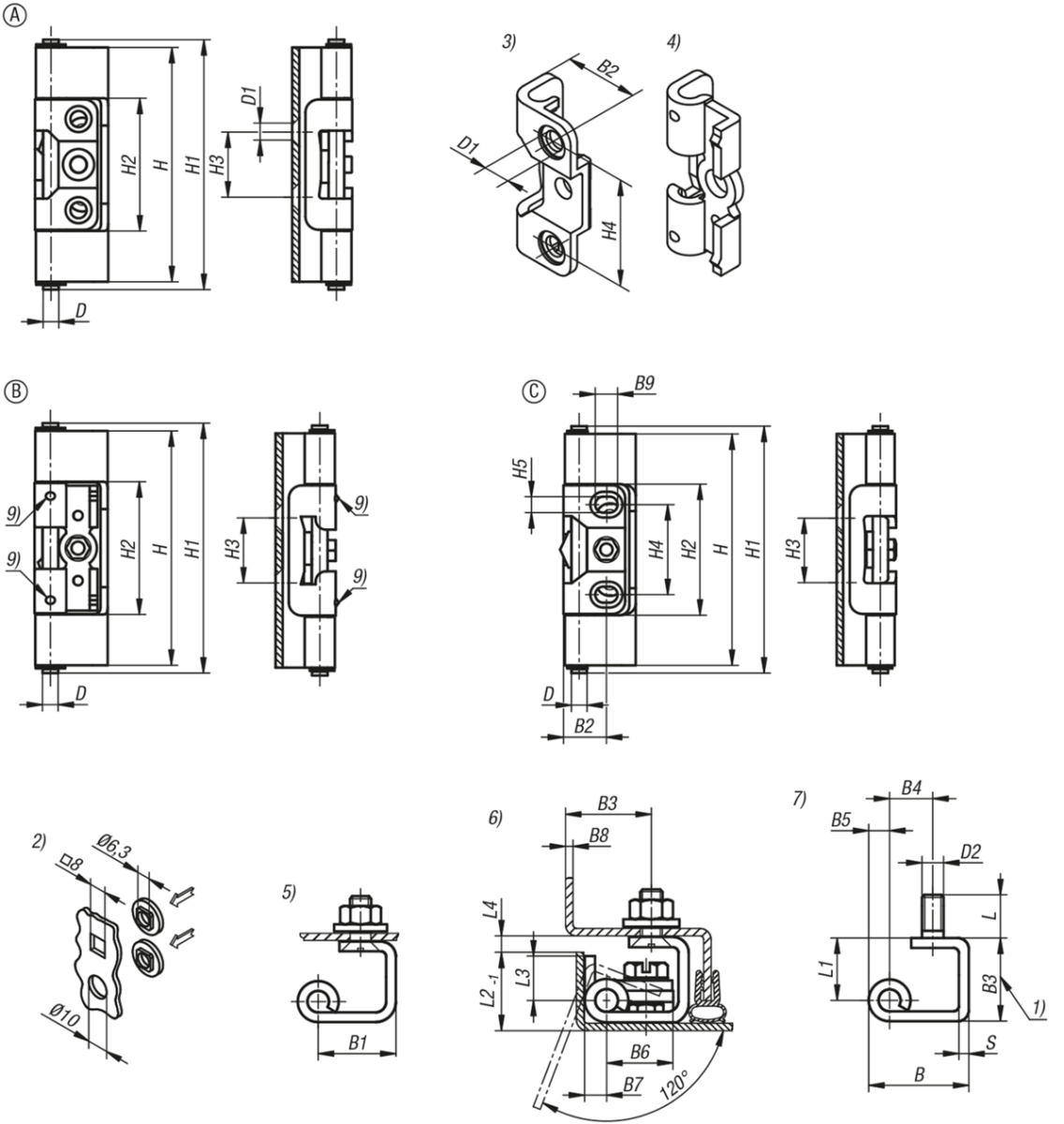

| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Type | Main material | Pin Material | Design / Version | Provedení. | Upevnění dveřní části | B | B1 | B2 | B3 | B4 | B5 | B6 | B7 | B8 | B9 | D | D2 | D1 | H | H1 | H2 | H3 | H4 | H5 | L | L1 | L2 | L3 | L4 | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27878-08-0120 | upon request | upon request | A | steel | steel | with countersunk hole for M6 | with groove incl. retaining washer | — | 28 | 22 | — | 23 | 12 | 5.55 | 17.9 | 6.1 | 3 | — | 6 | M6 | — | 90 | 96 | 50 | 25 | — | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-0121 | upon request | upon request | A | steel | steel | with countersunk hole for M6 | with groove incl. retaining washer | — | 28 | 22 | — | 23 | 12 | 5.55 | 17.9 | 6.1 | 3 | — | 6 | M6 | — | 90 | 96 | 50 | 25 | — | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-0221 | upon request | upon request | A | steel | steel | with threaded stud M6 | with groove incl. retaining washer | — | 28 | 22 | — | 23 | 12 | 5.55 | 17.9 | 6.1 | 3 | — | 6 | M6 | — | 90 | 96 | 50 | 25 | — | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-1120 | upon request | upon request | B | stainless steel A2 | stainless steel 1.4305 | with countersunk hole for M6 | with groove incl. retaining washer | — | 28 | 22 | — | 23 | 12 | 6 | 18.1 | 6.1 | 3 | — | 6 | M6 | — | 90 | 96 | 50 | 25 | — | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-1121 | upon request | upon request | B | stainless steel A2 | stainless steel 1.4305 | with countersunk hole for M6 | with groove incl. retaining washer | — | 28 | 22 | — | 23 | 12 | 6 | 18.1 | 6.1 | 3 | — | 6 | M6 | — | 90 | 96 | 50 | 25 | — | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-1221 | upon request | upon request | B | stainless steel A2 | stainless steel 1.4305 | with threaded stud M6 | with groove incl. retaining washer | — | 28 | 22 | — | 23 | 12 | 6 | 18.1 | 6.1 | 3 | — | 6 | M6 | — | 90 | 96 | 50 | 25 | — | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-2110 | upon request | upon request | C | stainless steel A4 | stainless steel 1.4305 | with countersunk hole for M6 | with groove incl. retaining washer | screw on | 28 | 22 | 16.7 | 23 | 12 | 6 | 17.9 | 6.1 | 3 | 8.7 | 6 | M6 | — | 90 | 96 | 50 | 25 | 35 | 6.2 | 12 | 17 | 21.1 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-2111 | upon request | upon request | C | stainless steel A4 | stainless steel 1.4305 | with countersunk hole for M6 | with groove incl. retaining washer | screw on | 28 | 22 | 16.7 | 23 | 12 | 6 | 17.9 | 6.1 | 3 | 8.7 | 6 | M6 | — | 90 | 96 | 50 | 25 | 35 | 6.2 | 12 | 17 | 21.1 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-2211 | upon request | upon request | C | stainless steel A4 | stainless steel 1.4305 | with threaded stud M6 | with groove incl. retaining washer | screw on | 28 | 22 | 16.7 | 23 | 12 | 6 | 17.9 | 6.1 | 3 | 8.7 | 6 | M6 | — | 90 | 96 | 50 | 25 | 35 | 6.2 | 12 | 17 | 21.1 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-3110 | upon request | upon request | A | zinc | steel | with countersunk hole for M6 | with groove incl. retaining washer | screw on | 28 | 22 | 16.7 | 23 | 12 | 5.55 | 17.9 | 6.1 | 3 | — | 6 | M6 | 6.2 | 90 | 96 | 50 | 25 | 35 | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-3111 | upon request | upon request | A | zinc | steel | with countersunk hole for M6 | with groove incl. retaining washer | screw on | 28 | 22 | 16.7 | 23 | 12 | 5.55 | 17.9 | 6.1 | 3 | — | 6 | M6 | 6.2 | 90 | 96 | 50 | 25 | 35 | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| 27878-08-3211 | upon request | upon request | A | zinc | steel | with threaded stud M6 | with groove incl. retaining washer | screw on | 28 | 22 | 16.7 | 23 | 12 | 5.55 | 17.9 | 6.1 | 3 | — | 6 | M6 | 6.2 | 90 | 96 | 50 | 25 | 35 | — | 12 | 17 | 21 | 11.9 | 4 | 2,5–2,7 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | |||||||||||||||||||||||||||||||||||
