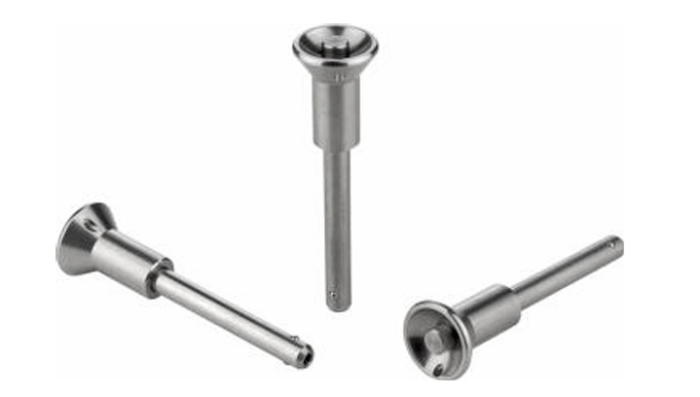

Ball lock pin with stainless steel mushroom grip
New
Product description
| Code: | K0791 |
|---|---|
| Manufacturer: | Kipp |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | typically approximately 7–10 days from the date of order, depending on the quantity and current stock availability in the central warehouse. Specific delivery dates are verified and confirmed by email on an individual order basis. If the goods are unavailable, the order may be cancelled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
zavřít
Download
k0791-datasheet-36418-fixa-n-epy-s-kuli-kou-s-chytem-h-ibovit-ho-tvaru-z-nerezov-oceli-cs.pdf Download
Data sheet Kipp K0791 Ball lock pin with stainless steel mushroom grip
Detail zavřít

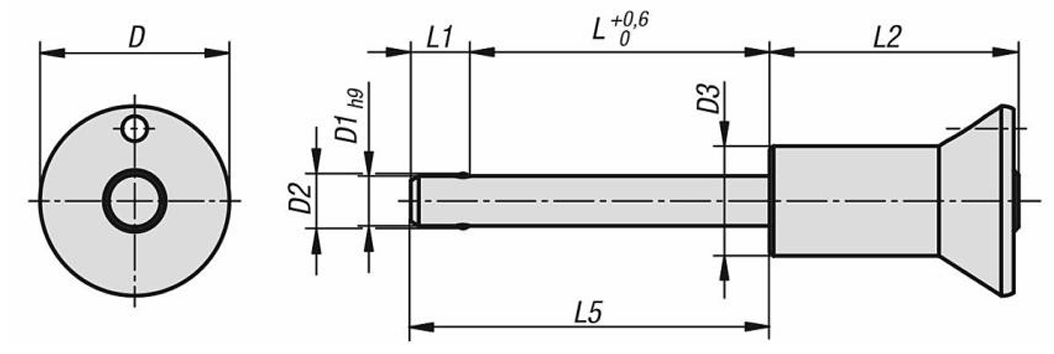

| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | D | D1 | D2 | D3 | L | L1 | L2 | L5 | Receiving hole H11 | Shearing force double shear max.kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0791.01905010 | 18,63 € | 22,54 € | 19 | 5 | 5.5 | 11 | 10 | 5.9 | 25 | 15.9 | 5 | 15 | ||
| K0791.01905015 | 18,63 € | 22,54 € | 19 | 5 | 5.5 | 11 | 15 | 5.9 | 25 | 20.9 | 5 | 15 | ||
| K0791.01905020 | 18,63 € | 22,54 € | 19 | 5 | 5.5 | 11 | 20 | 5.9 | 25 | 25.9 | 5 | 15 | ||
| K0791.01905025 | 18,63 € | 22,54 € | 19 | 5 | 5.5 | 11 | 25 | 5.9 | 25 | 30.9 | 5 | 15 | ||
| K0791.01905030 | 19,94 € | 24,13 € | 19 | 5 | 5.5 | 11 | 30 | 5.9 | 25 | 35.9 | 5 | 15 | ||
| K0791.01905035 | upon request | upon request | 19 | 5 | 5.5 | 11 | 35 | 5.9 | 25 | 40.9 | 5 | 15 | ||
| K0791.01905040 | upon request | upon request | 19 | 5 | 5.5 | 11 | 40 | 5.9 | 25 | 45.9 | 5 | 15 | ||
| K0791.01905045 | upon request | upon request | 19 | 5 | 5.5 | 11 | 45 | 5.9 | 25 | 50.9 | 5 | 15 | ||
| K0791.01905050 | upon request | upon request | 19 | 5 | 5.5 | 11 | 50 | 5.9 | 25 | 55.9 | 5 | 15 | ||
| K0791.01905060 | upon request | upon request | 19 | 5 | 5.5 | 11 | 60 | 5.9 | 25 | 65.9 | 5 | 15 | ||
| K0791.01905070 | upon request | upon request | 19 | 5 | 5.5 | 11 | 70 | 5.9 | 25 | 75.9 | 5 | 15 | ||
| K0791.01905080 | upon request | upon request | 19 | 5 | 5.5 | 11 | 80 | 5.9 | 25 | 85.9 | 5 | 15 | ||
| K0791.01906010 | 18,85 € | 22,81 € | 19 | 6 | 6.85 | 11 | 10 | 6.8 | 25 | 16.8 | 6 | 22 | ||
| K0791.01906015 | 18,85 € | 22,81 € | 19 | 6 | 6.85 | 11 | 15 | 6.8 | 25 | 21.8 | 6 | 22 | ||
| K0791.01906020 | 18,85 € | 22,81 € | 19 | 6 | 6.85 | 11 | 20 | 6.8 | 25 | 26.8 | 6 | 22 | ||
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | D | D1 | D2 | D3 | L | L1 | L2 | L5 | Receiving hole H11 | Shearing force double shear max.kN |
| K0791.01906025 | 18,85 € | 22,81 € | 19 | 6 | 6.85 | 11 | 25 | 6.8 | 25 | 31.8 | 6 | 22 | ||
| K0791.01906030 | 20,01 € | 24,21 € | 19 | 6 | 6.85 | 11 | 30 | 6.8 | 25 | 36.8 | 6 | 22 | ||
| K0791.01906035 | 20,01 € | 24,21 € | 19 | 6 | 6.85 | 11 | 35 | 6.8 | 25 | 41.8 | 6 | 22 | ||
| K0791.01906040 | 20,01 € | 24,21 € | 19 | 6 | 6.85 | 11 | 40 | 6.8 | 25 | 46.8 | 6 | 22 | ||
| K0791.01906045 | 20,01 € | 24,21 € | 19 | 6 | 6.85 | 11 | 45 | 6.8 | 25 | 51.8 | 6 | 22 | ||
| K0791.01906050 | 20,01 € | 24,21 € | 19 | 6 | 6.85 | 11 | 50 | 6.8 | 25 | 56.8 | 6 | 22 | ||
| K0791.01906060 | upon request | upon request | 19 | 6 | 6.85 | 11 | 60 | 6.8 | 25 | 66.8 | 6 | 22 | ||
| K0791.01906070 | 17,19 € | 20,80 € | 19 | 6 | 6.85 | 11 | 70 | 6.8 | 25 | 76.8 | 6 | 22 | ||
| K0791.01906080 | upon request | upon request | 19 | 6 | 6.85 | 11 | 80 | 6.8 | 25 | 86.8 | 6 | 22 | ||
| K0791.02508010 | upon request | upon request | 25 | 8 | 9.5 | 14 | 10 | 7.8 | 33 | 17.8 | 8 | 38 | ||
| K0791.02508015 | upon request | upon request | 25 | 8 | 9.5 | 14 | 15 | 7.8 | 33 | 22.8 | 8 | 38 | ||
| K0791.02508020 | 20,53 € | 24,84 € | 25 | 8 | 9.5 | 14 | 20 | 7.8 | 33 | 27.8 | 8 | 38 | ||
| K0791.02508025 | 20,53 € | 24,84 € | 25 | 8 | 9.5 | 14 | 25 | 7.8 | 33 | 32.8 | 8 | 38 | ||
| K0791.02508030 | 21,62 € | 26,16 € | 25 | 8 | 9.5 | 14 | 30 | 7.8 | 33 | 37.8 | 8 | 38 | ||
| K0791.02508035 | 21,62 € | 26,16 € | 25 | 8 | 9.5 | 14 | 35 | 7.8 | 33 | 42.8 | 8 | 38 | ||
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | D | D1 | D2 | D3 | L | L1 | L2 | L5 | Receiving hole H11 | Shearing force double shear max.kN |
| K0791.02508040 | 21,62 € | 26,16 € | 25 | 8 | 9.5 | 14 | 40 | 7.8 | 33 | 47.8 | 8 | 38 | ||
| K0791.02508045 | 21,62 € | 26,16 € | 25 | 8 | 9.5 | 14 | 45 | 7.8 | 33 | 52.8 | 8 | 38 | ||
| K0791.02508050 | 21,62 € | 26,16 € | 25 | 8 | 9.5 | 14 | 50 | 7.8 | 33 | 57.8 | 8 | 38 | ||
| K0791.02508060 | upon request | upon request | 25 | 8 | 9.5 | 14 | 60 | 7.8 | 33 | 67.8 | 8 | 38 | ||
| K0791.02508070 | upon request | upon request | 25 | 8 | 9.5 | 14 | 70 | 7.8 | 33 | 77.8 | 8 | 38 | ||
| K0791.02508080 | upon request | upon request | 25 | 8 | 9.5 | 14 | 80 | 7.8 | 33 | 87.8 | 8 | 38 | ||
| K0791.02508090 | upon request | upon request | 25 | 8 | 9.5 | 14 | 90 | 7.8 | 33 | 97.8 | 8 | 38 | ||
| K0791.02508100 | upon request | upon request | 25 | 8 | 9.5 | 14 | 100 | 7.8 | 33 | 107.8 | 8 | 38 | ||
| K0791.02510015 | upon request | upon request | 25 | 10 | 12 | 14 | 15 | 8.9 | 33 | 23.9 | 10 | 60 | ||
| K0791.02510020 | 24,25 € | 29,34 € | 25 | 10 | 12 | 14 | 20 | 8.9 | 33 | 28.9 | 10 | 60 | ||
| K0791.02510025 | 24,25 € | 29,34 € | 25 | 10 | 12 | 14 | 25 | 8.9 | 33 | 33.9 | 10 | 60 | ||
| K0791.02510030 | 25,46 € | 30,81 € | 25 | 10 | 12 | 14 | 30 | 8.9 | 33 | 38.9 | 10 | 60 | ||
| K0791.02510035 | 25,46 € | 30,81 € | 25 | 10 | 12 | 14 | 35 | 8.9 | 33 | 43.9 | 10 | 60 | ||
| K0791.02510040 | 25,46 € | 30,81 € | 25 | 10 | 12 | 14 | 40 | 8.9 | 33 | 48.9 | 10 | 60 | ||
| K0791.02510045 | 25,46 € | 30,81 € | 25 | 10 | 12 | 14 | 45 | 8.9 | 33 | 53.9 | 10 | 60 | ||
| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | D | D1 | D2 | D3 | L | L1 | L2 | L5 | Receiving hole H11 | Shearing force double shear max.kN |
| K0791.02510050 | 25,46 € | 30,81 € | 25 | 10 | 12 | 14 | 50 | 8.9 | 33 | 58.9 | 10 | 60 | ||
| K0791.02510060 | 26,92 € | 32,57 € | 25 | 10 | 12 | 14 | 60 | 8.9 | 33 | 68.9 | 10 | 60 | ||
| K0791.02510070 | upon request | upon request | 25 | 10 | 12 | 14 | 70 | 8.9 | 33 | 78.9 | 10 | 60 | ||
| K0791.02510080 | upon request | upon request | 25 | 10 | 12 | 14 | 80 | 8.9 | 33 | 88.9 | 10 | 60 | ||
| K0791.02510090 | upon request | upon request | 25 | 10 | 12 | 14 | 90 | 8.9 | 33 | 98.9 | 10 | 60 | ||
| K0791.02510100 | upon request | upon request | 25 | 10 | 12 | 14 | 100 | 8.9 | 33 | 108.9 | 10 | 60 | ||
| K0791.02510110 | upon request | upon request | 25 | 10 | 12 | 14 | 110 | 8.9 | 33 | 118.9 | 10 | 60 | ||
| K0791.02510120 | upon request | upon request | 25 | 10 | 12 | 14 | 120 | 8.9 | 33 | 128.9 | 10 | 60 | ||
| K0791.03512020 | upon request | upon request | 35 | 12 | 14.5 | 22 | 20 | 9.9 | 39.5 | 29.9 | 12 | 86 | ||
| K0791.03512025 | 28,30 € | 34,24 € | 35 | 12 | 14.5 | 22 | 25 | 9.9 | 39.5 | 34.9 | 12 | 86 | ||
| K0791.03512030 | 29,69 € | 35,92 € | 35 | 12 | 14.5 | 22 | 30 | 9.9 | 39.5 | 39.9 | 12 | 86 | ||
| K0791.03512035 | 29,69 € | 35,92 € | 35 | 12 | 14.5 | 22 | 35 | 9.9 | 39.5 | 44.9 | 12 | 86 | ||
| K0791.03512040 | 29,69 € | 35,92 € | 35 | 12 | 14.5 | 22 | 40 | 9.9 | 39.5 | 49.9 | 12 | 86 | ||
| K0791.03512045 | 29,69 € | 35,92 € | 35 | 12 | 14.5 | 22 | 45 | 9.9 | 39.5 | 54.9 | 12 | 86 | ||
| K0791.03512050 | 29,69 € | 35,92 € | 35 | 12 | 14.5 | 22 | 50 | 9.9 | 39.5 | 59.9 | 12 | 86 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||||
