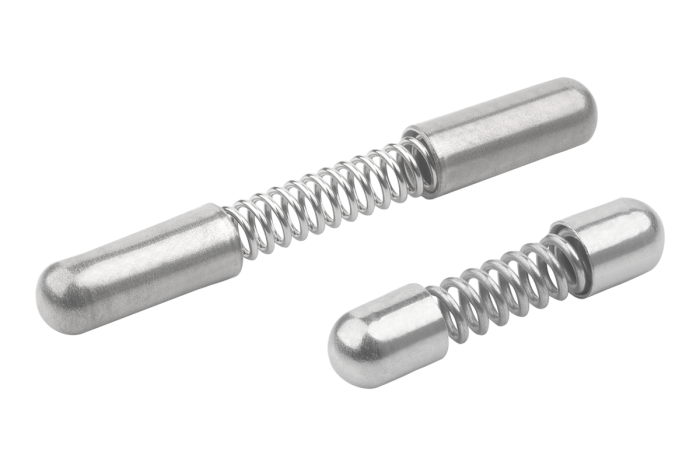

Spring sleeves, double, steel or stainless steel
Product description
| Code: | K2537 |
|---|---|
| Manufacturer: | Kipp |
| Prices: | are listed at the bottom of the page in the product variant table, or upon request via the form below. |
| Delivery date: | normally about 7 to 10 days from ordering, depending on quantity and current stock. We verify and confirm specific delivery dates by email, individually according to the order. In case of unavailability of goods, the order can be canceled. More information. |
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently. |
zavřít
Download
Datový list Kipp K2537 Pružinové pouzdro z dvojité oceli nebo nerezové oceli
Detail zavřít

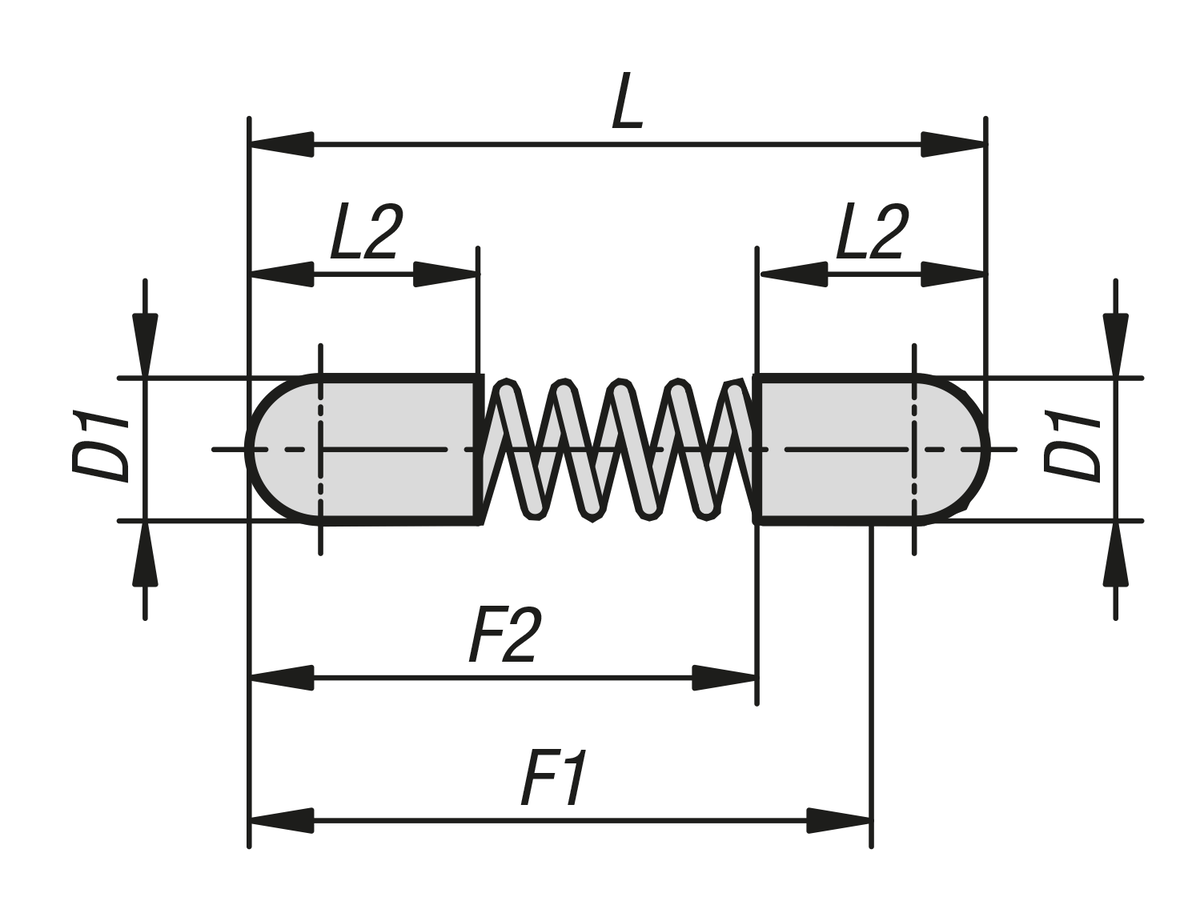

| Order code | Basic price excluding VAT | Final price incl. VAT | Order | CAD | Materiál základní těleso | Design / Version | D1 | L | L at F1 | L at F2 | L2 | Spring force start F1 approx. N | Spring force end F2 approx. N | Tuhost pružiny N/mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K2537.113416 | upon request | upon request | ocel | A | 3.45 | 16 | 14.5 | 11 | 4.4 | 4.3 | 14.3 | 2.9 | ||
| K2537.123024 | 0,63 € | 0,76 € | nerezová ocel | A | 3 | 24 | 22 | 20 | 8 | 1.4 | 2.8 | 0.7 | ||
| K2537.123625 | upon request | upon request | nerezová ocel | A | 3.62 | 25.5 | 20 | 18.7 | 9 | 22.3 | 27.4 | 3.8 | ||
| The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you. | ||||||||||||||
