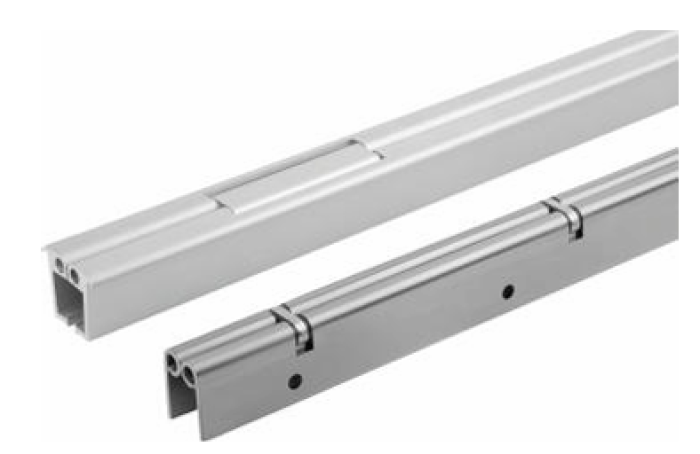

Piano hinge with double joint, stainless steel or aluminium

New
Piano hinge with double joint, stainless steel or aluminium

Product description

Code: K2577
Manufacturer: Kipp
Prices: are listed at the bottom of the page in the product variant table, or upon request via the form below.
Delivery date:

typically approximately 7–10 days from the date of order, depending on the quantity and current stock availability in the central warehouse. Specific delivery dates are verified and confirmed by email on an individual order basis. If the goods are unavailable, the order may be cancelled. More information.
The shipping cost for consignments longer than 2 m is calculated based on actual values and, if necessary, adjusted subsequently.
zavřít

3D modely




Piano hinge with double joint, stainless steel or aluminium | K2577

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.


Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE
zavřít

Poptat cenu
Dear customers, we inform you in accordance with EU regulation that the information provided is not used or stored by us in any way and is only used to process this request. More information HERE

Download

Catalogue sheet Kipp K2577 Piano hinge with double joint, stainless steel or aluminium Catalogue sheet Kipp K2577 Piano hinge with double joint, stainless steel or aluminium

Detail zavřít

Clear filter

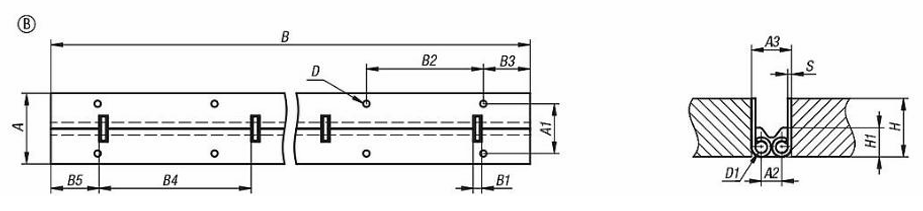

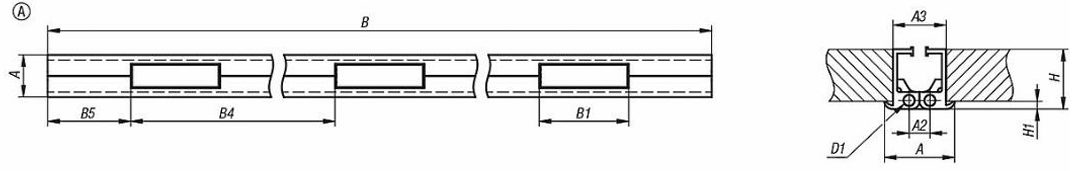

Order code Basic price excluding VAT Final price incl. VAT Order CAD Design / Version Definice provedení Main material Povrchová úprava tělesa Hlavní barva B A A1 A2 A3 B1 B2 B3 B4 B5 D D1‎ H H1
K2577.02332000 upon request upon request Poptat cenu3DAnevrtanéhliníkeloxovanébezbarvé200033–9.52570––30065–5283.6
K2577.02332500 upon request upon request Poptat cenu3DAnevrtanéhliníkeloxovanébezbarvé250033–9.52570––30015–5283.6
K2577.11600480 upon request upon request Poptat cenu3DBvrtanénerezová ocel A2bez povrchové úpravy / lesklé–48060.542,510.520.571004013042.55,562515
K2577.11602495 upon request upon request Poptat cenu3DBvrtanénerezová ocel A3bez povrchové úpravy / lesklé–249560.542,510.520.5710047,513073.65,562515
The prices listed are basic for orders of 1 piece or more. For larger quantities, we will prepare an individual price quote for you.

❱
